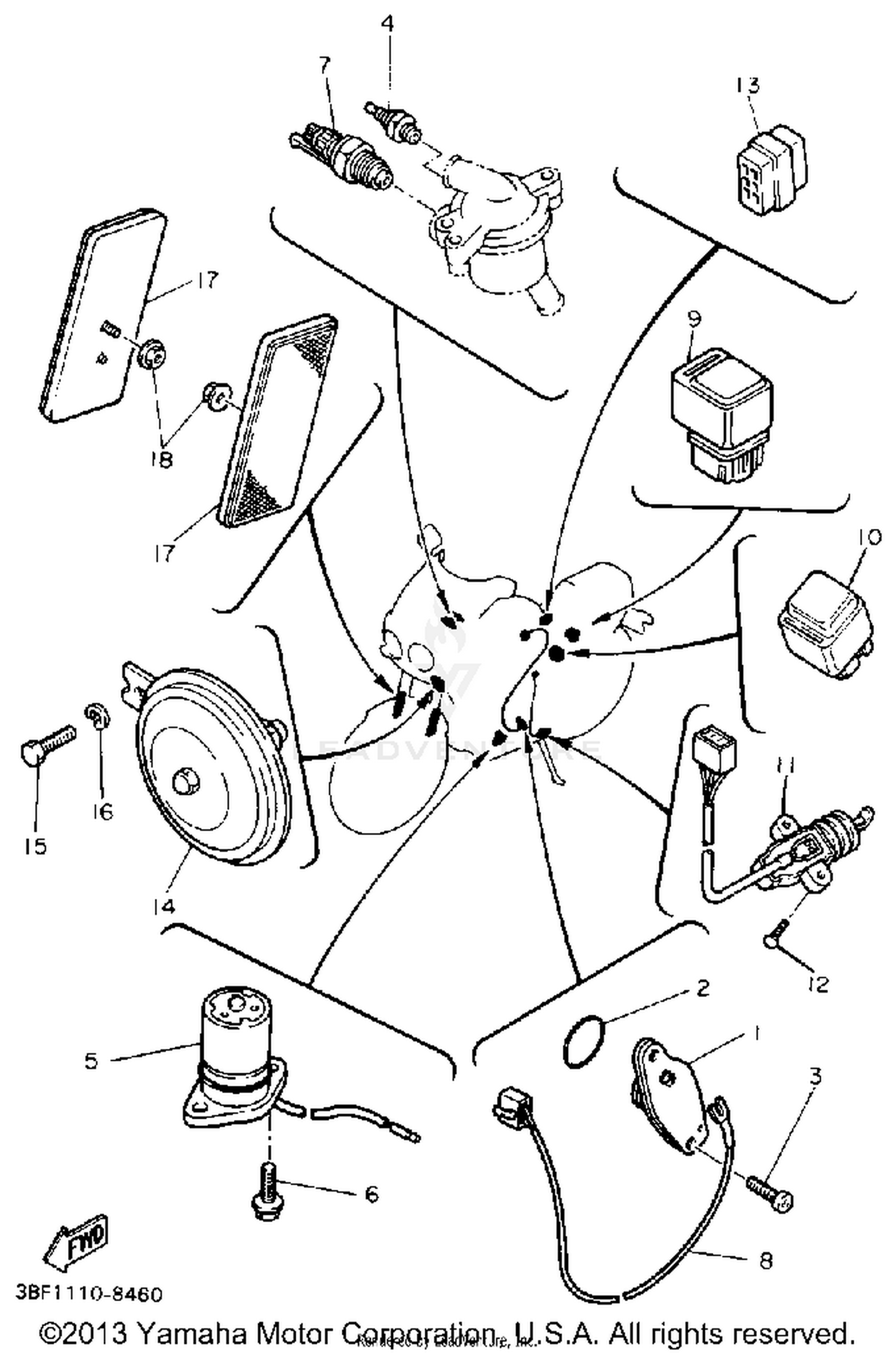

Electrical 2 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NEUTRAL SWITCH ASSY
1AE-82540-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
O-RING
93210-29196-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW, PAN HEAD
98503-06014-00
Superseded by 98507-06014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
THERMO UNIT
11H-83591-00-00
|
$100.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
OIL LEVEL GAUGE ASSEMBLY
1WG-85720-00-00
|
$280.99 | ||
|
Unavailable |
|||
|
#6
BOLT, FLANGE
95026-06016-00
Superseded by 90105-06696-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
THERMO SWITCH ASSY
2EL-82560-00-00
Superseded by 3LN-82560-01-00
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
WIRE, LEAD
1WG-82541-00-00
|
$15.99 | ||
|
Unavailable |
|||
|
#9
RELAY ASSY
25G-81950-01-00
Superseded by 25G-81950-02-00
|
$45.99 | ||
|
Unavailable |
|||
|
#10
RELAY ASSY
4U8-81950-02-00
Superseded by 4U8-81950-03-00
|
$79.99 | ||
|
Unavailable |
|||
|
#11
SWITCH, SIDE STAND
3FH-82566-00-00
|
$106.99 | ||
|
Unavailable |
|||
|
#12
SCREW, FLAT HEAD
90152-05016-00
Superseded by 98707-05014-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
FLASHER RELAY ASSY
41R-83350-71-00
Superseded by 41R-83350-72-00
|
$173.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
HORN
2KR-83371-00-00
Superseded by 4LR-83371-11-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT(3JP)
97026-06010-00
Superseded by 97017-06010-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#17
REFLECTOR ASSY
11H-85110-01-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, FLANGE
95701-05500-00
Superseded by 95707-05500-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
