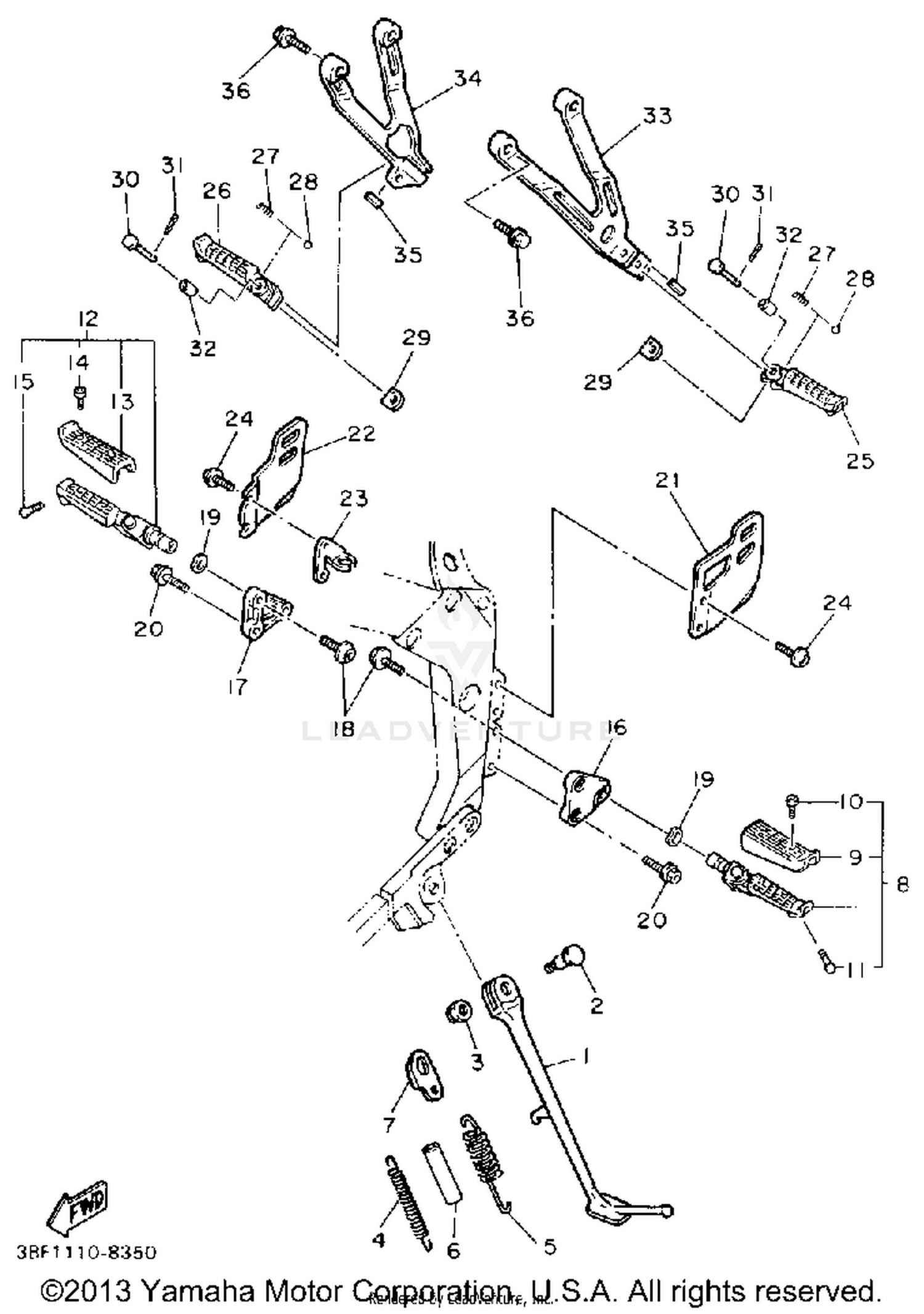

Stand-footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STAND, SIDE
2KT-27311-00-00
Superseded by 4BP-27311-00-00
|
$115.99 | ||
|
Unavailable |
|||
|
#2
BOLT
90109-10474-00
Superseded by 90109-104E6-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT, SELF-LOCKING
90185-10037-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, TENSION
90506-18224-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, TENSION
90506-26225-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
GUIDE, SIDE STAND
1TX-27351-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
LINK, SIDE STAND
2KT-27315-00-00
Superseded by 3VD-27315-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
FRT FOOTREST ASSEMBLY LASSEMBLY
1WG-27410-00-00
|
$177.99 | ||
|
Unavailable |
|||
|
#9
COVER, FOOTREST
2GH-27413-00-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, PAN HEAD
90157-05079-00
Superseded by 98507-05014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
90109-082A4-00
Superseded by 90109-08224-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#12
FRT FOOTREST ASSEMBLY RASSEMBLY
1WG-27420-00-00
|
$190.99 | ||
|
Unavailable |
|||
|
#13
COVER, FOOTREST
2GH-27413-00-00
|
$43.99 | ||
|
Unavailable |
|||
|
#14
SCREW, PAN HEAD
90157-05079-00
Superseded by 98507-05014-00
|
$7.49 | ||
|
Unavailable |
|||
|
#15
BOLT
90109-082A4-00
Superseded by 90109-08224-00
|
$2.40 | ||
|
Unavailable |
|||
|
#16
BRACKET 2
46X-27442-01-00
Superseded by 3HE-27442-00-00
|
$82.99 | ||
|
Unavailable |
|||
|
#17
BRACKET 3
46X-27443-01-00
Superseded by 3HE-27443-00-00
|
$99.99 | ||
|
Unavailable |
|||
|
#18
BOLT,HEX. SOCKET BUT
90109-103A9-00
Superseded by 90111-10017-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, WAVE
90206-17084-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, HEXAGON SOCKET HEAD
90110-08066-00
Superseded by 90110-08199-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
PLATE 1
1WG-27445-01-00
|
$108.99 | ||
|
Unavailable |
|||
|
#22
PLATE 2
1WG-27446-01-00
|
$115.99 | ||
|
Unavailable |
|||
|
#23
BRACKET, FOOTREST 2
1WG-27425-00-00
|
$3.50 | ||
|
Unavailable |
|||
|
#24
SCREW
90149-06236-00
Superseded by 90149-06302-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
FOOTREST, REAR 1
1HX-27431-00-00
Superseded by 3VR-27431-02-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
FOOTREST, REAR 2
1HX-27441-00-00
Superseded by 3VR-27441-02-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
SPRING, COMPRESSION
90501-12743-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#28
BALL
93501-04011-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, SPECIAL
1HX-27437-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
PIN, CLEVIS
91701-06040-00
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#31
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
COLLAR
90387-064H8-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
BRACKET 4
1WG-2741L-00-00
|
$93.99 | ||
|
Unavailable |
|||
|
#34
BRACKET 5
1WG-2742L-00-00
|
$106.99 | ||
|
Unavailable |
|||
|
#35
PLATE, DAMPER
1HX-27415-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT, FLANGE
95811-08035-00
Superseded by 95817-08035-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
