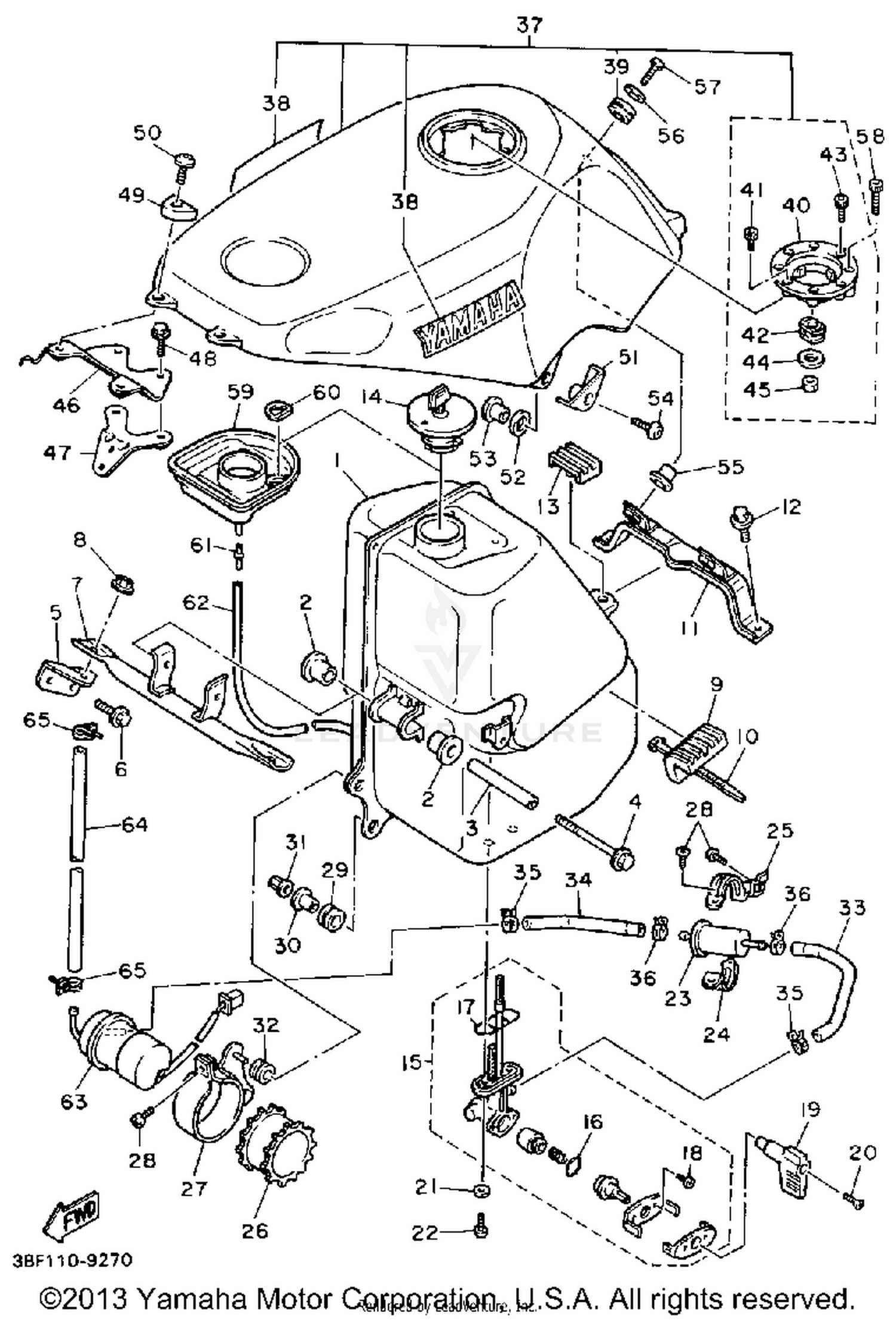

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK
1WG-24110-01-00
|
$382.99 | ||
|
Unavailable |
|||
|
#2
DAMPER, LOCATING 1
1HX-24181-00-00
|
$7.99 | ||
|
Unavailable |
|||
|
#3
COLLAR
90387-06380-00
|
$4.00 | ||
|
Unavailable |
|||
|
#4
BOLT, FLANGE
95811-06080-00
Superseded by 95817-06080-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#5
BRACKET, TANK FITTING
3EN-21346-00-00
|
$11.49 | ||
|
Unavailable |
|||
|
#6
BOLT, FLANGE
95811-06016-00
Superseded by 95817-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRACKET, TANK FITTING
1WG-21345-00-00
|
$45.99 | ||
|
Unavailable |
|||
|
#8
NUT
90179-08410-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
DAMPER, LOCATING 2
1HX-24182-00-00
|
$12.49 | ||
|
Unavailable |
|||
|
#10
BAND
90465-13169-00
Superseded by 1UA-82591-00-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#11
BRACKET, TANK FITTING
1WG-21348-00-00
|
$32.99 | ||
|
Unavailable |
|||
|
#12
BOLT, FLANGE
95811-06016-00
Superseded by 95817-06016-00
|
$2.60 | ||
|
Unavailable |
|||
|
#13
DAMPER, LOCATING 5
1WG-24185-00-00
|
$11.99 | ||
|
Unavailable |
|||
|
#14
CAP ASSEMBLY
1WG-24602-00-00
|
$189.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
FUEL COCK ASSEMBLY 1
1WG-24500-00-00
|
$77.99 | ||
|
Unavailable |
|||
|
#16
SEAL, COCK
4X8-24534-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
O-RING
4X8-24512-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, PAN HEAD
98580-03008-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#19
LEVER, COCK
1WG-24524-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, FLAT HEAD
98606-04016-00
Superseded by 98707-04016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLATE
90202-05187-00
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW
90149-06011-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
FILTER ASSY
1FK-24560-00-00
Superseded by 1FK-24560-10-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BAND, FILTER
26H-24568-00-00
|
$14.99 | ||
|
Unavailable |
|||
|
#25
BRACKET, FILTER
1WG-24566-00-00
|
$15.99 | ||
|
Unavailable |
|||
|
#26
BAND 1
1WG-24398-01-00
|
$16.99 | ||
|
Unavailable |
|||
|
#27
BRACKET, FUEL PUMP
1WG-24491-01-00
Superseded by 3HE-24491-00-00
|
$38.99 | ||
|
Unavailable |
|||
|
#28
SCREW, BIND
98906-05014-00
Superseded by 98907-05014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
GROMMET
90480-14229-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
COLLAR
90387-07391-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
NUT
90179-06500-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
GROMMET
90480-11454-00
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#33
PIPE, FUEL 1
1WG-24311-00-00
|
$14.99 | ||
|
Unavailable |
|||
|
#34
PIPE 2
1WG-24312-00-00
|
$8.99 | ||
|
Unavailable |
|||
|
#35
CLIP, SCISSOR
90467-10091-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
CLIP
90467-11044-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
COVER, TOP (FUEL TANK)
1WG-Y217F-30-2X
|
$532.99 | ||
|
Unavailable |
|||
|
#38
EMBLEM, YAMAHA
99226-00040-00
Superseded by 99226-00160-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
GROMMET
90480-18495-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
PLATE, CAP
1WG-24614-00-00
|
$57.99 | ||
|
Unavailable |
|||
|
#41
BOLT, HEXAGON SOCKET HEAD
90110-06134-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
DAMPER
1WG-24665-00-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#43
BOLT, HEXAGON SOCKET HEAD
90110-06133-00
|
$2.30 | ||
|
Unavailable |
|||
|
#44
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#45
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#46
STAY
3FH-24364-00-00
|
$58.99 | ||
|
Unavailable |
|||
|
#47
STAY, FUEL TANK 2
3BF-24158-00-00
|
$94.99 | ||
|
Unavailable |
|||
|
#48
BOLT, FLANGE
95811-06012-00
Superseded by 95817-06012-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#49
DAMPER, LOCATING 3
1WG-24183-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#50
SCREW, BINDING
90154-06040-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#51
DAMPER, LOCATING 4
1WG-24184-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#52
TRIM, COVER PANEL
1WG-2414H-00-00
|
$3.05 | ||
|
Unavailable |
|||
|
#53
COLLAR
90387-112R6-00
|
$7.49 | ||
|
Unavailable |
|||
|
#54
SCREW, SPECL SHAPE
90149-06246-00
|
$5.00 | ||
|
Unavailable |
|||
|
#55
COLLAR
90387-112R6-00
|
$7.49 | ||
|
Unavailable |
|||
|
#56
SCREW, PAN HEAD
98511-06025-00
Superseded by 98517-06025-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#57
BOLT, HEX SKT HEADSOCKET HEAD
90110-06132-00
|
$2.75 | ||
|
Unavailable |
|||
|
#58
COVER, FILLER
1WG-2414A-00-00
|
$30.99 | ||
|
Unavailable |
|||
|
#59
WASHER, RING
1WG-24622-00-00
|
$2.95 | ||
|
Unavailable |
|||
|
#60
SPACER
90560-03220-00
|
$9.99 | ||
|
Unavailable |
|||
|
#61
HOSE (L310)
90445-070F1-00
Superseded by 90445-072G8-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#62
FUEL PUMP COMP.
1WG-13907-00-00
|
$442.99 | ||
|
Unavailable |
|||
|
#63
HOSE (L220)
90445-126E7-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#64
CLAMP,HOSE
90460-12256-00
Superseded by 90450-12002-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
