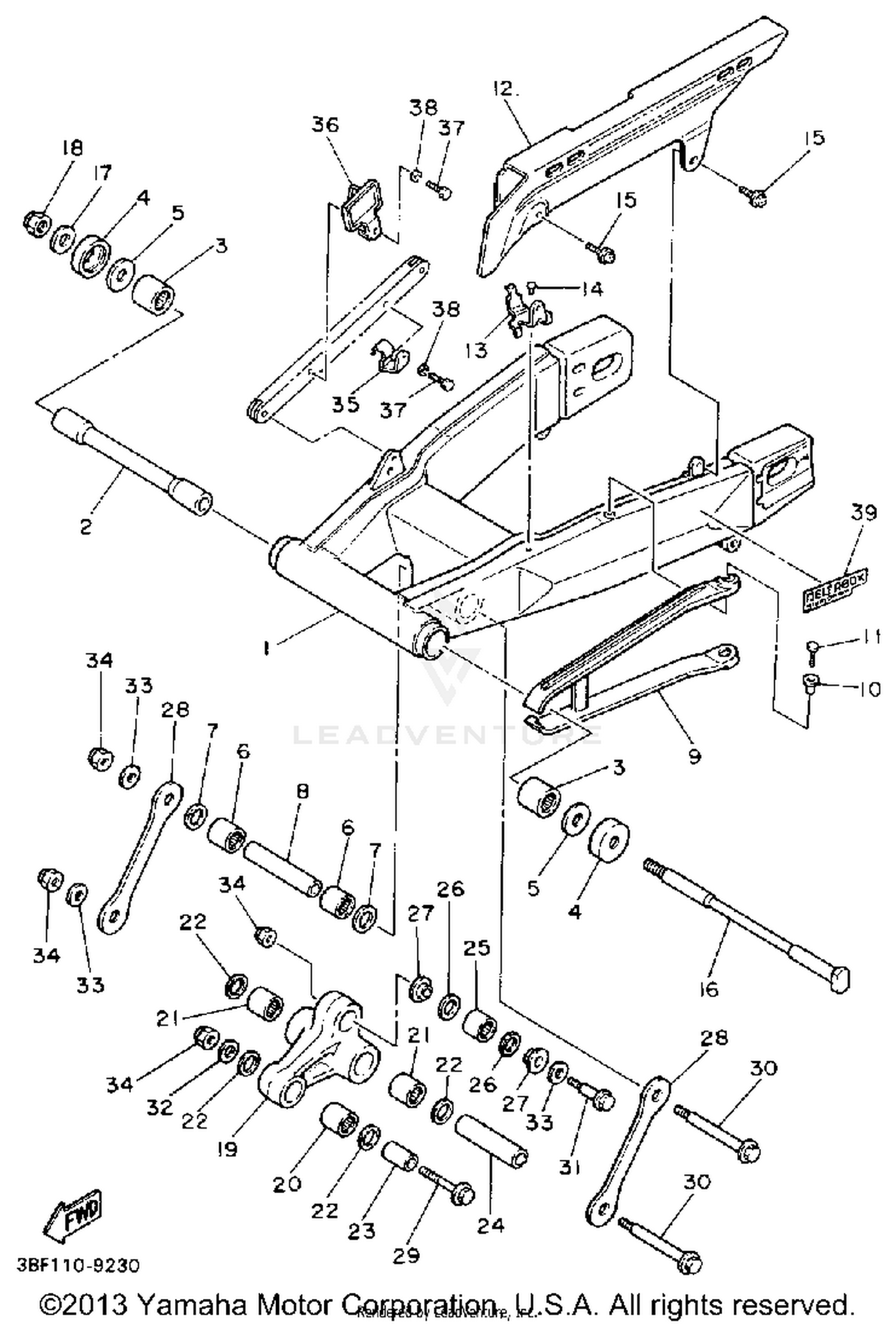

Swing Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR ARM
3EN-22110-50-00
|
$857.99 | ||
|
Unavailable |
|||
|
#2
BUSH
33M-22184-00-00
|
$77.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING
93320-32403-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER, THRUST 2
47X-22129-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE
90201-161J2-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#6
BEARING
93317-21746-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
OIL SEAL (SDO 17-24-4)
93109-17048-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR
90387-122R5-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
PROTECTOR CHAIN
3EN-22147-50-00
|
$105.99 | ||
|
Unavailable |
|||
|
#10
COLLAR
90387-06681-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW,PAN HEAD
98506-06016-00
Superseded by 98507-06016-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#12
CASE, CHAIN
3BF-22311-50-00
|
$40.99 | ||
|
Unavailable |
|||
|
#13
STAY, CHAIN CASE 1
3EN-22321-50-00
|
$51.99 | ||
|
Unavailable |
|||
|
#14
RIVET, BLIND
90267-48117-00
|
$5.99 | ||
|
Unavailable |
|||
|
#15
SCREW, WITH WASHER
90159-06058-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
SHAFT, PIVOT
46X-22141-00-00
|
$88.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLATE
90201-14740-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, SELF-LOCKING
90185-14070-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
ARM, RELAY
1WG-2217A-00-00
|
$261.99 | ||
|
Unavailable |
|||
|
#20
BEARING
93317-31701-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BEARING
93317-21746-00
|
$31.99 | ||
|
Unavailable |
|||
|
#22
OIL SEAL (SDO 17-24-4)
93109-17048-00
|
$5.49 | ||
|
Unavailable |
|||
|
#23
COLLAR
90387-102R4-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
COLLAR
90387-122R5-00
|
$18.99 | ||
|
Unavailable |
|||
|
#25
BEARING
93399-99919-00
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
OIL SEAL
93101-16131-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
COLLAR
90387-124W2-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
ARM 1
1WG-2217M-00-00
|
$33.99 | ||
|
Unavailable |
|||
|
#29
BOLT, FLANGE
90105-10376-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT
90101-10658-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT
90101-10659-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, PLATE
90201-10774-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER, PLATE
90201-101J1-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
NUT, U
95611-10100-00
Superseded by 95614-10100-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
HOLDER, BRKE HOSE 2HOSE 2
3EN-25876-50-00
|
$9.99 | ||
|
Unavailable |
|||
|
#36
HOLDER, BRAKE HOSE
3EN-25886-50-00
|
$22.99 | ||
|
Unavailable |
|||
|
#37
BOLT(3JP)
97011-06010-00
Superseded by 97017-06010-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#38
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#39
EMBLEM, REAR ARM
3EN-2218A-51-00
|
$8.49 | ||
|
Unavailable |
|||
