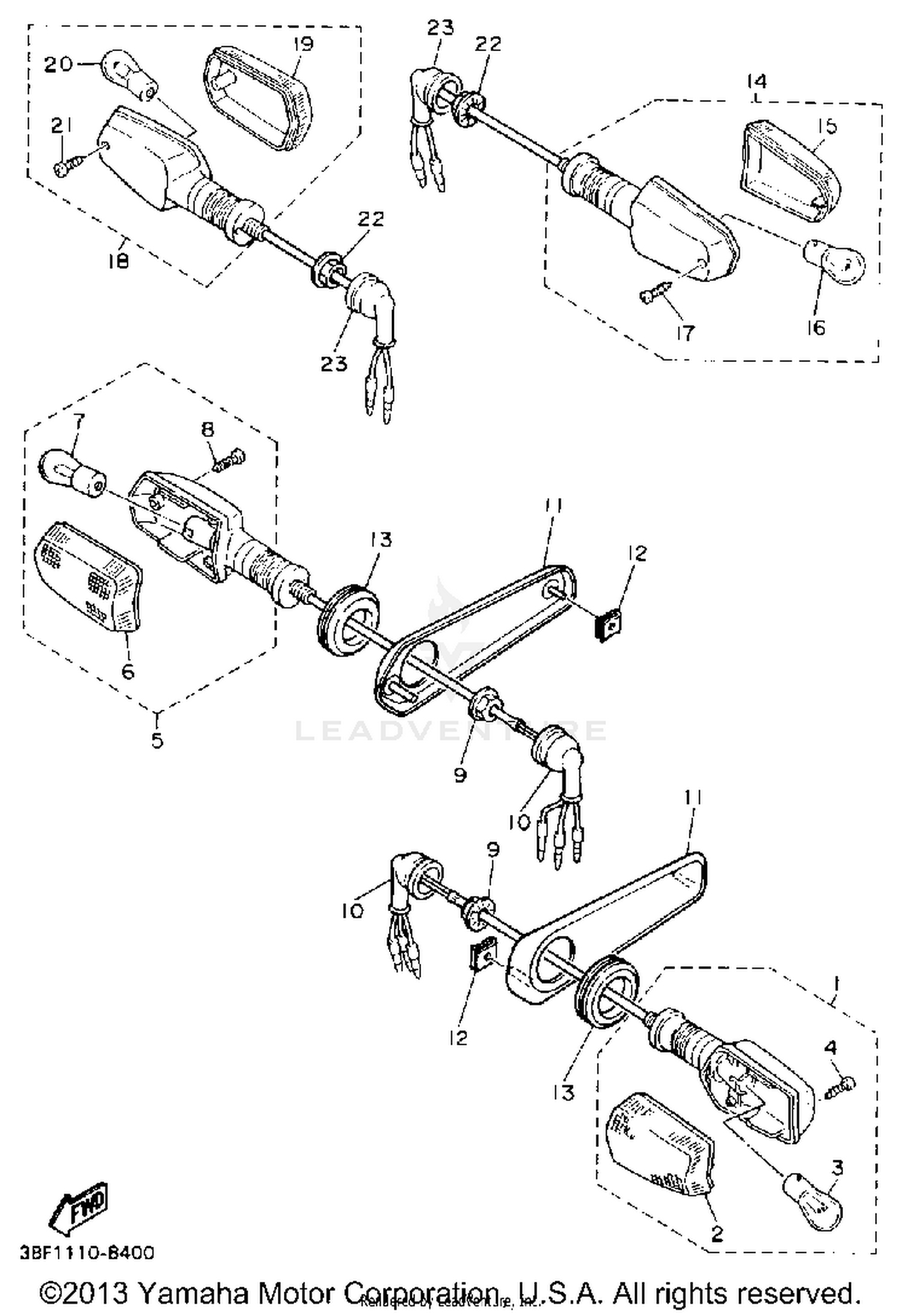

Turnsignal Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FLASHER LIGHT ASSY 1
1UF-83310-00-00
|
$129.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
LENS, FLASHER
51L-83332-01-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BULB (12V-27/8W)
256-84714-61-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, TAPPING
97706-40620-00
Superseded by 97707-40520-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
FRONT FLASHER LIGHT ASSY 2
1UF-83320-00-00
|
$129.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
LENS, FLASHER 2
51L-83342-01-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BULB (12V-27/8W)
256-84714-61-00
|
$11.49 | ||
|
Unavailable |
|||
|
#8
SCREW, TAPPING
97706-40620-00
Superseded by 97707-40520-00
|
$8.49 | ||
|
Unavailable |
|||
|
#9
NUT, FLANGE
95701-12500-00
Superseded by 90179-12588-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAP
46X-83365-00-00
|
$4.20 | ||
|
Unavailable |
|||
|
#11
COVER
2MA-28365-41-00
|
$28.99 | ||
|
Unavailable |
|||
|
#12
NUT, SPRING
90183-04045-00
|
$0.35 | ||
|
Available to order. Add to View Price |
|||
|
#13
GROMMET
90480-35526-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#14
REAR FLASHER LIGHT ASSY 1
1UF-83330-00-00
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
LENS, FLASHER 2
51L-83342-01-00
|
$11.49 | ||
|
Unavailable |
|||
|
#16
BULB (12V-32CP)
256-83311-70-XX
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW, TAPPING
97706-40620-00
Superseded by 97707-40520-00
|
$8.49 | ||
|
Unavailable |
|||
|
#18
REAR FLASHER LIGHT ASSY 2
1UF-83340-00-00
|
$128.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
LENS, FLASHER
51L-83332-01-00
|
$11.49 | ||
|
Unavailable |
|||
|
#20
BULB (12V-32CP)
256-83311-70-XX
|
$2.35 | ||
|
Unavailable |
|||
|
#21
SCREW, TAPPING
97706-40620-00
Superseded by 97707-40520-00
|
$8.49 | ||
|
Unavailable |
|||
|
#22
NUT, FLANGE
95701-12500-00
Superseded by 90179-12588-00
|
$6.49 | ||
|
Unavailable |
|||
|
#23
CAP
46X-83365-00-00
|
$4.20 | ||
|
Unavailable |
|||
