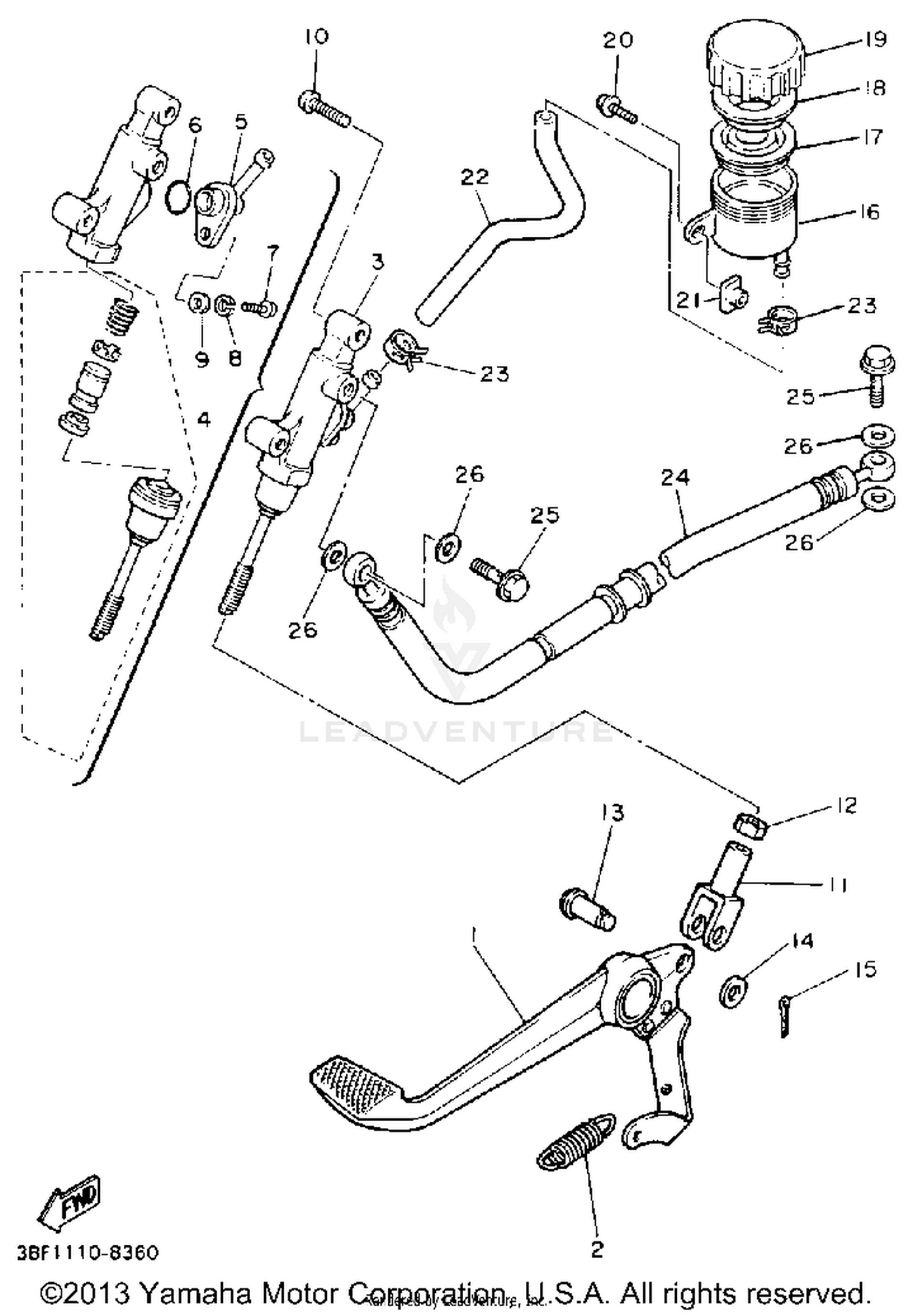

Rear Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, BRAKE
1WG-27200-00-00
|
$108.99 | ||
|
Unavailable |
|||
|
#2
SPRING, TENSION
90506-20377-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
MASTER CYLINDER ASSEMBLY
1WG-25850-50-00
|
$282.99 | ||
|
Unavailable |
|||
|
#4
CYLINDER KIT, MASTER
1WG-W0042-50-00
|
$88.99 | ||
|
Unavailable |
|||
|
#5
JOINT
36Y-2582A-50-00
Superseded by 29L-2582A-50-00
|
$76.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
O-RING
93210-15620-00
Superseded by 93210-15566-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW,PANHEAD
98511-04012-00
Superseded by 98517-04012-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLATE
92901-04600-00
Superseded by 92990-04600-00
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, BUTTON HEAD
92016-08030-00
Superseded by 92017-08030-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
JOINT
31A-27222-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT
95303-08700-00
Superseded by 95380-08700-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN, CLEVIS
90240-08013-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
90201-08083-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
TANK, RESERVOIR
31A-25894-01-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
DIAPHRAGM, RESERVOIR
360-25854-00-00
Superseded by 360-25854-01-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BUSH, DIAPHRAGM
2GU-25855-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
CAP, RESERVOIR
2KF-25852-50-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, WITH WASHER
90159-06056-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
PLATE
31A-14477-00-00
Superseded by 31A-14477-10-00
|
$1.55 | ||
|
Unavailable |
|||
|
#22
HOSE, RESERVOIR
1WG-25895-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#23
CLIP
90467-14057-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
BRAKE HOSE SET(3EN)
3EN-25872-70-00
Superseded by 99999-02507-00
|
$67.99 | ||
|
Unavailable |
|||
|
#25
BOLT, UNION
90401-10034-00
Superseded by 90401-10159-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, PLATE
90201-10118-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
