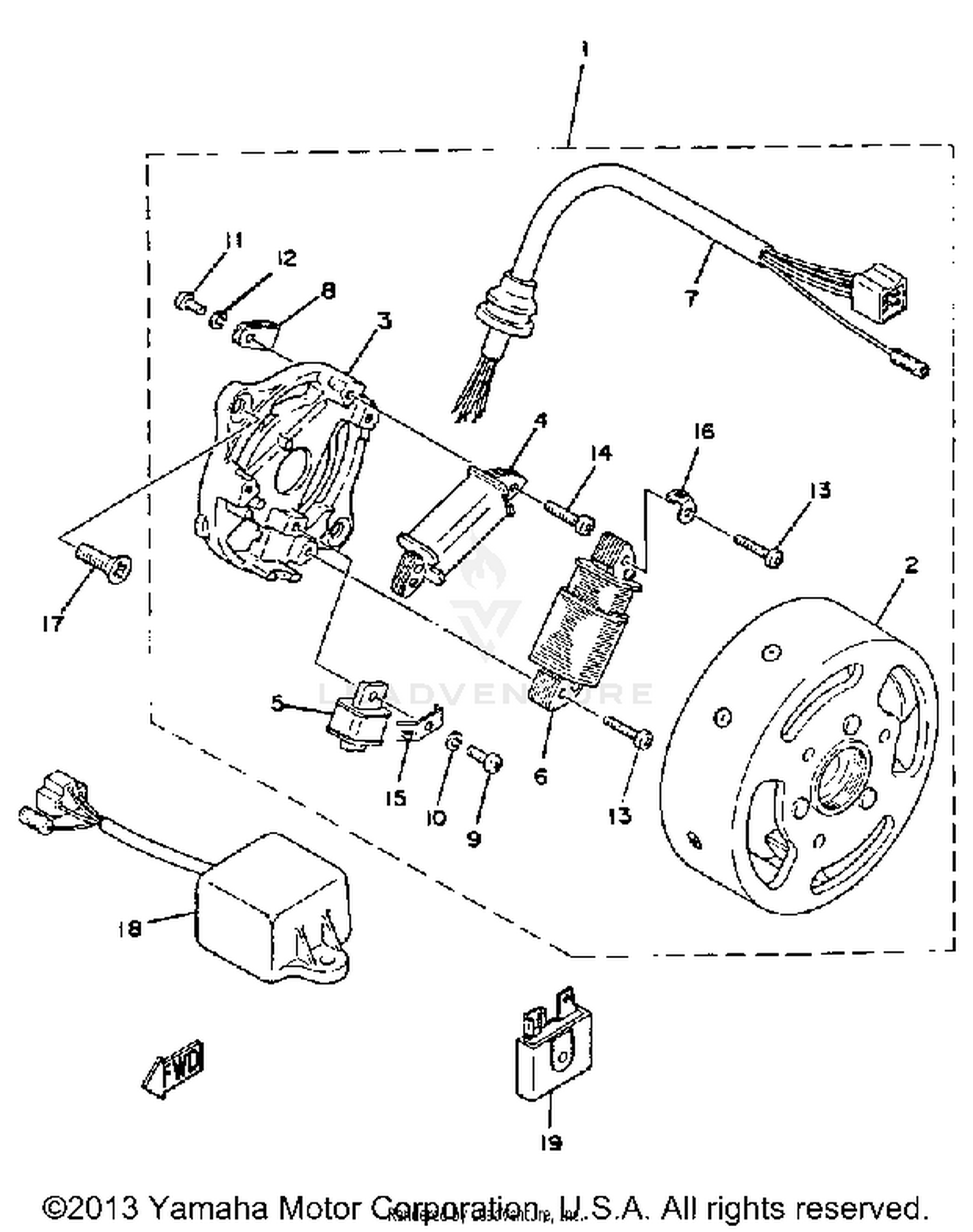

C - D - I - Magneto Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CDI MAGNETO ASSEMBLY
3L8-85500-M1-00
|
$150.99 | ||
|
Unavailable |
|||
|
#2
ROTOR ASSEMBLY
3L5-85550-M0-00
|
$106.99 | ||
|
Unavailable |
|||
|
#3
BASE, MAGNETO
3L5-85561-M1-00
|
$131.99 | ||
|
Unavailable |
|||
|
#4
COIL, CHARGE
4Y4-85520-M0-00
Superseded by 4Y4-85520-M1-00
|
$44.99 | ||
|
Unavailable |
|||
|
#5
COIL, PULSER
3L5-85580-M0-00
|
$67.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
COIL, LIGHTING 1
3L8-81313-M0-00
|
$73.14 | ||
|
Unavailable |
|||
|
#7
CORD ASSEMBLY
3L8-8131X-M0-00
|
$34.82 | ||
|
Unavailable |
|||
|
#8
CLAMP
90461-05036-00
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW, PAN HEAD
98580-04010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, PAN HEAD
98511-04006-00
Superseded by 98517-04006-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.80 | ||
|
Unavailable |
|||
|
#13
SCREW, PAN HEAD
98511-04025-00
Superseded by 98517-04025-00
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW,PANHEAD
98511-04012-00
Superseded by 98517-04012-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#15
TERMINAL, EARTH 1
2T4-85568-M1-00
|
$5.99 | ||
|
Unavailable |
|||
|
#16
TERMINAL, EARTH 2
2T4-85569-M1-00
|
$3.76 | ||
|
Unavailable |
|||
|
#17
SCREW, FLAT HEAD
98701-06014-00
Superseded by 98707-06014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
CDI UNIT ASSEMBLY (5G3-85540-M0
3L4-85540-M1-00
|
$145.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
RECTIFIER ASSY
353-81970-63-00
Superseded by 353-81970-M2-00
|
$12.49 | ||
|
Unavailable |
|||
