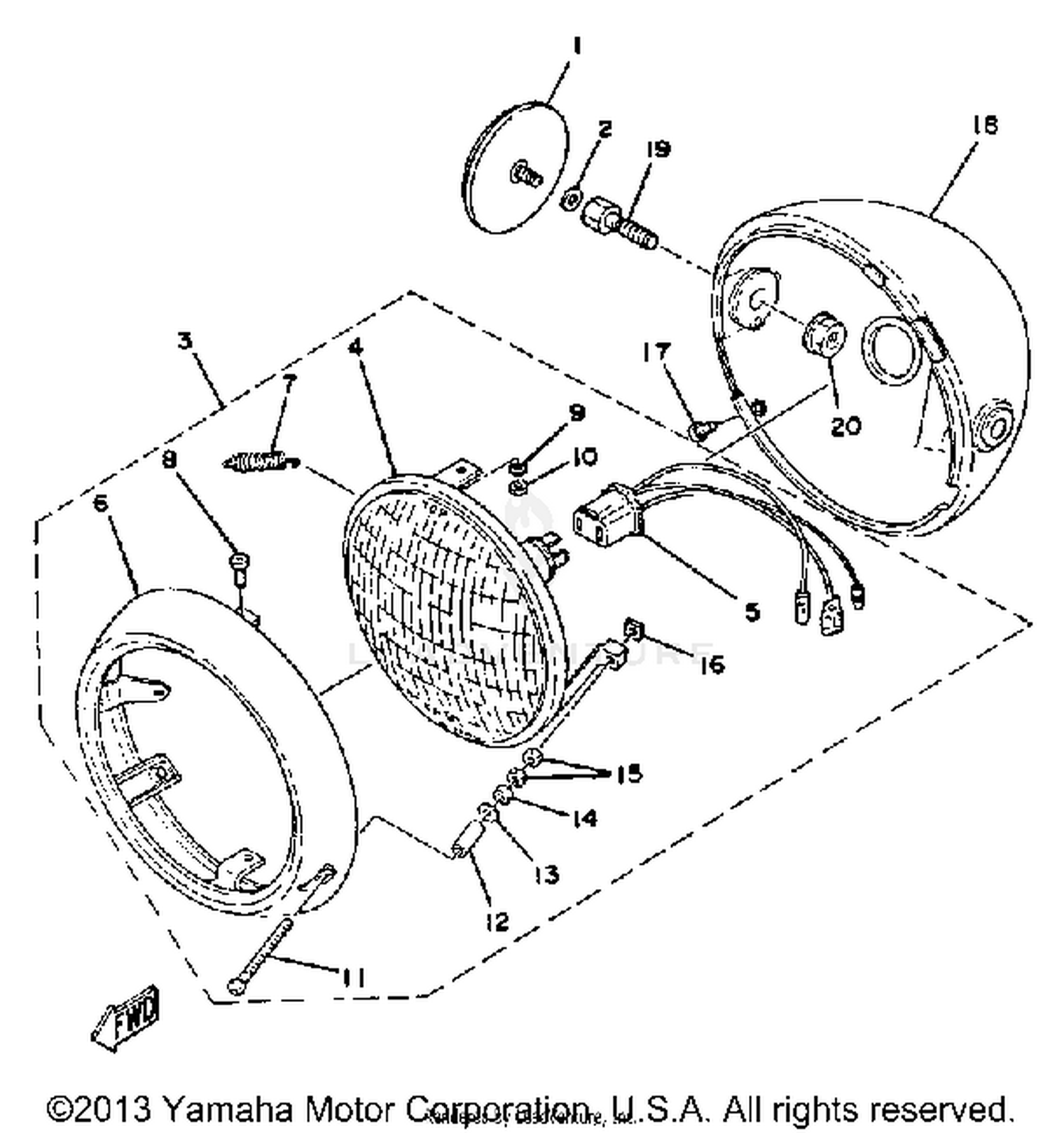

Headlight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REFLECTOR, FRONT 1
355-85111-01-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
WASHER, PLATE
90430-06012-00
Superseded by 90202-05191-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
HEADLIGHT UNIT ASSEMBLY
388-84110-61-00
|
$137.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
LENS ASSEMBLY
388-84120-61-00
|
$143.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SOCKET
371-84312-60-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
RIM, HEADLIGHT
261-84315-61-00
|
$31.41 | ||
|
Unavailable |
|||
|
#7
SPRING
132-84335-60-00
|
$3.05 | ||
|
Unavailable |
|||
|
#8
SCREW, PAN HEAD
98580-04010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT
95301-04700-00
Superseded by 95380-04700-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, RIM ADJUSTING
198-84331-60-00
|
$3.16 | ||
|
Unavailable |
|||
|
#12
COLLAR, SCREW
233-84133-60-00
|
$3.10 | ||
|
Unavailable |
|||
|
#13
WASHER, PLAIN
92990-04200-00
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPACER
132-84328-60-00
|
$4.58 | ||
|
Unavailable |
|||
|
#15
NUT
95301-04700-00
Superseded by 95380-04700-00
|
$6.49 | ||
|
Unavailable |
|||
|
#16
NUT, ADJUSTING
198-84334-60-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW, COUNTERSUNK
90152-05005-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#
UNAVAILABLE IN PRICE BOOK
195-84325-00-
|
|||
|
Unavailable |
|||
|
#18
BODY ASSEMBLY, HEADLIGHT
393-84130-61-4G
|
$49.99 | ||
|
Unavailable |
|||
|
#
BODY ASSEMBLY, HEADLIGHT
393-84130-61-66
|
$44.99 | ||
|
Unavailable |
|||
|
#
BODY ASSEMBLY, HEADLIGHT
393-84130-61-33
|
$39.99 | ||
|
Unavailable |
|||
|
#19
BOLT
90109-08534-00
|
$4.00 | ||
|
Unavailable |
|||
|
#20
NUT, FLANGE
95701-08500-00
Superseded by 95704-08500-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
