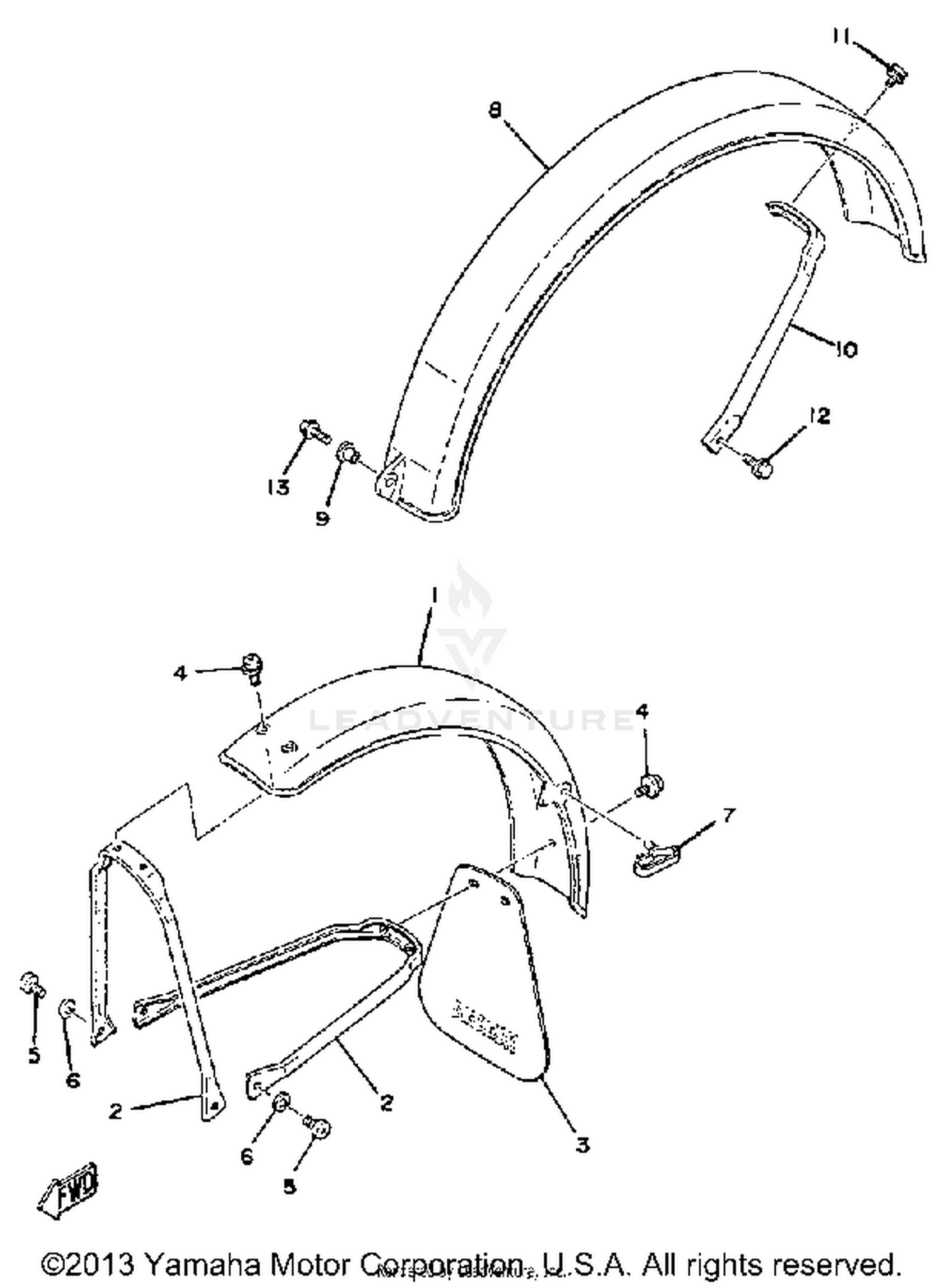

Front Fender-rear Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, FRONT
3L5-21511-00-00
|
$39.99 | ||
|
Unavailable |
|||
|
#2
STAY, FENDER 1
3L5-21513-00-00
|
$34.99 | ||
|
Unavailable |
|||
|
#3
FLAP, FRONT FENDER
3L5-21521-00-00
|
$13.49 | ||
|
Unavailable |
|||
|
#4
SCREW, W/WASHER
90159-05088-00
|
$1.75 | ||
|
Unavailable |
|||
|
#5
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOLDER, CABLE
2T4-21518-01-00
|
$3.95 | ||
|
Unavailable |
|||
|
#8
FENDER, REAR
3L5-21611-00-00
|
$40.99 | ||
|
Unavailable |
|||
|
#9
COLLAR
90387-06681-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
STAY, FENDER 2
3L5-21614-00-00
|
$27.99 | ||
|
Unavailable |
|||
|
#11
SCREW, W/WASHER
90159-05088-00
|
$1.75 | ||
|
Unavailable |
|||
|
#12
BOLT, FLANGE
90105-06138-00
Superseded by 95817-06012-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
