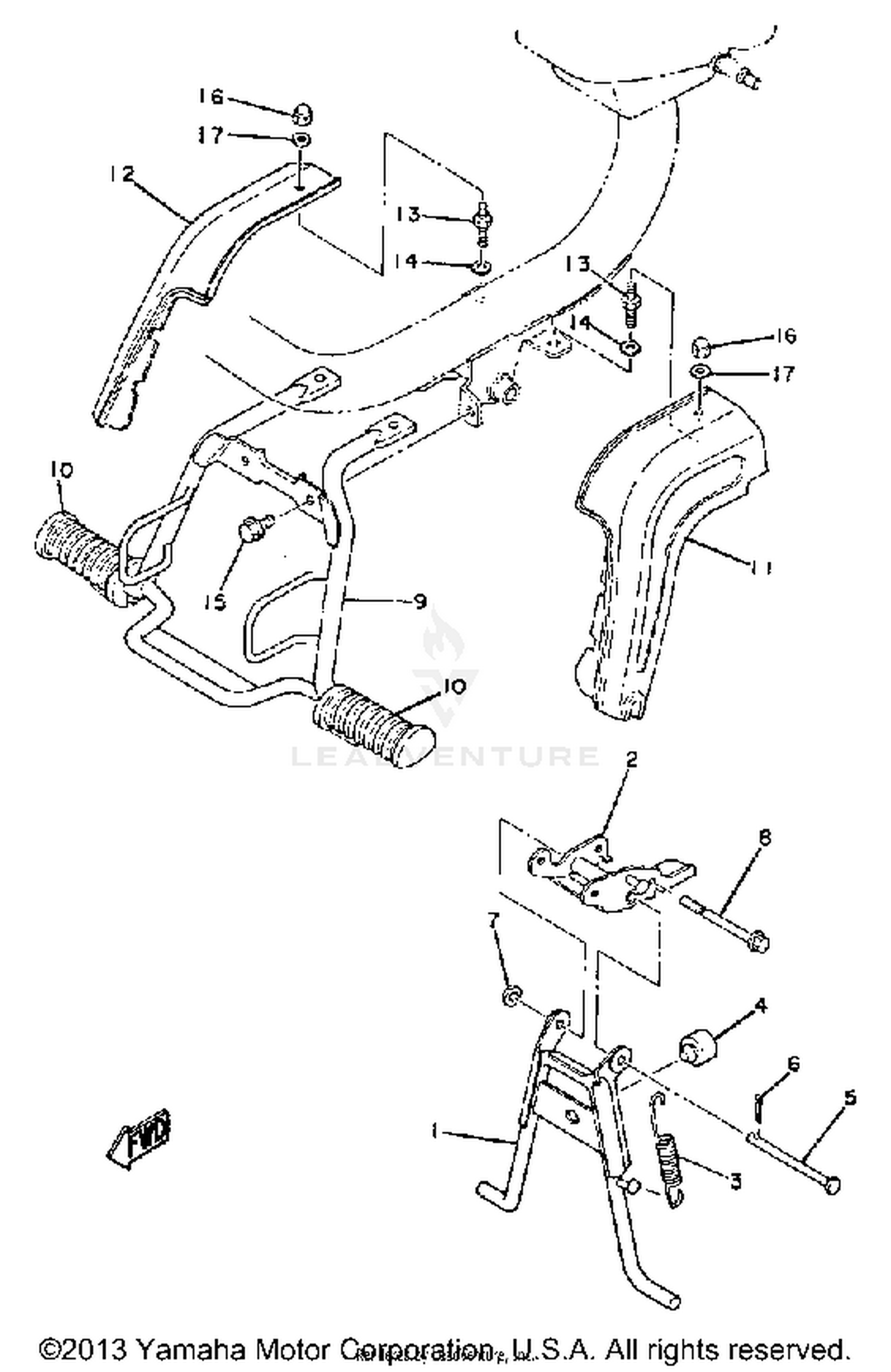

Stand-footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STAND, MAIN
3L5-27111-02-00
|
$44.99 | ||
|
Unavailable |
|||
|
#2
BRACKET, MAIN STAND
3L5-27151-02-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPRING, TENSION
90506-29052-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
STOPPER, MAIN STAND
278-27114-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIN, CLEVIS
90240-08121-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLIP
90468-12006-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE
90105-06301-00
Superseded by 90105-06809-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#9
FOOTREST 1
3L5-27411-01-33
|
$122.99 | ||
|
Unavailable |
|||
|
#10
COVER, FOOTREST
441-27413-01-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER, FOOTREST 1
3L5-27453-00-00
|
$29.99 | ||
|
Unavailable |
|||
|
#12
COVER, FOOTREST 2
3L5-27463-00-00
|
$27.99 | ||
|
Unavailable |
|||
|
#13
BOLT
90109-08528-00
|
$4.50 | ||
|
Unavailable |
|||
|
#14
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Unavailable |
|||
|
#15
BOLT,FLANGE (JN5)
95811-08016-00
Superseded by 95817-08016-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, CROWN
95303-06800-00
Superseded by 95380-06800-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLAIN
92990-06200-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
