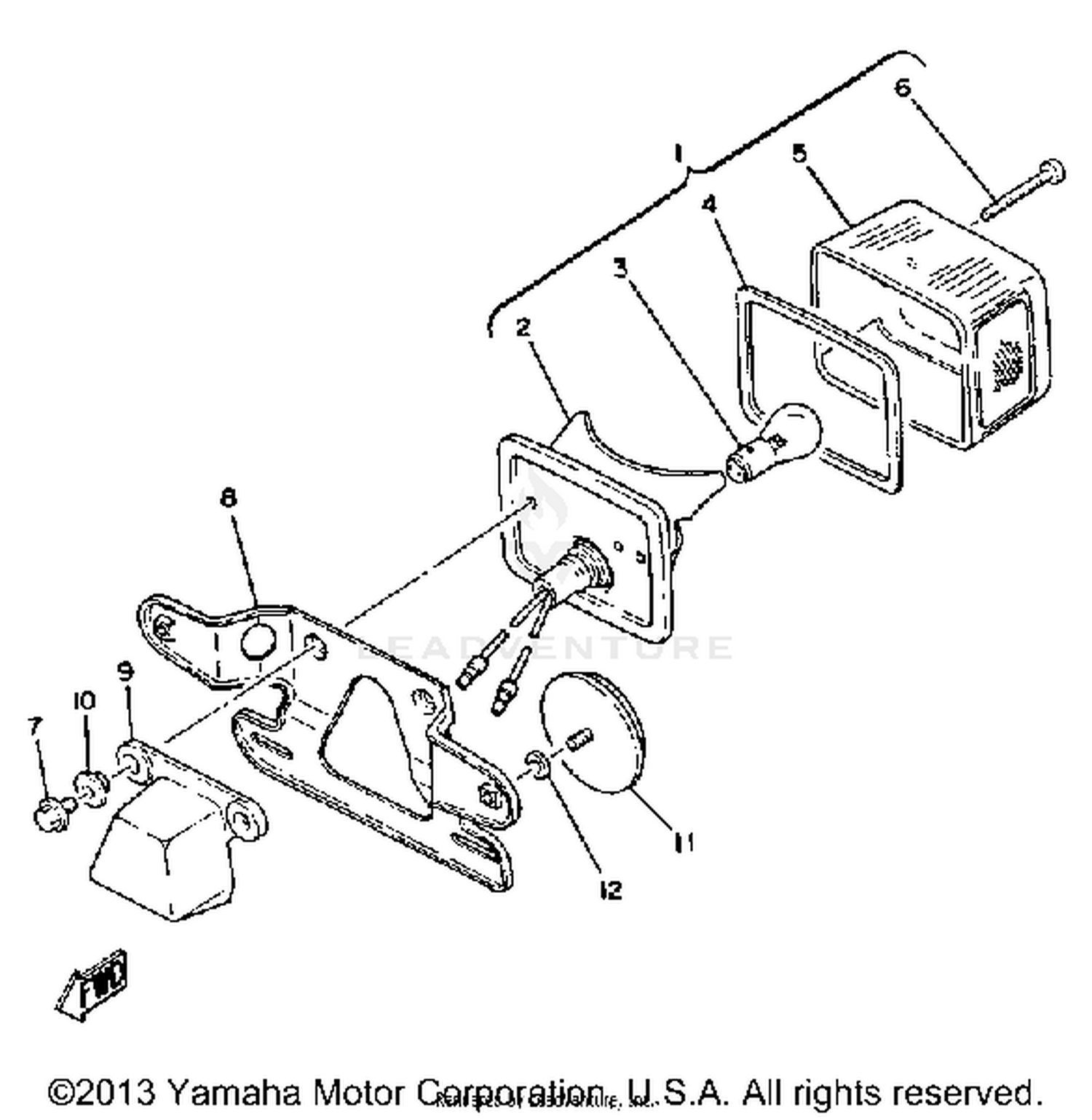

Taillight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TAILLIGHT UNIT ASSEMBLY
4L4-84510-61-00
|
$75.99 | ||
|
Unavailable |
|||
|
#2
BASE, TAILLIGHT
4L4-84511-60-00
|
$31.10 | ||
|
Unavailable |
|||
|
#3
BULB 6V21CP(1154)
122-84514-30-00
Superseded by 122-84514-30-XX
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET, LENS
1M1-84523-60-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
LENS, TAILLIGHT
1M1-84521-60-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, ADJUSTING
1M1-84524-60-00
Superseded by 5BF-8433E-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE
95811-06020-00
Superseded by 95817-06020-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#8
BRACKET, LICENCE
3L8-84551-00-00
|
$33.99 | ||
|
Unavailable |
|||
|
#9
COVER
3L8-84544-00-00
|
$16.99 | ||
|
Unavailable |
|||
|
#10
COLLAR
90387-06681-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
REFLECTOR, REAR 1
449-85131-02-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLATE
90430-06012-00
Superseded by 90202-05191-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
