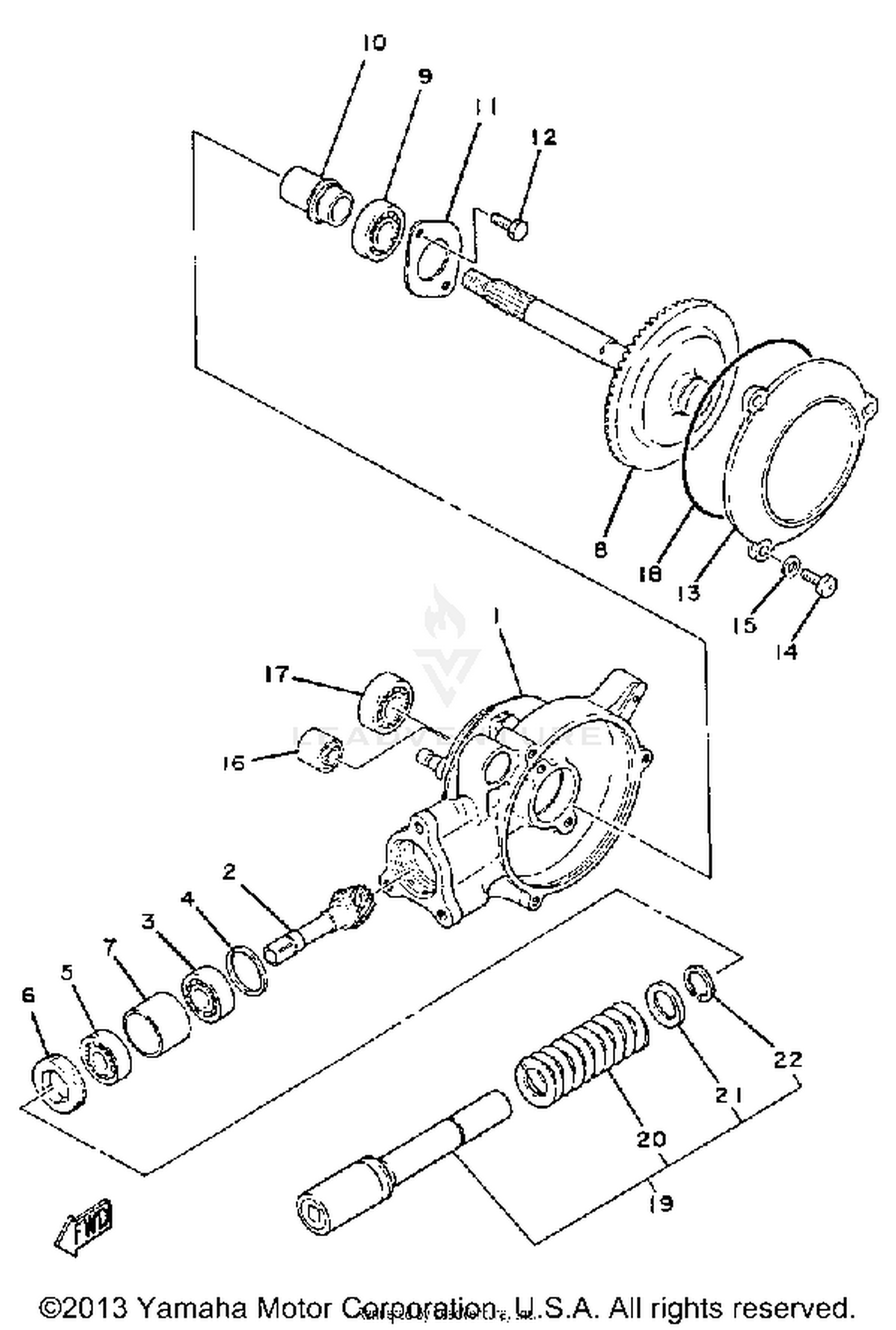

Drive Shaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOUSING, DR SHAFT
3L5-46151-00-00
|
$181.99 | ||
|
Unavailable |
|||
|
#2
GEAR, DRIVE PINIONPINION (10T)
15L-46121-00-00
|
$148.99 | ||
|
Unavailable |
|||
|
#3
BEARING
93306-20111-00
Superseded by 93306-20119-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SHIM, DRIVE PINION
3L5-46127-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING
93306-20111-00
Superseded by 93306-20119-00
|
$30.99 | ||
|
Unavailable |
|||
|
#
BEARING
93306-20110-00
Superseded by 93306-20119-00
|
$30.99 | ||
|
Unavailable |
|||
|
#6
SCREW
90149-35133-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPACER
90560-25185-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
RING GEAR ASSEMBLY
3L5-46110-00-00
|
$360.99 | ||
|
Unavailable |
|||
|
#9
BEARING
93306-20209-00
Superseded by 93306-20205-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPACER
90560-15315-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLATE, COVER
3L5-46114-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, HEXAGON DEEP R
97313-06016-00
Superseded by 97D95-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#13
COVER, HOUSING (3L5-46154-02)
15L-46154-00-00
|
$50.99 | ||
|
Unavailable |
|||
|
#14
SCREW, PAN HEAD
98503-06014-00
Superseded by 98507-06014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#16
BUSH, REAR SHOCK ABSORBER
164-22216-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BEARING
93306-20226-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
O-RING
93211-05393-00
Superseded by 93211-066A9-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
SHAFT DRIVE ASSEMBLY (3L5-46171
15L-46171-00-00
|
$258.99 | ||
|
Unavailable |
|||
|
#20
SPRING, COMPRESSION
90501-60556-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
RETAINER, SPRING
15L-18473-00-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
CIRCLIP
93440-17138-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
