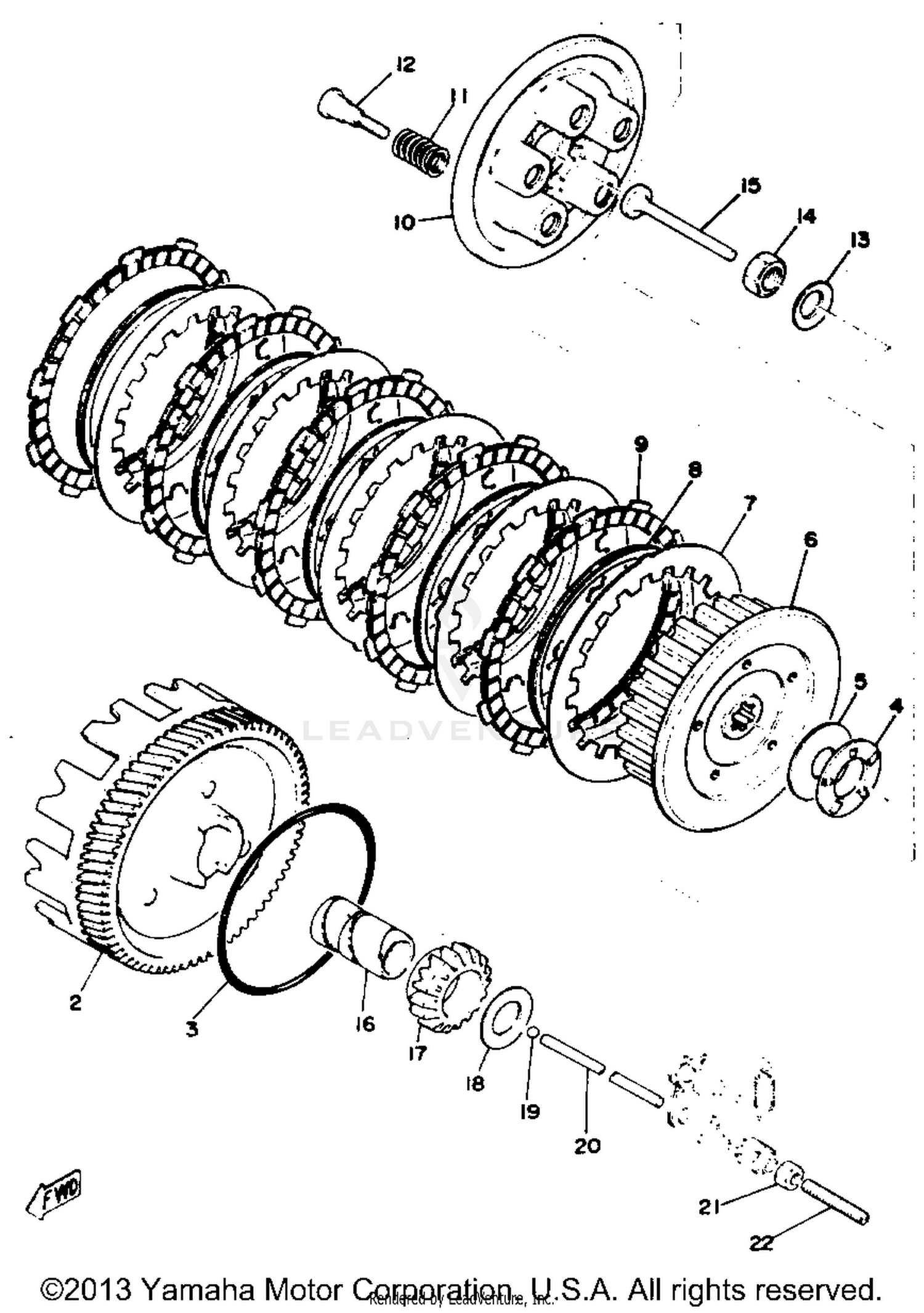

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLUTCH ASSEMBLY
307-16301-00-00
|
$78.24 | ||
|
Unavailable |
|||
|
#2
PRI DRVN GEAR
307-16150-00-00
|
$71.59 | ||
|
Unavailable |
|||
|
#3
RING, FRICTION
132-16369-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING
93341-22302-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLATE, THRUST 1
131-16154-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOSS, CLUTCH
132-16371-02-00
|
$65.99 | ||
|
Unavailable |
|||
|
#7
PLATE, CLUTCH 1
336-16324-00-00
Superseded by 336-16324-10-00
|
$17.99 | ||
|
Unavailable |
|||
|
#8
RING, CUSHION
307-16367-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#9
PLATE, FRICTION
307-16321-01-00
Superseded by 307-16321-09-00
|
$13.49 | ||
|
Unavailable |
|||
|
#10
PLATE, PRESSURE 1
132-16351-00-00
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING, COMPRESSION
90501-20125-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, SPECL SHAPE
90149-05147-00
|
$1.10 | ||
|
Unavailable |
|||
|
#13
WASHER, CONICAL SPRING
90208-12015-00
Superseded by 90208-12800-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT
90170-12060-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
ROD, PUSH 1
137-16356-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPACER
90560-17158-00
|
$7.99 | ||
|
Unavailable |
|||
|
#17
GEAR, KICK PINION
132-15631-00-00
|
$47.04 | ||
|
Unavailable |
|||
|
#18
PLATE, THRUST 2
122-16164-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BALL
93501-04011-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
ROD, PUSH 2
307-16357-00-00
|
$12.50 | ||
|
Unavailable |
|||
|
#21
NUT
95380-06700-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, SET
90113-06013-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
