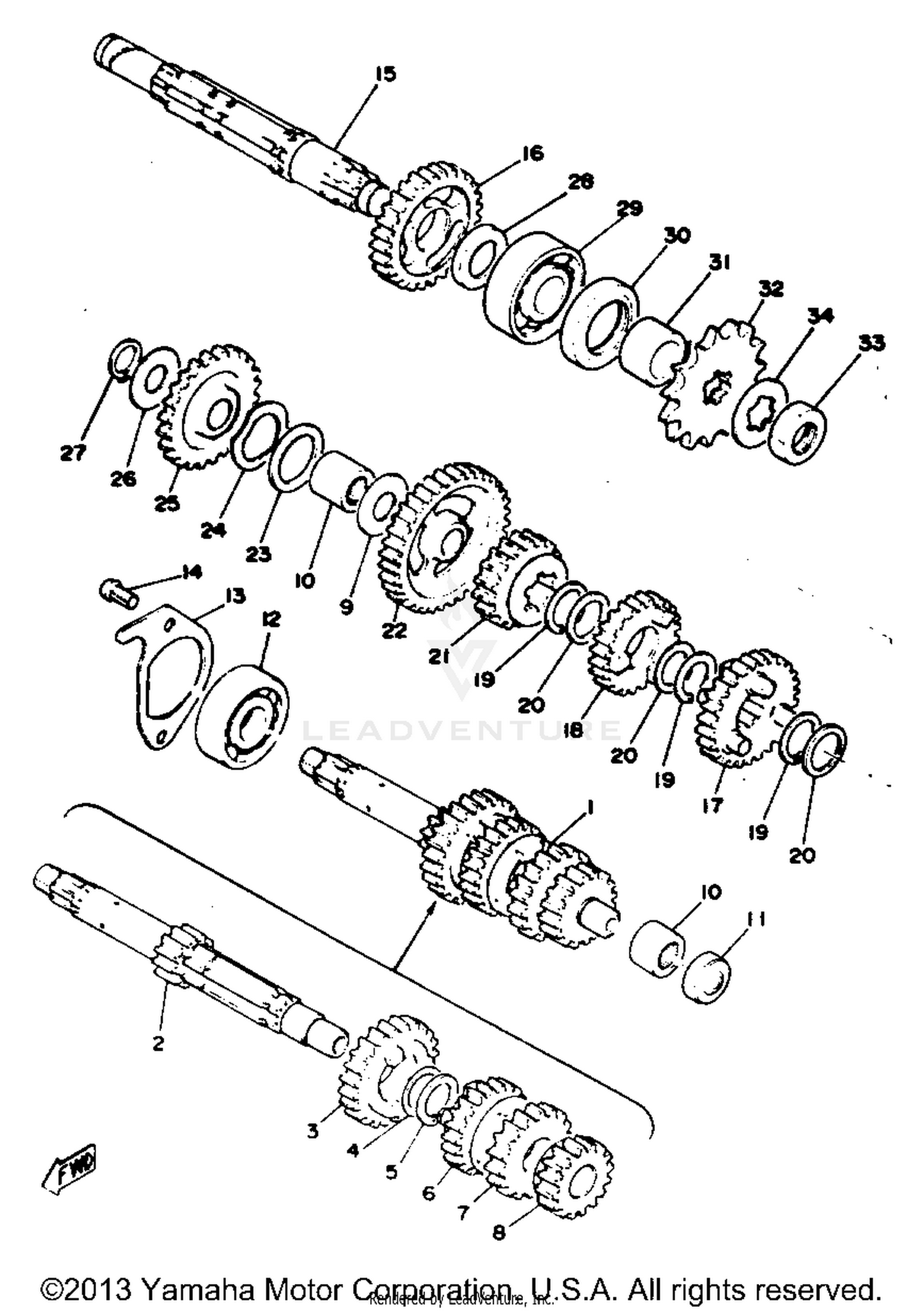

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MAIN AXLE
307-17410-00-00
|
$71.54 | ||
|
Unavailable |
|||
|
#2
AXLE, MAIN
183-17411-00-00
|
$37.82 | ||
|
Unavailable |
|||
|
#3
GEAR, 5TH PINION
183-17151-00-00
|
$17.38 | ||
|
Unavailable |
|||
|
#4
WASHER, PLATE (T=1.0)
90201-20266-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
CIRCLIP
93410-20038-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR, 4TH PINION
307-17141-00-00
|
$32.66 | ||
|
Unavailable |
|||
|
#7
GEAR, 3RD PINION
307-17131-00-00
|
$27.76 | ||
|
Unavailable |
|||
|
#8
GEAR, 2ND PINION
183-17121-01-00
|
$13.99 | ||
|
Unavailable |
|||
|
#9
SHIM 1 (T=0.6)
164-17427-00-06
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BEARING
93315-31502-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SEAL, PUSH ROD
93109-06060-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BEARING
93306-30309-00
Superseded by 93306-30317-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLATE, COVER
307-17471-00-00
|
$0.56 | ||
|
Unavailable |
|||
|
#14
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#15
AXLE, DRIVE
183-17421-00-00
|
$33.74 | ||
|
Unavailable |
|||
|
#16
GEAR, 2ND WHEEL
307-17221-01-00
|
$34.99 | ||
|
Unavailable |
|||
|
#17
GEAR, 3RD WHEEL
307-17231-00-00
|
$36.48 | ||
|
Unavailable |
|||
|
#18
GEAR, 4TH WHEEL
307-17241-00-00
|
$37.82 | ||
|
Unavailable |
|||
|
#19
CIRCLIP
93410-20038-00
|
$3.55 | ||
|
Unavailable |
|||
|
#20
WASHER, PLATE (T=1.0)
90201-20266-00
|
$8.49 | ||
|
Unavailable |
|||
|
#21
GEAR, 5TH WHEEL
183-17251-00-00
|
$16.74 | ||
|
Unavailable |
|||
|
#22
GEAR, 1ST WHEEL
307-17211-01-00
|
$50.99 | ||
|
Unavailable |
|||
|
#23
WASHER, PLATE (0.9T)
90201-256K6-00
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, WAVE
131-15643-00-00
|
$1.18 | ||
|
Unavailable |
|||
|
#25
GEAR, KICK IDLE
183-15651-00-00
|
$13.36 | ||
|
Unavailable |
|||
|
#26
SHIM 1 (T=0.6)
164-17427-00-06
|
$5.49 | ||
|
Unavailable |
|||
|
#27
CIRCLIP
99009-15400-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
SPACER
90560-20038-00
|
$3.60 | ||
|
Unavailable |
|||
|
#29
BEARING
93306-30421-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
OIL SEAL
93102-28021-00
Superseded by 93106-28043-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
COLLAR (102-17462-00)
90387-20346-00
|
$12.49 | ||
|
Unavailable |
|||
|
#32
SPROCKET,DRIVE 15T(1741746150)
93822-15065-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#
SPROCKET, DRIVE (5N0-17461-40-0
93822-14037-00
Superseded by 93822-14043-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#
SPROCKET,DRIVE 16T(1
93822-16093-00
Superseded by 93822-16095-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#
SPROCKET, DRIVE (13T)
93822-13024-00
Superseded by 93822-13213-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
NUT
90179-16018-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
WASHER, LOCK
90215-16020-00
Superseded by 90215-16127-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
