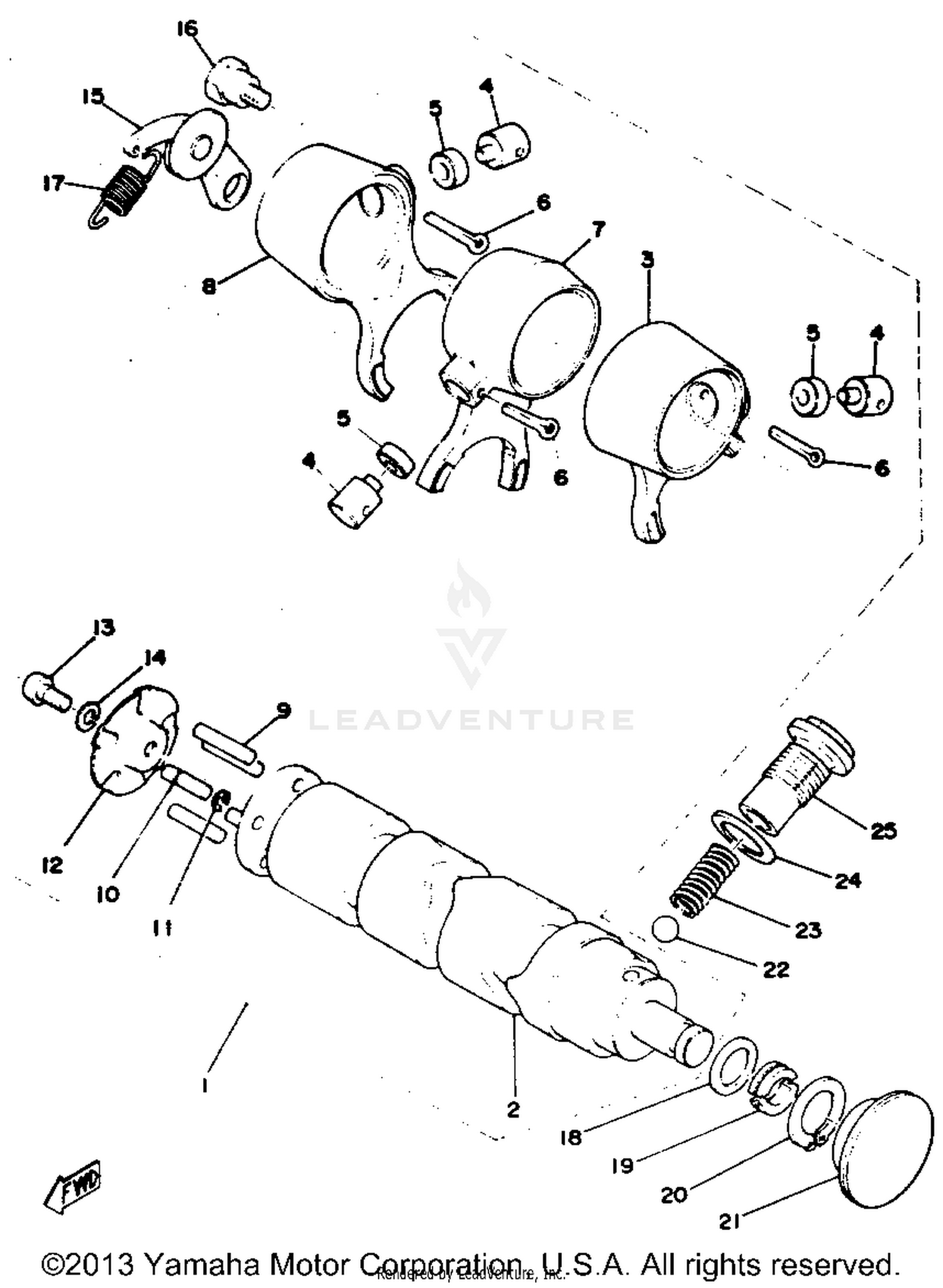

Shifter 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHIFTER ASSEMBLY
183-18500-02-00
|
$125.99 | ||
|
Unavailable |
|||
|
#2
CAM, SHIFT
183-18541-02-00
|
$41.99 | ||
|
Unavailable |
|||
|
#3
FORK, SHIFT 1
183-18511-00-00
|
$25.60 | ||
|
Unavailable |
|||
|
#4
PIN, STRAIGHT
90250-10020-00
|
$1.65 | ||
|
Unavailable |
|||
|
#5
ROLLER, CAM FOLWR
164-18551-00-00
|
$2.77 | ||
|
Unavailable |
|||
|
#6
PIN. COTTER
91401-25020-00
Superseded by 91490-25020-00
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#7
FORK, SHIFT 2
183-18512-00-00
|
$29.38 | ||
|
Unavailable |
|||
|
#8
FORK, SHIFT 3
183-18513-00-00
|
$29.38 | ||
|
Unavailable |
|||
|
#9
PIN, DOWEL
93604-22050-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN, SPEC''L SHAPE (174-18544
90249-04039-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#11
CIRCLIP, E-TYPE
93430-03014-00
|
$2.25 | ||
|
Unavailable |
|||
|
#12
PLATE, SIDE 1
164-18561-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW, PAN HEAD
98580-05012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#15
STOPPER LEVER ASSEMBLY
132-18140-01-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT
90109-06001-00
Superseded by 90109-06239-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING, TENSION
90506-09112-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLATE
90201-12166-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
HOLDER, SHIFT CAM
307-18571-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#20
CIRCLIP
93440-15012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
PLUG, BLIND
307-18533-00-00
|
$5.99 | ||
|
Unavailable |
|||
|
#22
BALL
93505-16006-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
SPRING, COMPRESSION
90501-12083-00
Superseded by 90501-12750-00
|
$1.85 | ||
|
Unavailable |
|||
|
#24
GASKET, DRAIN
137-15353-00-00
Superseded by 4F4-14766-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT
90109-14385-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
