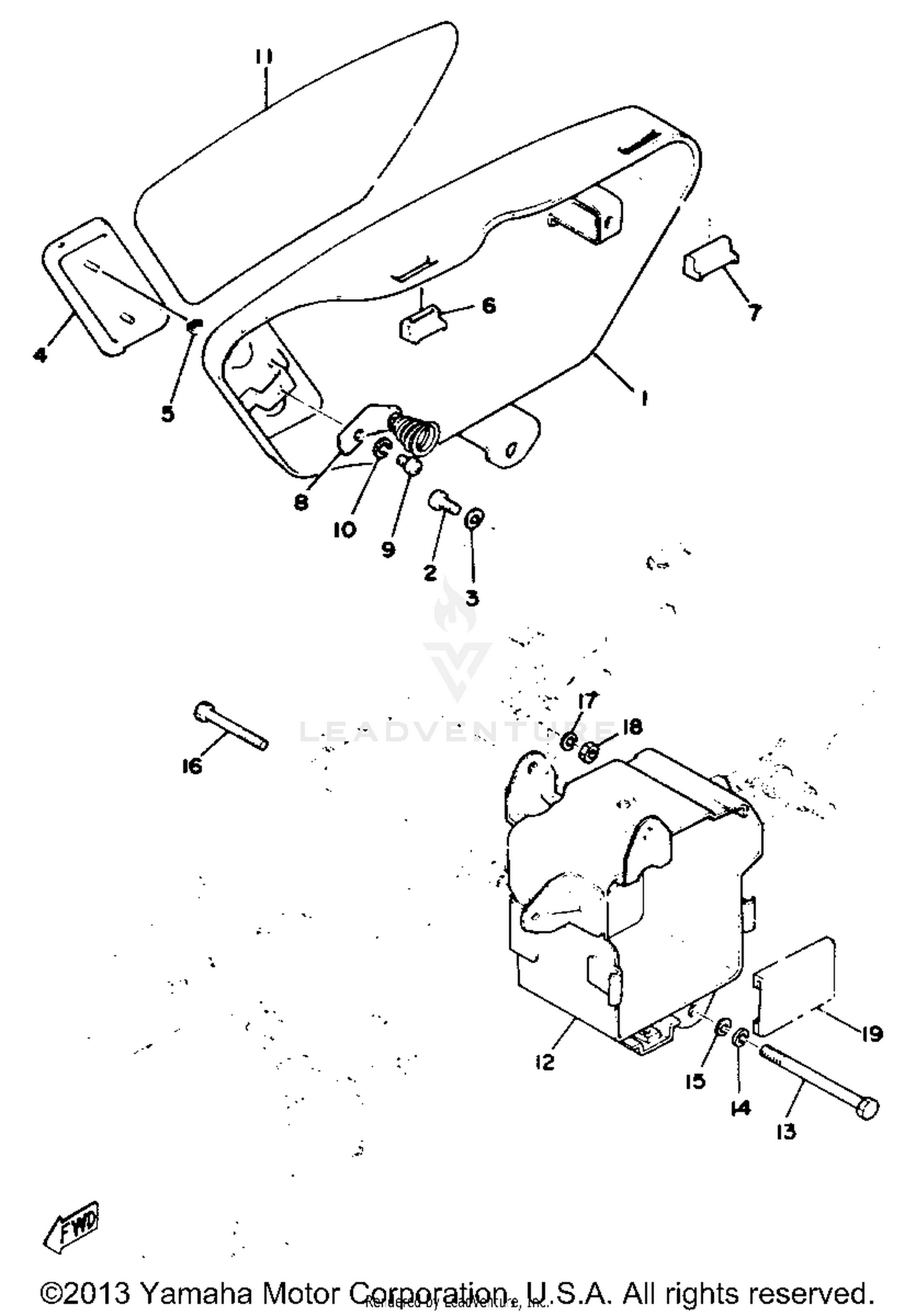

Side Cover Box Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, SIDE 1
396-21711-01-E1
|
$80.99 | ||
|
Unavailable |
|||
|
#2
SCREW, PAN HEAD
98503-06014-00
Superseded by 98507-06014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#4
MOLD 2
396-21782-01-00
|
$5.99 | ||
|
Unavailable |
|||
|
#5
NUT, SPRING
90183-03006-00
|
$7.49 | ||
|
Unavailable |
|||
|
#6
DAMPER
416-21717-00-00
|
$5.99 | ||
|
Unavailable |
|||
|
#7
DAMPER, SIDE COVER
466-21717-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
DAMPER, LOCATING 1
466-21778-01-00
|
$3.57 | ||
|
Unavailable |
|||
|
#9
SCREW, PAN HEAD
98580-06008-00
Superseded by 97885-06008-00
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#11
EMBLEM 2
507-21782-30-00
|
$9.99 | ||
|
Unavailable |
|||
|
#12
BOX
396-21170-00-33
|
$14.20 | ||
|
Unavailable |
|||
|
#13
BOLT
97313-06070-00
Superseded by 97013-06070-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#15
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT
97313-06045-00
Superseded by 97013-06045-00
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#18
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#19
PAD, BATTERY
307-82121-00-00
|
$0.47 | ||
|
Unavailable |
|||
