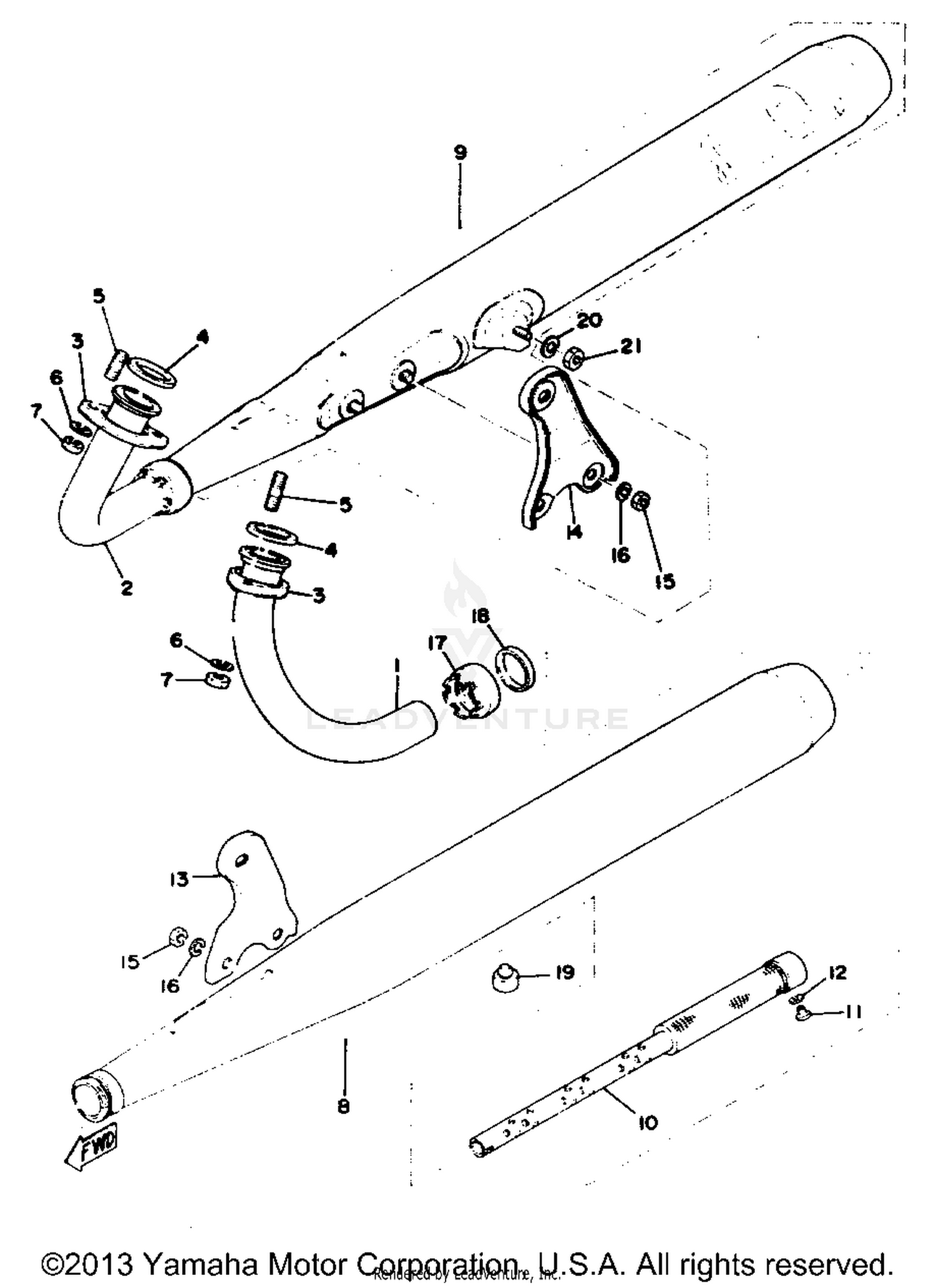

Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIPE, EXHAUST L
396-14611-00-00
|
$18.49 | ||
|
Unavailable |
|||
|
#2
PIPE, EXHAUST R
396-14621-00-00
|
$17.49 | ||
|
Unavailable |
|||
|
#3
NUT, RING
307-14612-00-00
|
$13.14 | ||
|
Unavailable |
|||
|
#4
GASKET, EXST PIPE
132-14613-00-00
Superseded by 3MT-14613-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, STUD
90116-08166-00
Superseded by 90116-08408-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT
95333-08600-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#8
MUFFLER ASSEMBLY L
466-14710-00-00
|
$138.99 | ||
|
Unavailable |
|||
|
#9
MUFFLER ASSEMBLY R
466-14720-00-00
|
$138.99 | ||
|
Unavailable |
|||
|
#10
SILENCER, EXHAUST
307-14753-00-00
|
$33.99 | ||
|
Unavailable |
|||
|
#11
SCREW, PAN HEAD
98580-05010-00
Superseded by 97885-05010-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#13
STAY, MUFFLER 1
396-14771-00-00
|
$9.99 | ||
|
Unavailable |
|||
|
#14
STAY, MUFFLER 2
396-14781-00-00
|
$7.99 | ||
|
Unavailable |
|||
|
#15
NUT
95333-08600-00
|
$2.35 | ||
|
Unavailable |
|||
|
#16
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Unavailable |
|||
|
#17
NUT, MUFFLER JOINT
132-14713-00-00
|
$25.99 | ||
|
Unavailable |
|||
|
#18
GASKET, MUFFLER
3NA-14714-01-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
STOPPER, MAIN STAND
1M3-27114-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Unavailable |
|||
|
#21
NUT
95333-08600-00
|
$2.35 | ||
|
Unavailable |
|||
