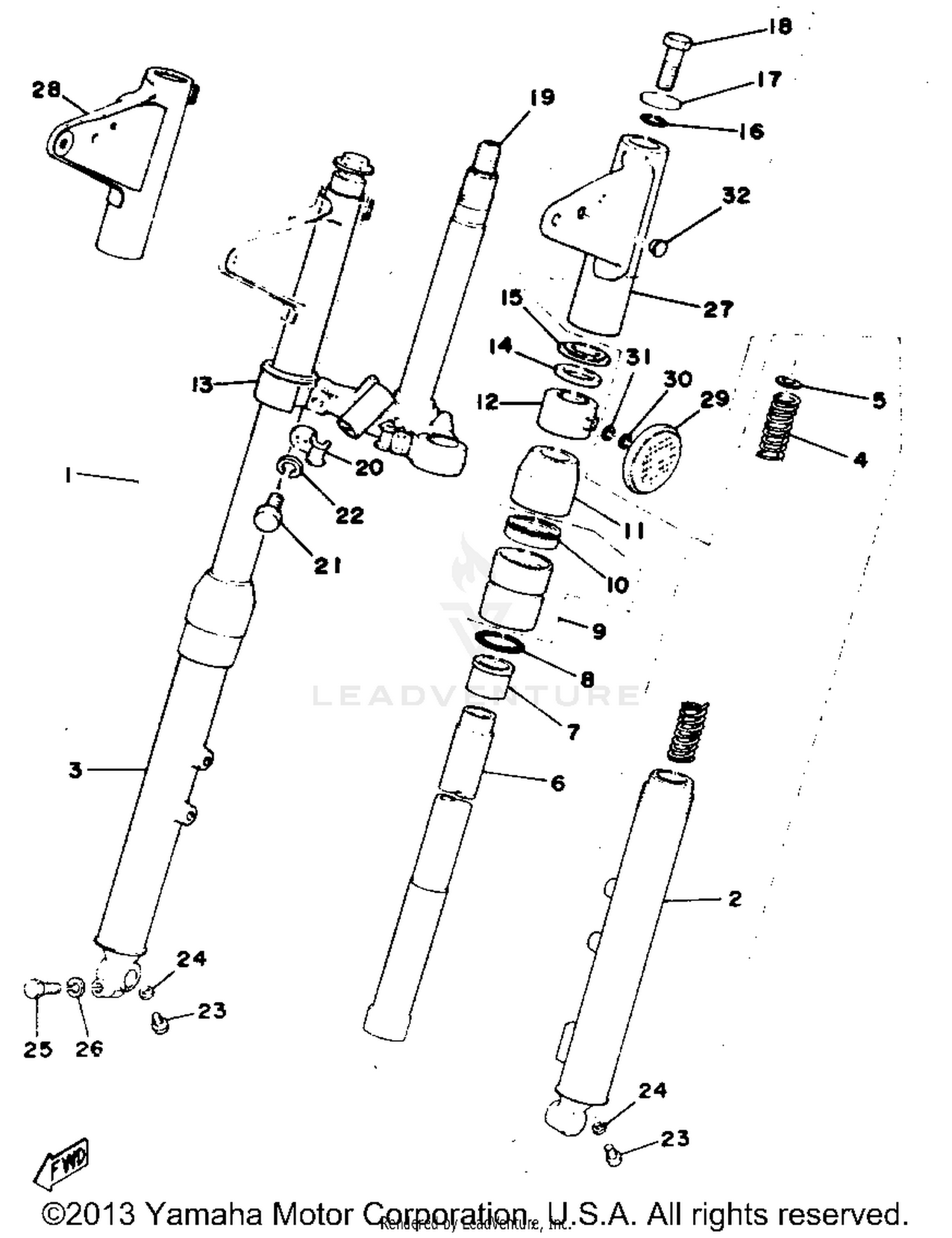

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSEMBLY
396-23101-00-00
|
$239.99 | ||
|
Unavailable |
|||
|
#2
TUBE, OUTER 1
396-23126-00-35
|
$65.75 | ||
|
Unavailable |
|||
|
#3
TUBE, OUTER 2
307-23136-00-35
|
$78.75 | ||
|
Unavailable |
|||
|
#4
SPRING, FRONT FORK
307-23141-00-00
|
$15.04 | ||
|
Unavailable |
|||
|
#5
WASHER, SPRING UPR
252-23149-00-00
|
$7.68 | ||
|
Unavailable |
|||
|
#6
TUBE, INNER 1
252-23124-00-00
|
$71.59 | ||
|
Unavailable |
|||
|
#7
METAL, SLIDE 1
164-23125-00-00
|
$2.97 | ||
|
Unavailable |
|||
|
#8
O-RING
164-23147-00-00
|
$3.57 | ||
|
Unavailable |
|||
|
#9
OUTER NUT
307-23150-01-00
|
$38.99 | ||
|
Unavailable |
|||
|
#10
OIL SEAL
164-23145-01-00
|
$47.99 | ||
|
Unavailable |
|||
|
#11
SEAL, DUST
252-23144-00-00
|
$10.80 | ||
|
Unavailable |
|||
|
#12
COVER, OUTER 1
307-23122-00-93
|
$9.99 | ||
|
Unavailable |
|||
|
#13
COVER, OUTER 2
307-23132-00-93
|
$12.49 | ||
|
Unavailable |
|||
|
#14
GASKET
164-23163-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
GUIDE, COVER LOWER
252-23116-00-00
|
$3.76 | ||
|
Unavailable |
|||
|
#16
GASKET
307-23114-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, CAP
183-23112-00-00
|
$3.16 | ||
|
Unavailable |
|||
|
#18
BOLT, CAP
307-23111-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#19
UNDER BRACKET
307-23340-00-33
|
$80.59 | ||
|
Unavailable |
|||
|
#20
HOLDER, CABLE 1
183-23318-00-00
|
$0.89 | ||
|
Unavailable |
|||
|
#21
BOLT 1
5J0-23346-00-00
Superseded by 122-23346-02-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, SPRING
92990-10100-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW, PAN HEAD
98580-04008-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
GASKET, DRAIN PLUG
122-23129-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, WITH WASHER
90119-08010-00
|
$2.65 | ||
|
Unavailable |
|||
|
#26
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
COVER, UPPER 1
507-23121-00-33
|
$26.84 | ||
|
Unavailable |
|||
|
#28
COVER, UPPER 2
507-23131-00-33
|
$26.66 | ||
|
Unavailable |
|||
|
#29
REFLECTOR, FRONT 1
355-85111-01-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER, PLAIN
92990-05200-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#32
PLUG, SPEC''L SHAPE
90338-09060-00
|
$1.05 | ||
|
Unavailable |
|||
