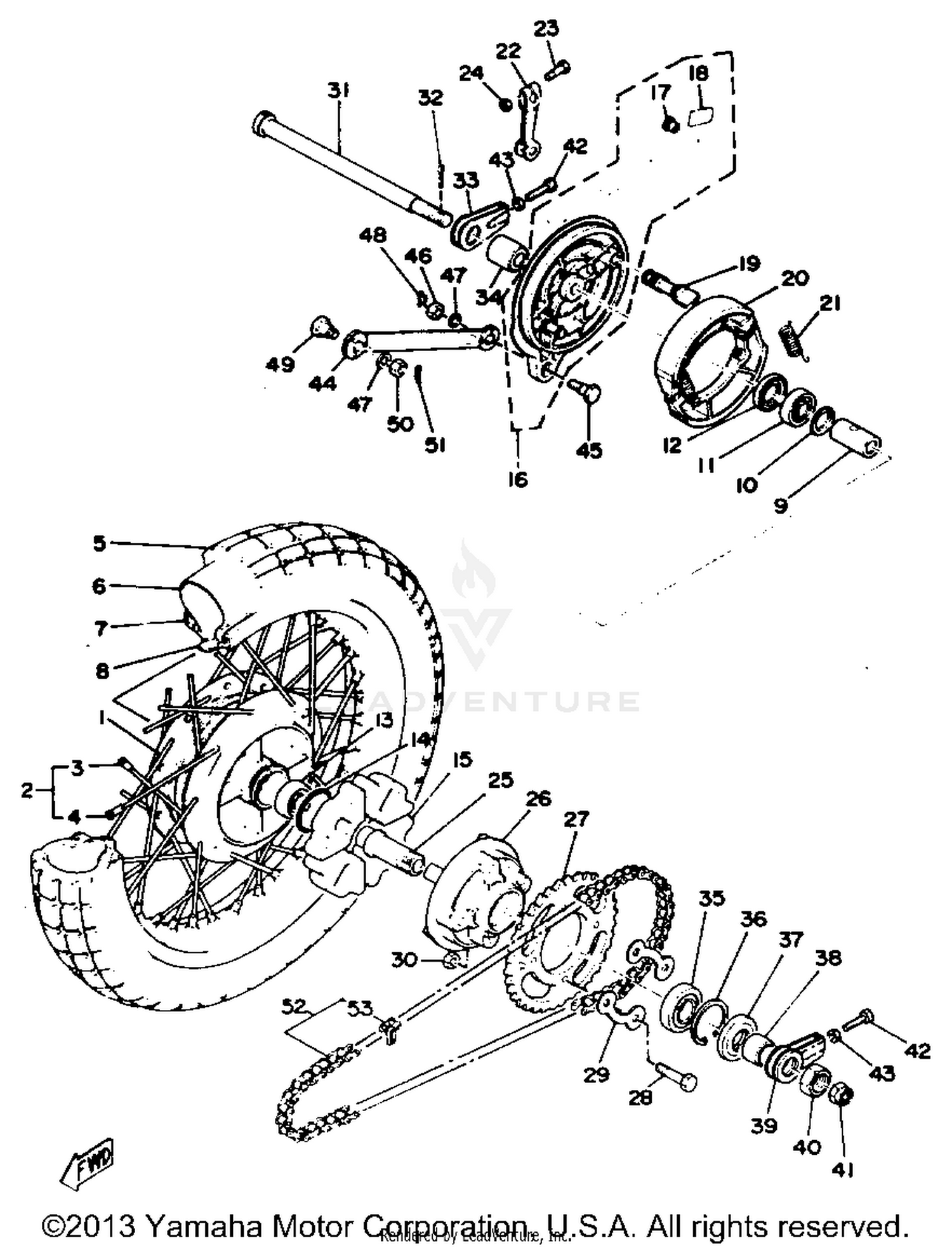

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB,REAR
183-25311-00-38
Superseded by 183-25311-00-00
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPOKE SET, REAR
183-25304-01-00
|
$91.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPOKE SET, INNER 2
183-25396-90-00
|
$2.44 | ||
|
Unavailable |
|||
|
#4
SPOKE SET, OUTER 2
183-25397-90-00
|
$7.46 | ||
|
Unavailable |
|||
|
#5
300X18 YOKO Y93C
94130-18310-00
|
$25.99 | ||
|
Unavailable |
|||
|
#6
TUBE
94230-18084-00
Superseded by 94227-18195-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
RIM 1.60X18
94416-18018-00
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BAND, RIM (2.50-18)
94325-18043-00
Superseded by 94340-18086-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPACER (136-25317-00)
90560-15136-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
FLANGE, SPACER 2
146-25116-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING
93306-20211-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
OIL SEAL
93104-22018-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BEARING
93306-20204-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
O-RING
93210-42101-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
DAMPER
304-25364-01-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BRAKE SHOE PLT ASSEMBLY
507-25320-10-00
|
$75.99 | ||
|
Unavailable |
|||
|
#17
GROMMET
90480-10068-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
LABEL, INDICATOR
437-25134-00-00
|
$1.59 | ||
|
Unavailable |
|||
|
#19
CAMSHAFT
183-25351-00-00
|
$6.66 | ||
|
Unavailable |
|||
|
#20
BRAKE SHOE SET-2PCS
437-W2536-00-00
|
$16.99 | ||
|
Unavailable |
|||
|
#21
SPRING, TENSION
90506-17328-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
LEVER, CAMSHAFT
307-25355-00-00
|
$10.18 | ||
|
Unavailable |
|||
|
#23
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#25
AXLE, SPROCKET
183-25387-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLUTCH, HUB
58K-25366-00-00
|
$112.99 | ||
|
Unavailable |
|||
|
#27
SPROCKET, DRVN 37T
183-25437-20-00
|
$31.99 | ||
|
Unavailable |
|||
|
#
SPROCKET, DRIVN 39T
183-25439-20-00
|
$28.12 | ||
|
Unavailable |
|||
|
#
SPROCKET, DRIVN 38T
183-25438-10-33
|
$49.99 | ||
|
Unavailable |
|||
|
#28
BOLT
90101-08672-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER
102-25412-00-00
Superseded by 4AW-25412-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
NUT, SPEC''L SHAPE (30)
90179-08639-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
AXLE, WHEEL
382-25381-00-00
|
$33.99 | ||
|
Unavailable |
|||
|
#32
PIN, COTTER
91401-30030-00
Superseded by 91490-30030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
PULLER, CHAIN 1
248-25388-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
COLLAR
90387-15425-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
BEARING
93306-00406-00
Superseded by 93306-00438-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
CIRCLIP
99009-42500-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
OIL SEAL
93106-26005-00
|
$6.75 | ||
|
Available to order. Add to View Price |
|||
|
#38
COLLAR
90387-20165-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
PULLER, CHAIN 1
214-25388-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
NUT, HEXAGON (137-25385-00)
90170-20167-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
NUT, CASTLE
90171-14020-00
Superseded by 90171-14056-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
BOLT
90101-08699-00
Superseded by 90101-08060-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
NUT
95303-08700-00
Superseded by 95380-08700-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#44
BAR, TENSION
307-25371-00-00
|
$3.76 | ||
|
Unavailable |
|||
|
#45
BOLT
90109-08063-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#46
NUT
95303-08700-00
Superseded by 95380-08700-00
|
$3.25 | ||
|
Unavailable |
|||
|
#47
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#48
CLIP
90468-10050-00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#49
BOLT
90109-08368-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#50
NUT
95333-08600-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#51
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#52
428 STD 110L
94504-28110-00
|
$9.00 | ||
|
Unavailable |
|||
|
#53
CHAIN JOINT
94680-24001-00
Superseded by 94681-64001-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
