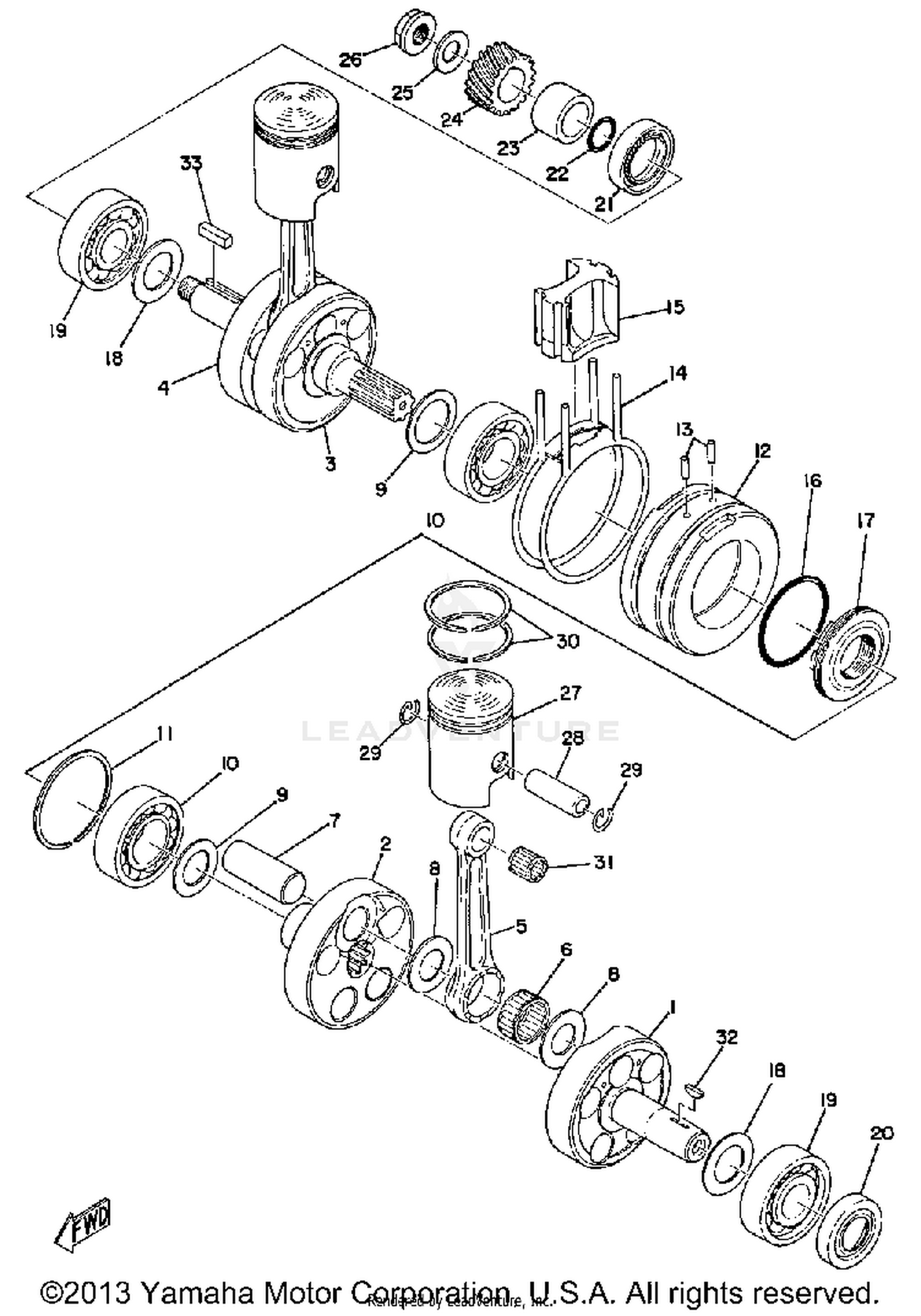

Crank Piston Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANK 1
183-11412-03-00
|
$98.99 | ||
|
Unavailable |
|||
|
#
CRANKSHAFT ASSEMBLY
416-11400-00-00
|
$315.99 | ||
|
Unavailable |
|||
|
#2
CRANKSHAFT ASSEMBLY
132-11400-00-00
Superseded by 132-11400-03-00
|
$232.99 | ||
|
Unavailable |
|||
|
#
PISTON KIT 2ND
466-11630-20-00
|
$23.84 | ||
|
Unavailable |
|||
|
#
PISTON KIT 1ST
466-11630-10-00
|
$111.99 | ||
|
Unavailable |
|||
|
#
PISTON KIT STD
466-11630-00-00
|
$138.99 | ||
|
Unavailable |
|||
|
#3
CRANK 3
132-11432-03-00
|
$35.99 | ||
|
Unavailable |
|||
|
#4
CRANK 4
389-11442-00-00
|
$51.78 | ||
|
Unavailable |
|||
|
#5
ROD, CONNECTING
1E7-11651-00-00
|
$60.99 | ||
|
Unavailable |
|||
|
#6
BEARING CYLINDER #10
93310-418T0-00
Superseded by 93310-418C4-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIN, CRANK 1
3R1-11681-00-00
|
$66.99 | ||
|
Unavailable |
|||
|
#8
WASHER
90209-18112-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
SHIM, CRANK 1
132-11561-00-03
|
$4.55 | ||
|
Unavailable |
|||
|
#10
BEARING (B6205C4)
93306-20529-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
CIRCLIP
93450-52010-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER, CRANK
132-11511-02-00
|
$31.99 | ||
|
Unavailable |
|||
|
#13
PIN, DOWEL
93604-18058-00
Superseded by 93604-18251-00
|
$0.85 | ||
|
Available to order. Add to View Price |
|||
|
#14
SEAL, CRANK COVER
183-11512-00-00
|
$10.32 | ||
|
Unavailable |
|||
|
#15
METAL, FILLER
307-11541-00-00
|
$9.48 | ||
|
Unavailable |
|||
|
#16
O-RING
93210-48045-00
|
$3.18 | ||
|
Unavailable |
|||
|
#17
SEAL, LABYRINTH 1
132-11515-01-00
|
$19.54 | ||
|
Unavailable |
|||
|
#18
SHIM, CRANK 1
136-11561-00-04
|
$9.49 | ||
|
Unavailable |
|||
|
#
SHIM, CRANK 1
136-11561-00-03
|
$4.25 | ||
|
Unavailable |
|||
|
#
SHIM, CRANK 1
136-11561-00-05
|
$8.49 | ||
|
Unavailable |
|||
|
#
SHIM, CRANK 1
136-11561-00-06
|
$11.49 | ||
|
Unavailable |
|||
|
#
SHIM, CRANK 1
136-11561-00-07
|
$5.99 | ||
|
Unavailable |
|||
|
#
SHIM, CRANK 1
136-11561-00-08
|
$6.49 | ||
|
Unavailable |
|||
|
#19
BEARING
93306-30421-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
OIL SEAL, SD-TYPE
93102-20117-00
|
$5.49 | ||
|
Unavailable |
|||
|
#21
OIL SEAL, SW-TYPE (93103-28100)
93103-28011-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
O-RING
93210-180A6-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
COLLAR
90387-20163-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
GEAR, PRI DRIVE
389-16111-00-00
|
$26.12 | ||
|
Unavailable |
|||
|
#25
WASHER, CONICAL SPRING
90208-12015-00
Superseded by 90208-12800-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT
90179-12244-00
Superseded by 90179-12659-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
PISTON STD
466-11631-01-97
|
$102.99 | ||
|
Unavailable |
|||
|
#
PISTON 1 O/S 0.25
466-11635-01-00
|
$73.99 | ||
|
Unavailable |
|||
|
#
PISTON 2 O/S 0.50
466-11636-01-00
|
$73.99 | ||
|
Unavailable |
|||
|
#28
PIN, PISTON
183-11633-01-00
|
$21.99 | ||
|
Unavailable |
|||
|
#29
CIRCLIP
93450-13022-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
PISTON RINGSET STD
307-11601-01-00
|
$103.99 | ||
|
Unavailable |
|||
|
#
PISTON RINGSET 1ST
307-11601-11-00
|
$47.65 | ||
|
Unavailable |
|||
|
#
PISTON RINGSET 2ND
307-11601-21-00
|
$47.65 | ||
|
Unavailable |
|||
|
#31
BEARING, CYLINDER.#10
93310-11296-00
|
$25.99 | ||
|
Unavailable |
|||
|
#32
KEY, WOODRUFF
90280-03017-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
KEY, STRAIGHT
90282-05005-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
