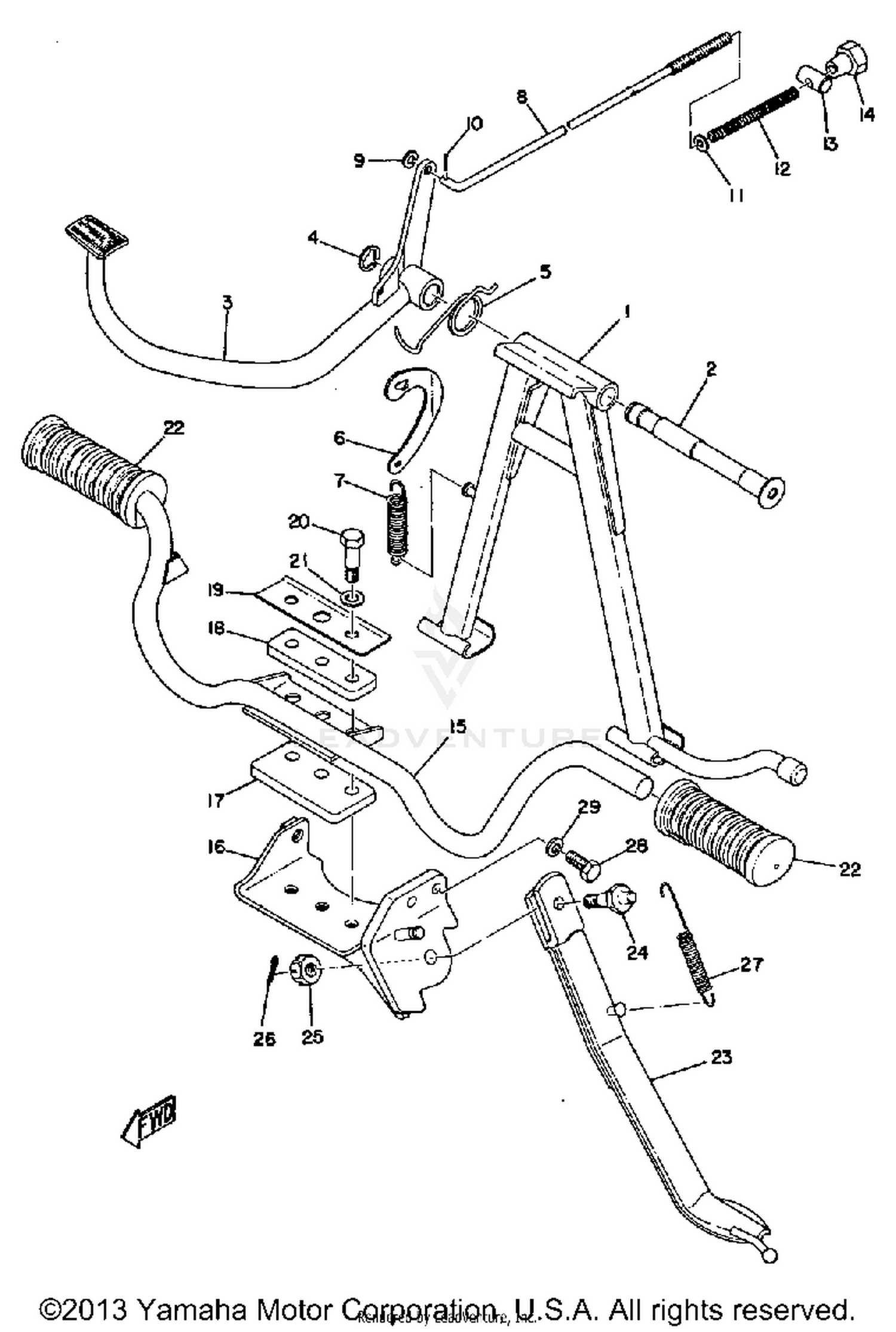

Stand Footrest Brake Pedal Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STAND, MAIN
307-27111-00-00
|
$48.99 | ||
|
Unavailable |
|||
|
#2
SHAFT, MAIN STAND
122-27112-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
PEDAL, BRAKE
1E7-27211-00-93
|
$21.99 | ||
|
Unavailable |
|||
|
#4
CIRCLIP
93430-12008-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, TORSION
90508-32056-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
LINK, MAIN STAND
307-27115-00-00
|
$2.58 | ||
|
Unavailable |
|||
|
#7
SPRING, TENSION
90506-29054-00
|
$4.55 | ||
|
Unavailable |
|||
|
#8
ROD, BRAKE
307-27231-00-00
|
$2.17 | ||
|
Unavailable |
|||
|
#9
WASHER, PLATE
90201-06038-00
Superseded by 90201-06431-00
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PLATE
90201-06038-00
Superseded by 90201-06431-00
|
$4.90 | ||
|
Unavailable |
|||
|
#12
SPRING, COMPRESSION
90501-10245-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN
90249-12008-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT
90179-06411-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
FOOTREST 1
396-27411-01-00
|
$28.30 | ||
|
Unavailable |
|||
|
#16
BRACKET, FOOTREST 1
396-27412-01-00
|
$16.99 | ||
|
Unavailable |
|||
|
#17
DAMPER, FOOTREST 2
132-27424-00-00
|
$4.40 | ||
|
Unavailable |
|||
|
#18
DAMPER, FOOTREST
132-27414-00-00
|
$3.36 | ||
|
Unavailable |
|||
|
#19
WASHER, FOOTREST
132-27417-00-00
|
$2.37 | ||
|
Unavailable |
|||
|
#20
BOLT (132-27416-00)
90109-08193-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLAIN
92990-10200-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#22
COVER, FOOTREST
307-27413-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#23
STAND, SIDE
307-27311-20-33
|
$31.04 | ||
|
Unavailable |
|||
|
#24
BOLT
90109-10399-00
|
$5.99 | ||
|
Unavailable |
|||
|
#25
NUT, CASTLE
95303-10900-00
Superseded by 95307-10900-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
PIN, COTTER
91490-20025-00
|
$1.99 | ||
|
Unavailable |
|||
|
#27
SPRING, TENSION
90506-29052-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT (661)
97313-08020-00
Superseded by 97013-08020-00
|
$1.10 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
