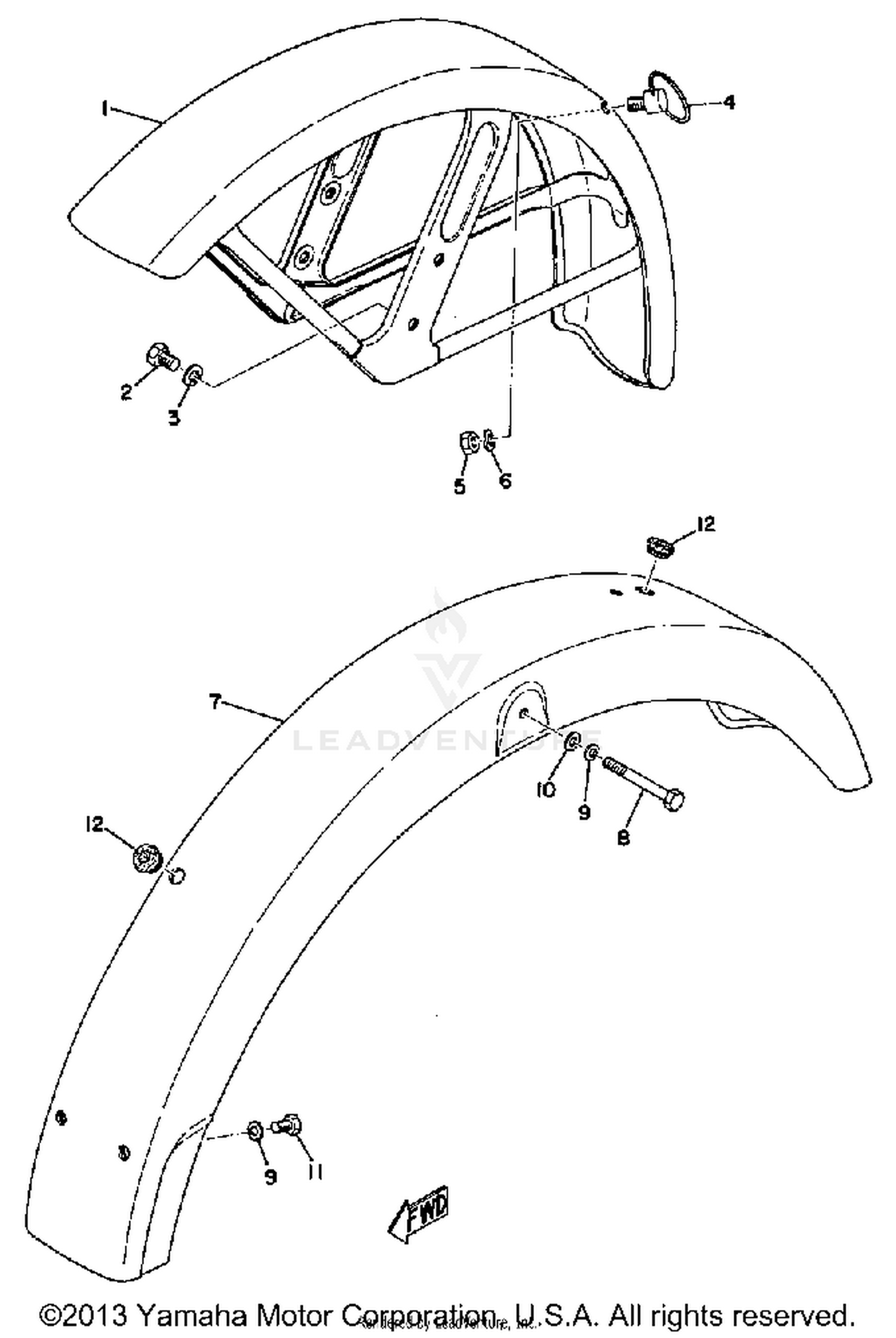

Front Fender Rear Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, FRONT
337-21510-00-93
|
$59.81 | ||
|
Unavailable |
|||
|
#2
BOLT
97301-08010-00
Superseded by 90101-08344-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOLDER, CABLE
174-21518-00-00
|
$3.20 | ||
|
Unavailable |
|||
|
#5
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#7
FENDER, REAR
307-21610-00-93
|
$77.86 | ||
|
Unavailable |
|||
|
#8
BOLT (661)
97313-06050-00
Superseded by 97013-06050-00
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#10
WASHER, PLATE
90201-06038-00
Superseded by 90201-06431-00
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
97013-06012-00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#12
GROMMET
90480-12013-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
