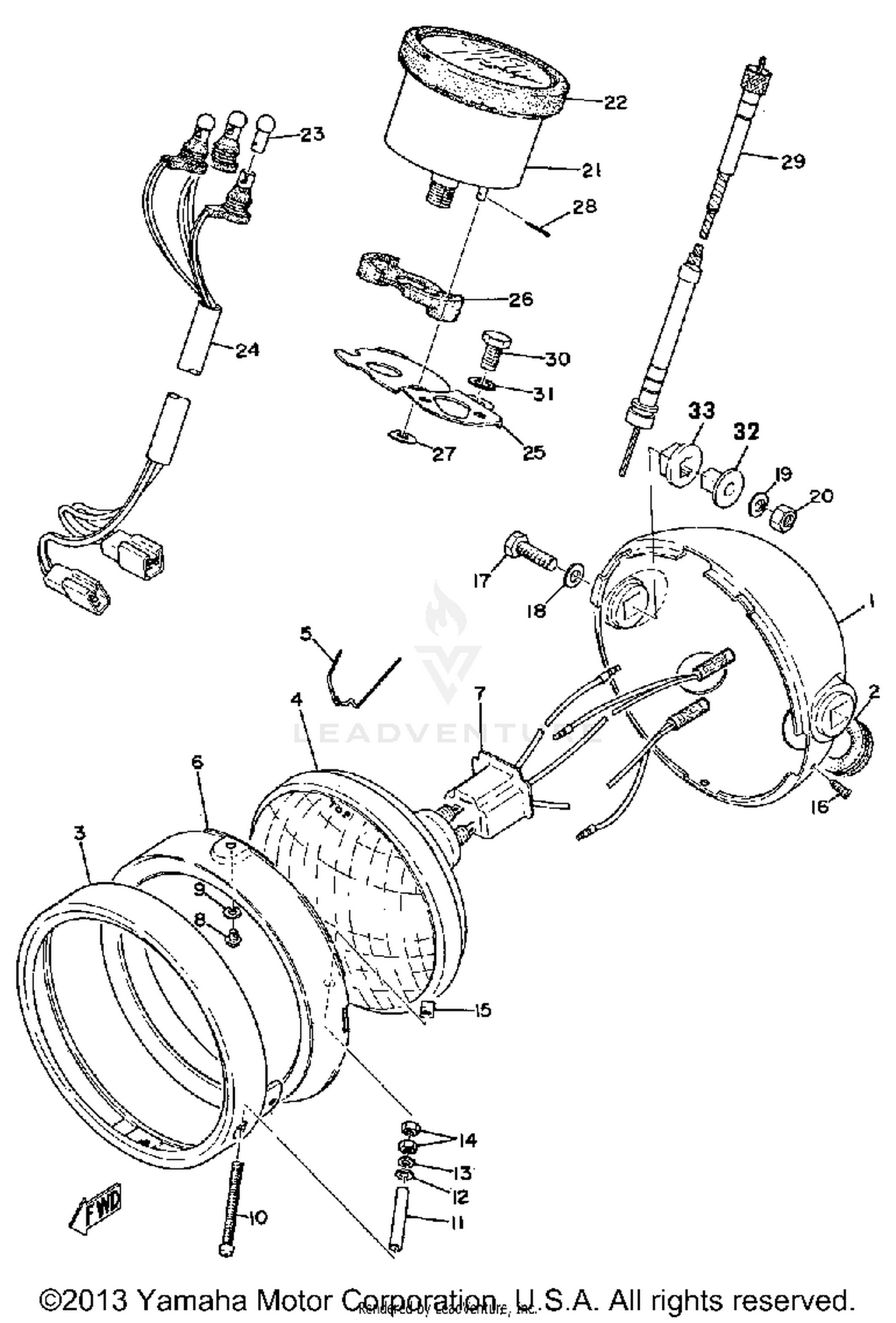

Head Lamp Speedometer Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BODY ASSEMBLY
507-84330-60-A9
|
$28.99 | ||
|
Unavailable |
|||
|
#
PULLY, ALTERNATOR 2 GROOVE
UNA-VAILA-BL-EI
|
|||
|
Unavailable |
|||
|
#2
GROMMET, WRHRNES
150-84153-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
RIM, HEADLIGHT
498-84115-60-00
|
$78.99 | ||
|
Unavailable |
|||
|
#4
LENS ASSEMBLY (507-84320-61)
507-84320-62-00
|
$27.99 | ||
|
Unavailable |
|||
|
#5
SPRING, SET
507-84324-60-00
Superseded by 1UY-84124-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
RING, RETAINING
498-84195-60-00
|
$45.99 | ||
|
Unavailable |
|||
|
#7
SOCKET
246-84312-60-00
|
$27.99 | ||
|
Unavailable |
|||
|
#8
RING, MOUNTING
438-84194-60-00
|
$4.50 | ||
|
Unavailable |
|||
|
#9
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, RIM ADJUSTING
90157-04001-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR, SCREW
438-84133-60-00
|
$6.99 | ||
|
Unavailable |
|||
|
#12
WASHER, PLAIN
92990-04200-00
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT
95301-04600-00
Superseded by 95307-04600-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, ADJUSTING
198-84334-60-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, COUNTERSUNK
90152-05005-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT
97013-08025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLAIN
92990-08200-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT
95333-08600-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#21
SPEEDOMETER ASSEMBLY
507-83510-70-00
|
$112.99 | ||
|
Unavailable |
|||
|
#22
DAMPER
336-83513-00-00
|
$26.99 | ||
|
Unavailable |
|||
|
#23
BULB (12V-3.4W)
123-83516-21-00
Superseded by 123-83516-21-XX
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#24
SOCKET CORD ASSEMBLY
507-83520-70-00
|
$22.32 | ||
|
Unavailable |
|||
|
#25
BRACKET, METER
507-83519-00-33
|
$3.76 | ||
|
Unavailable |
|||
|
#26
DAMPER
237-83523-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, SPEC''L SHAP (214-83524
90209-05029-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
CLIP
90468-10050-00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#29
SPEEDOMETER CABLE AS
252-83550-01-00
Superseded by 1JN-83550-02-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, HEX
97313-08018-00
Superseded by 90101-08691-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Unavailable |
|||
|
#32
COLLAR, BODY FTNG
507-84338-60-00
|
$3.76 | ||
|
Unavailable |
|||
|
#33
DAMPER, HDLT STAY
214-84143-60-00
|
$3.16 | ||
|
Unavailable |
|||
