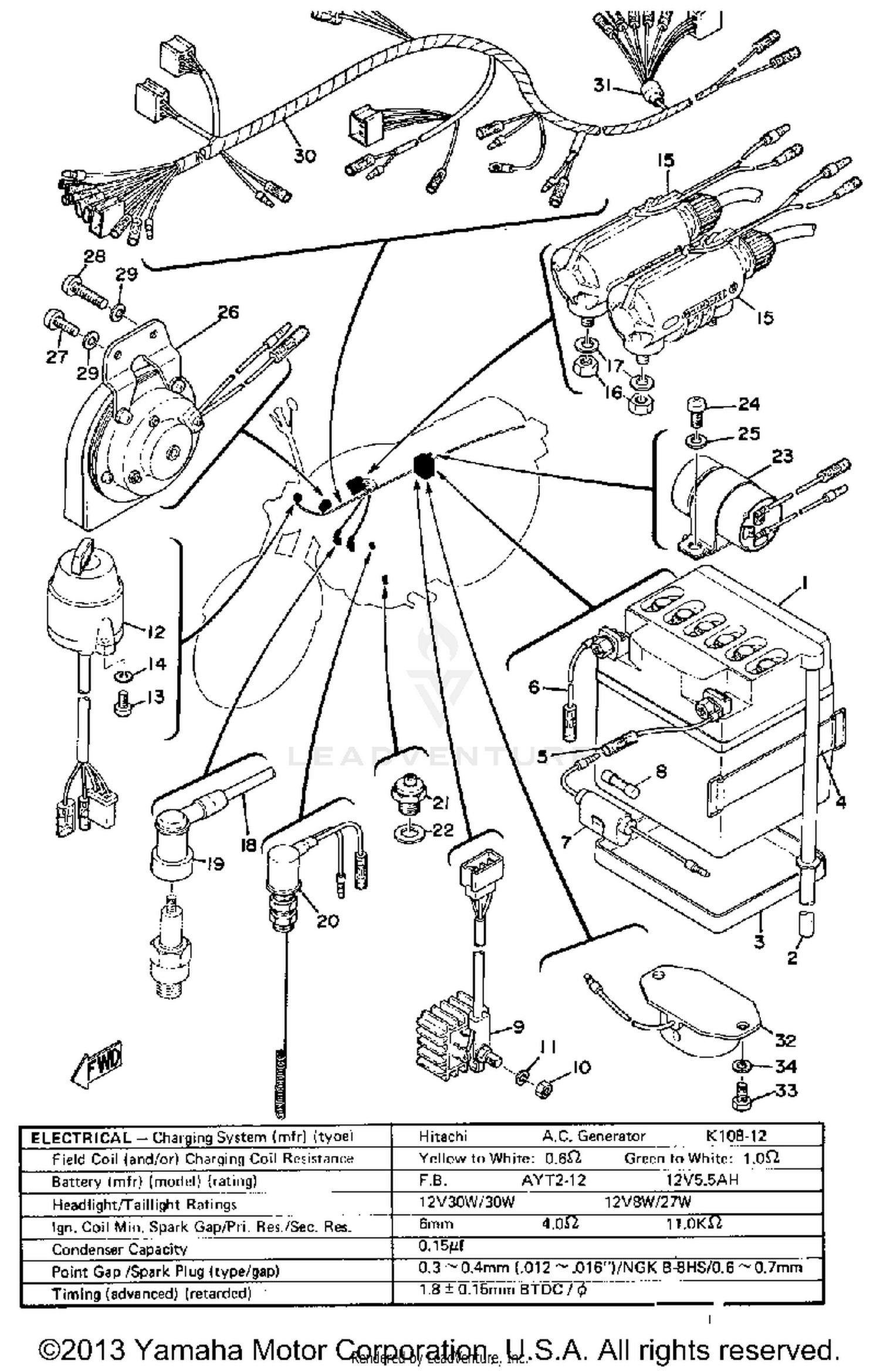

Electrcal Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
12N5.5A3B YUASA BAT
BTY-12N55-A3-B0
Superseded by 12N-55A3B-Y0-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PIPE, BREATHER
170-82112-00-00
|
$3.36 | ||
|
Unavailable |
|||
|
#3
SEAT, BATTERY
118-82122-00-00
|
$4.15 | ||
|
Unavailable |
|||
|
#4
BAND, BATTERY
120-82131-00-00
Superseded by 7H3-82131-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
WIRE, PLUS LEAD
307-82115-01-00
|
$2.17 | ||
|
Unavailable |
|||
|
#6
WIRE, MINUS LEAD
396-82116-00-00
|
$3.76 | ||
|
Unavailable |
|||
|
#7
FUSE HOLDER ASSY
2UJ-82150-01-00
Superseded by 2UJ-82150-02-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
FUSE
1A0-82161-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
RECTIFIER ASSEMBLY
357-81970-60-00
|
$133.99 | ||
|
Unavailable |
|||
|
#10
NUT
95380-05600-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#12
MAIN SWITCH ASSEMBLY
507-82508-31-00
|
$110.99 | ||
|
Unavailable |
|||
|
#13
SCREW, PAN HEAD
98580-05010-00
Superseded by 97885-05010-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Unavailable |
|||
|
#15
IGNITION COIL ASSEMBLY
254-82310-60-00
|
$196.99 | ||
|
Unavailable |
|||
|
#16
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#18
CORD, HIGHT TENSION 1
137-82341-01-00
|
$17.99 | ||
|
Unavailable |
|||
|
#19
PLUG CAP ASSY
56J-82370-00-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
STOP SWITCH ASSEMBLY
307-82530-09-00
|
$43.99 | ||
|
Unavailable |
|||
|
#21
REVERSE SWITCH ASSEMBLY
136-82540-00-00
Superseded by 136-82540-03-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
GASKET
90430-12207-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
FLASHER RELAY ASSEMBLY
278-83350-71-00
|
$80.99 | ||
|
Unavailable |
|||
|
#24
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#26
HORN
183-83371-21-00
|
$29.99 | ||
|
Unavailable |
|||
|
#27
SCREW, PAN HEAD
98503-06014-00
Superseded by 98507-06014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
SCREW, PAN HEAD
98511-06025-00
Superseded by 98517-06025-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#30
WIRE HARNESS ASSEMBLY
507-82590-31-00
|
$58.78 | ||
|
Unavailable |
|||
|
#31
COVER, CONNECTER
307-82599-01-00
|
$1.59 | ||
|
Unavailable |
|||
|
#32
VOLTAGE REG ASSEMBLY
507-81910-60-00
|
$166.99 | ||
|
Unavailable |
|||
|
#33
BOLT(3JP)
97011-06010-00
Superseded by 97017-06010-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#34
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
