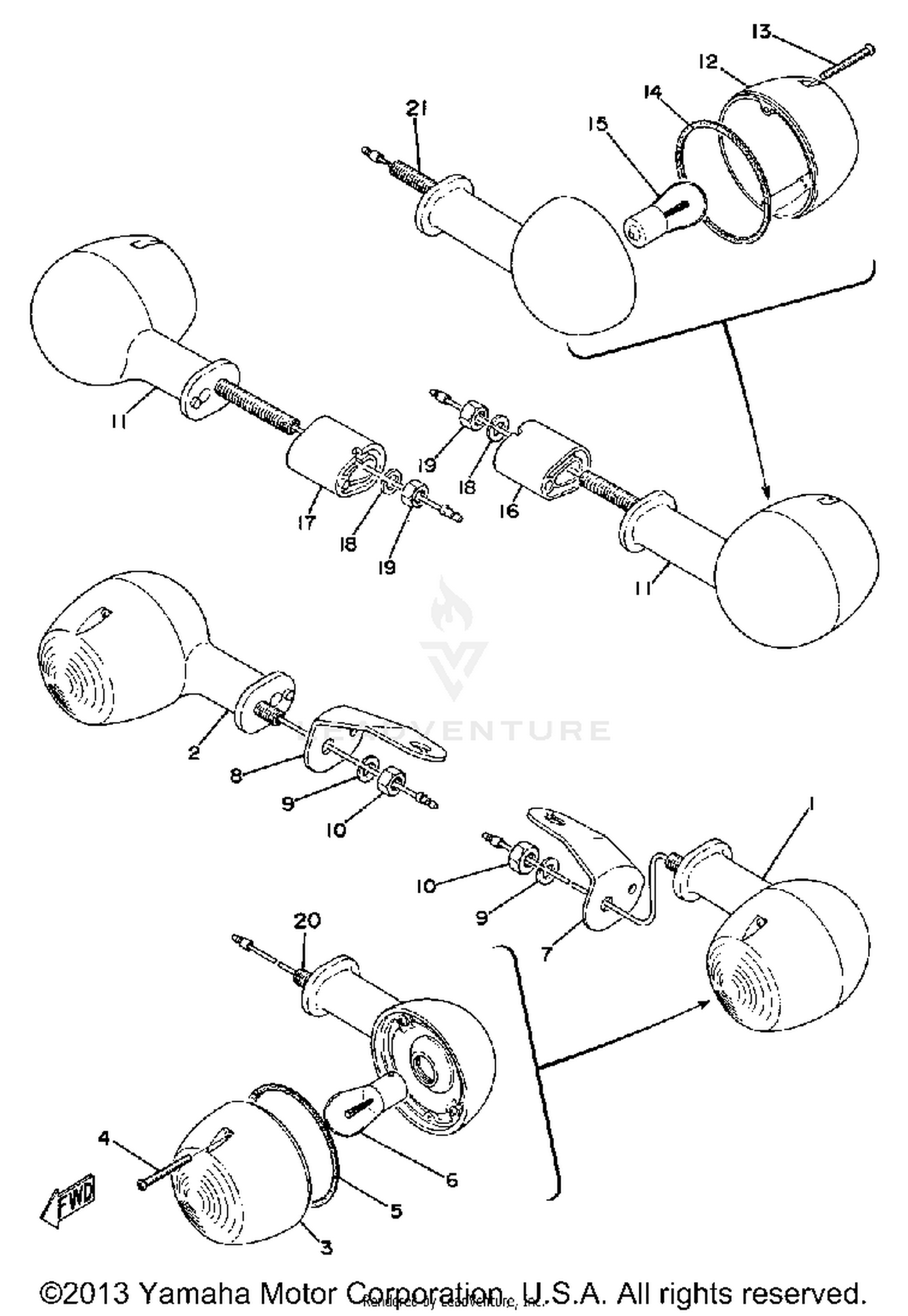

Flasher Lamp Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRT FLSHR LITE ASSEMBLY
137-83310-72-93
|
$31.99 | ||
|
Unavailable |
|||
|
#2
FRT FLSHR LITE ASSEMBLY
137-83310-72-93
|
$31.99 | ||
|
Unavailable |
|||
|
#3
LENS, FLASHER
183-83312-70-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, LENS FITTING
183-83333-71-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET, FLSHR LENS
183-83313-70-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BULB (12V-27W)
256-83311-70-XX
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#7
STAY, FLASHER 1
507-83318-00-00
|
$5.04 | ||
|
Unavailable |
|||
|
#8
STAY, FLASHER 2
507-83328-00-00
|
$5.64 | ||
|
Unavailable |
|||
|
#9
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT
95333-08600-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#11
R FLSHR LITE ASSEMBLY
397-83330-70-93
|
$38.38 | ||
|
Unavailable |
|||
|
#12
LENS, FLASHER
211-83332-75-00
|
$3.75 | ||
|
Unavailable |
|||
|
#13
SCREW, LENS FITTING
183-83333-71-00
|
$8.49 | ||
|
Unavailable |
|||
|
#14
GASKET, FLSHR LENS
183-83313-70-00
|
$8.49 | ||
|
Unavailable |
|||
|
#15
BULB (12V-27W)
256-83311-70-XX
|
$2.35 | ||
|
Unavailable |
|||
|
#16
COLLAR, FLASHER 1
260-83316-30-00
|
$47.99 | ||
|
Unavailable |
|||
|
#17
COLLAR, FLASHER 2
260-83326-30-00
|
$41.99 | ||
|
Unavailable |
|||
|
#18
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Unavailable |
|||
|
#19
NUT
95333-08600-00
|
$2.35 | ||
|
Unavailable |
|||
|
#20
BOLT, STUD
360-83367-09-00
|
$9.99 | ||
|
Unavailable |
|||
|
#21
BOLT, STUD
341-83367-09-00
|
$21.99 | ||
|
Unavailable |
|||
