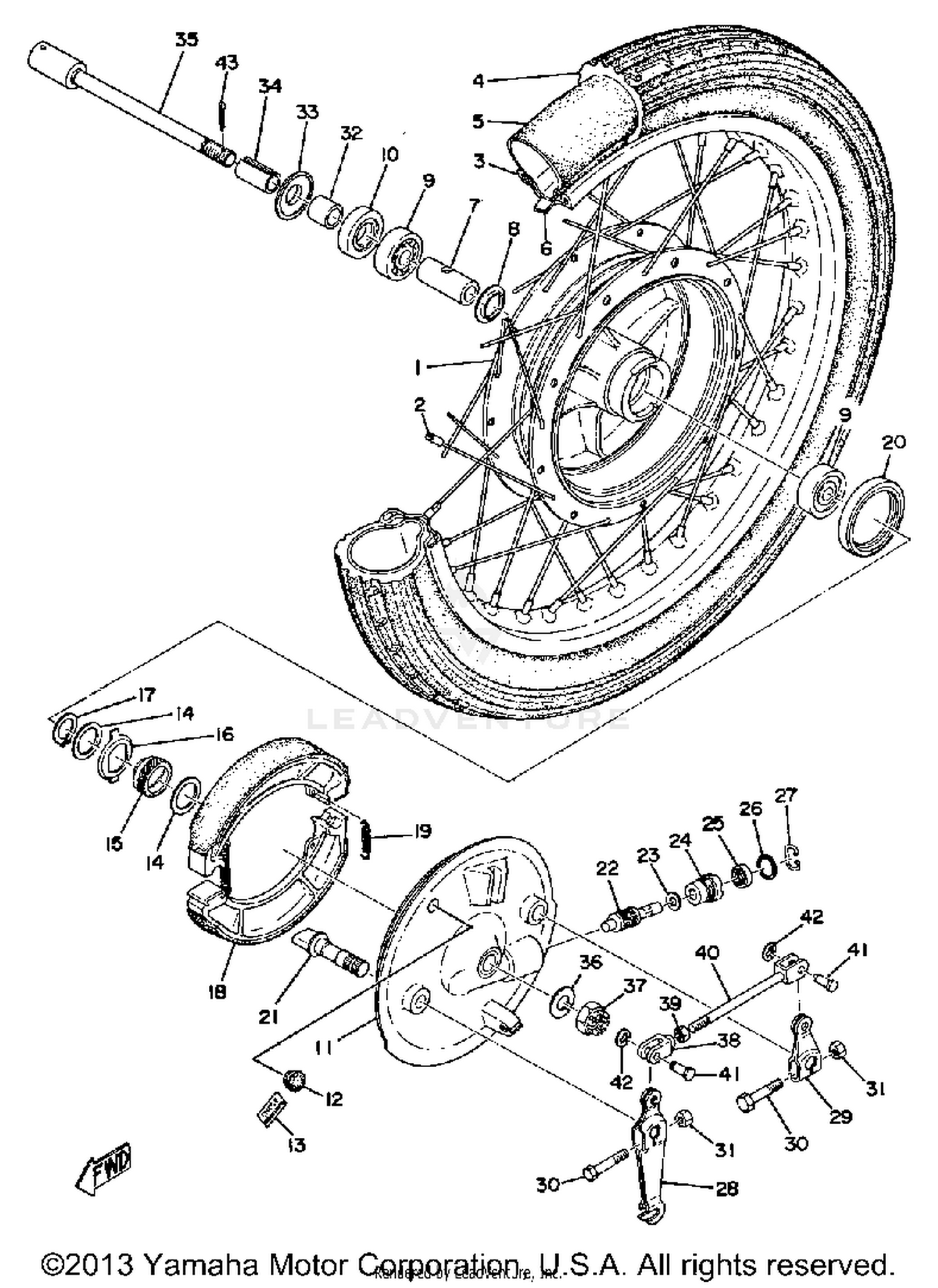

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, FRONT
307-25111-00-00
|
$67.50 | ||
|
Unavailable |
|||
|
#2
SPOKE SET, FRONT
307-25104-00-00
|
$18.86 | ||
|
Unavailable |
|||
|
#3
RIM 1.40X18
94414-18095-00
|
$34.99 | ||
|
Unavailable |
|||
|
#4
275X18 YOKO Y506
94127-18309-00
|
$20.99 | ||
|
Unavailable |
|||
|
#5
TUBE
94227-18010-00
|
$9.99 | ||
|
Unavailable |
|||
|
#6
BAND, RIM (2.50-18)
94325-18043-00
Superseded by 94340-18086-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPACER
90560-12261-00
Superseded by 90560-12138-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
FLANGE, SPACER
109-25315-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING
93306-30103-00
Superseded by 93306-30102-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
OIL SEAL
93102-18008-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BRAKE SHOE PLT ASSEMBLY
507-25120-10-00
|
$36.58 | ||
|
Unavailable |
|||
|
#12
GROMMET
90480-10068-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
LABEL, INDICATOR
437-25134-00-00
|
$1.59 | ||
|
Unavailable |
|||
|
#14
WASHER, PLATE
90201-20269-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
GEAR, DRIVE
307-25135-00-00
|
$3.92 | ||
|
Unavailable |
|||
|
#16
CLUTCH, METER
183-25149-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
CIRCLIP
99009-20400-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BRAKE SHOE SET
21L-W2535-00-00
|
$12.99 | ||
|
Unavailable |
|||
|
#19
SPRING, TENSION
90506-17328-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
OIL SEAL
93105-47007-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
CAMSHAFT
183-25351-00-00
|
$6.66 | ||
|
Unavailable |
|||
|
#22
GEAR, METER
307-25138-00-00
|
$4.56 | ||
|
Unavailable |
|||
|
#23
WASHER, PLATE
90201-07076-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
BUSH
109-25136-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
OIL SEAL
93104-07003-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
O-RING
93210-14104-00
Superseded by 93210-14579-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
RING, STOP
102-25137-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
LEVER, CAMSHAFT 1
307-25155-00-00
|
$10.80 | ||
|
Unavailable |
|||
|
#29
LEVER, CAMSHAFT 2
307-25156-00-00
|
$8.46 | ||
|
Unavailable |
|||
|
#30
BOLT,HEXAGON
97021-06030-00
Superseded by 97017-06030-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#31
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#32
COLLAR
90387-12095-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
COVER, HUB DUST
2K5-25118-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
COLLAR
90387-12099-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
AXLE, WHEEL
382-25181-01-00
|
$11.99 | ||
|
Unavailable |
|||
|
#36
WASHER, SPRING
92901-12100-00
Superseded by 92990-12100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
NUT, CASTLE
90171-12005-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
END, ROD 1
152-25163-00-00
|
$36.99 | ||
|
Unavailable |
|||
|
#39
NUT
95380-06700-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
ROD, CONNECTING
307-25161-00-00
|
$7.06 | ||
|
Unavailable |
|||
|
#41
PIN, SPEC''L SHAPE
90249-06095-00
|
$5.99 | ||
|
Unavailable |
|||
|
#42
CIRCLIP
99080-04600-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
PIN, COTTER
91401-30030-00
Superseded by 91490-30030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
