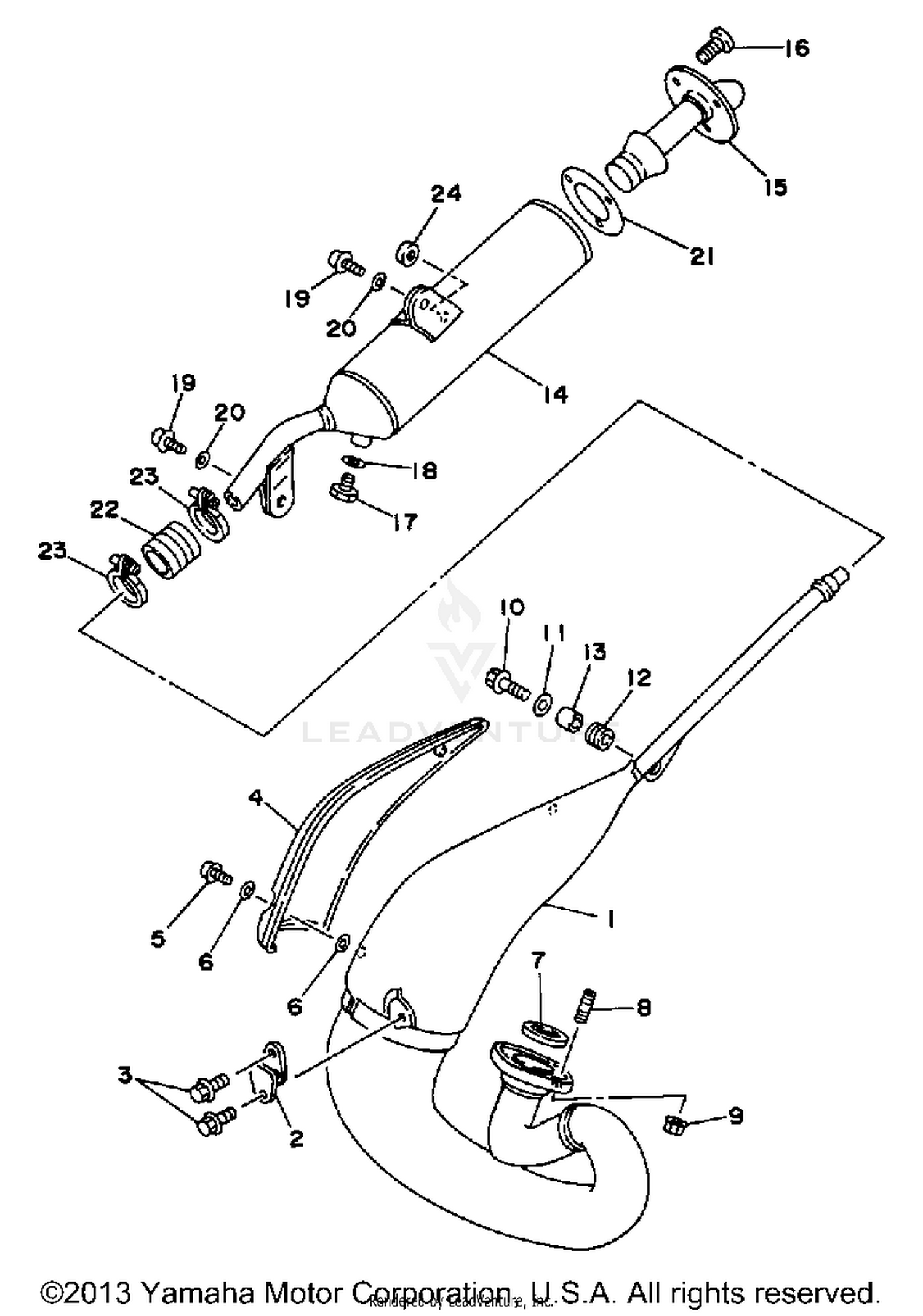

Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
EXHAUST PIPE ASSEMBLY L
3XP-14610-00-00
|
$381.08 | ||
|
Available to order. Add to View Price |
|||
|
#2
STAY, MUFFLER 1
565-14771-00-00
Superseded by 565-14771-01-00
|
$17.99 | ||
|
Unavailable |
|||
|
#3
BOLT, FLANGE
95816-06012-00
Superseded by 95817-06012-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#4
PROTECTOR, MUFF 1
3XP-14718-00-00
|
$52.99 | ||
|
Unavailable |
|||
|
#5
SCREW, BIND
98906-06010-00
Superseded by 98907-06010-00
|
$1.55 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE
90202-05187-00
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET, EXHAUST PIPE
3PA-14613-10-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, STUD
90116-08042-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT
90179-08270-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE
95816-06025-00
Superseded by 95817-06025-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PLATE
90201-060A3-00
Superseded by 90201-06086-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
GROMMET
90480-18411-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR
90387-105L0-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SILENCER, EXHAUST
4BF-14753-00-00
|
$349.99 | ||
|
Unavailable |
|||
|
#15
PIPE, OUTLET
2GU-14752-00-00
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, BIND
98906-06010-00
Superseded by 98907-06010-00
|
$1.55 | ||
|
Unavailable |
|||
|
#17
BOLT
90101-06576-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLATE
92906-06600-00
Superseded by 92907-06600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT
90109-085E2-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLATE
90201-081H4-00
Superseded by 90201-08326-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
GASKET, EXHAUST PIPE
2GU-14613-00-00
Superseded by 2GU-14613-10-00
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#22
GASKET, MUFFLER
3XP-14714-00-00
|
$31.99 | ||
|
Unavailable |
|||
|
#23
CLAMP, HOSE
90460-37026-00
Superseded by 90460-37130-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
STOPPER, MAIN STAND
157-27114-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
