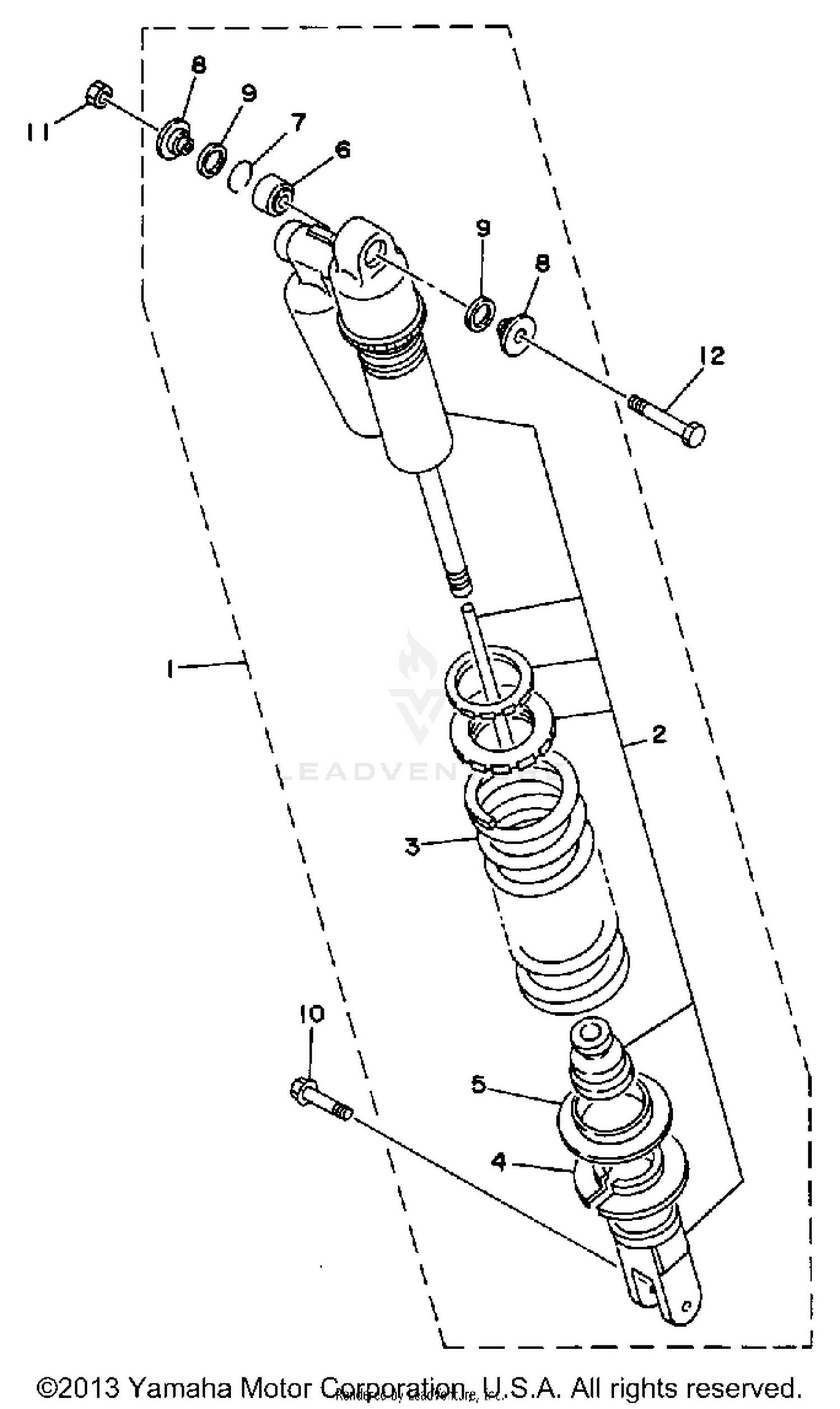

1992 Yamaha WR 200 REAR SHOCKS OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHK ASY, RR
4BF-22210-00-P0
Superseded by 4BF-22210-10-P0
|
$1,101.99 | ||
|
Unavailable |
|||
|
#2
DAMPER SUB ASSEMBLY
4BF-22201-00-00
|
$606.99 | ||
|
Unavailable |
|||
|
#3
SPRING (VIVIDF MAGNETA SOLID
4BF-22212-00-P0
|
$230.99 | ||
|
Unavailable |
|||
|
#4
GUIDE, SPRING 1
3XP-22214-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#5
GUIDE, SPRING 2
3XP-22224-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BEARING (93399-99934-00)
93399-99934-00
Superseded by 93399-999T3-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CIRCLIP
93440-30113-00
|
$1.55 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR
90387-100Y3-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER
23X-22211-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE
90105-10614-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, U FLANGE
95611-10200-00
Superseded by 95607-10200-00
|
$3.85 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT 1
3SP-22241-00-00
|
$7.99 | ||
|
Unavailable |
|||
