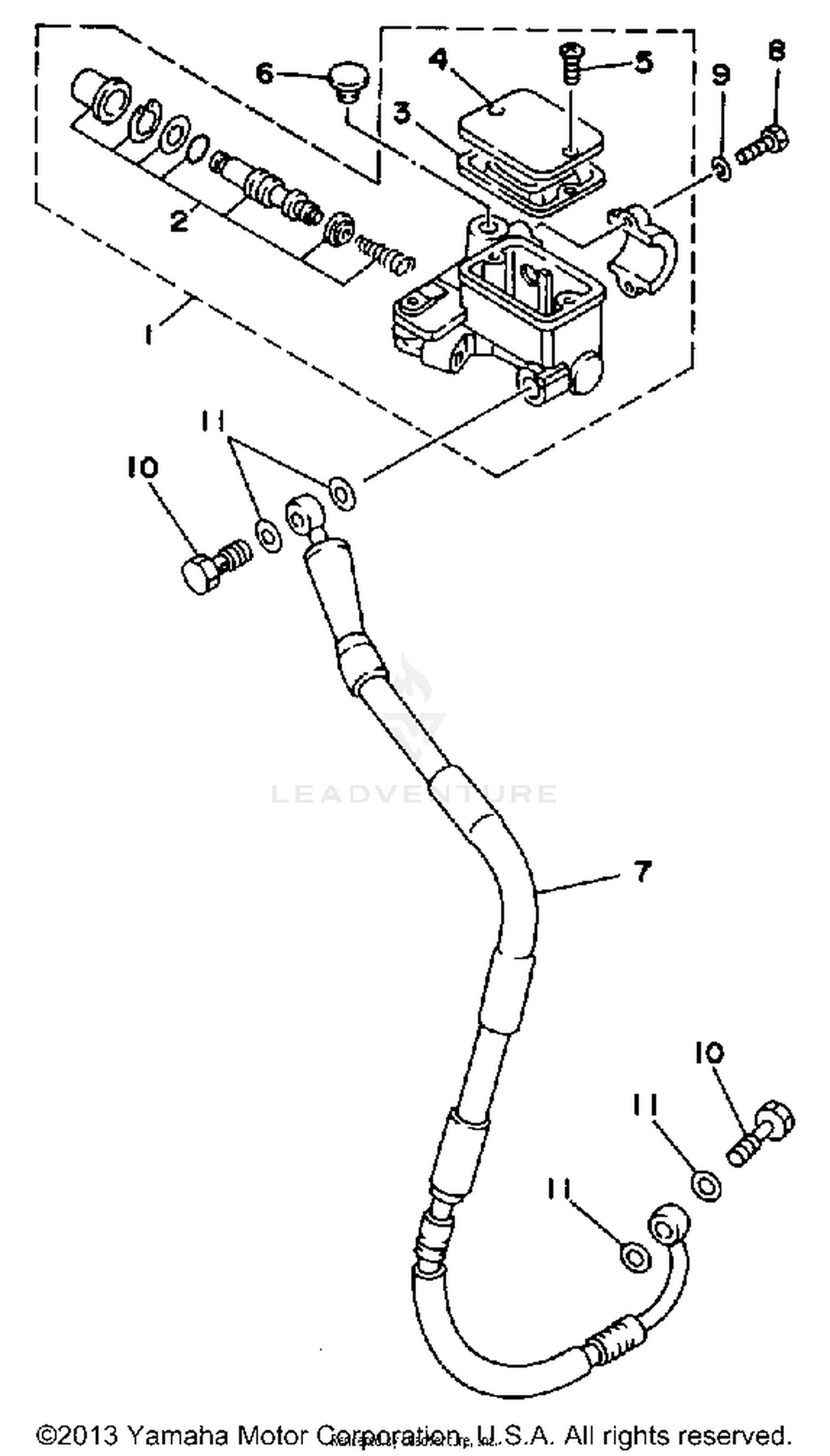

Front Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MSTR CYLINDER ASSEMBLY
3XP-2583T-00-00
|
$226.99 | ||
|
Unavailable |
|||
|
#2
CYL KIT,MASTER
3XP-W0041-00-00
Superseded by 5VK-25807-00-00
|
$67.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
DIAPHRAGM, RESERVOIR
55U-25854-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAP, RESERVOIR (FRON
2KF-25852-01-00
Superseded by 2KF-25852-02-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, FLAT HEAD
98706-04012-00
Superseded by 98707-04012-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLUG
90338-09012-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOSE, BRAKE 1
4BF-25872-00-00
Superseded by 99999-03042-00
|
$259.99 | ||
|
Unavailable |
|||
|
#8
BOLT
97016-06025-00
Superseded by 97017-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, UNION
90401-10034-00
Superseded by 90401-10159-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PLATE
90201-10118-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
