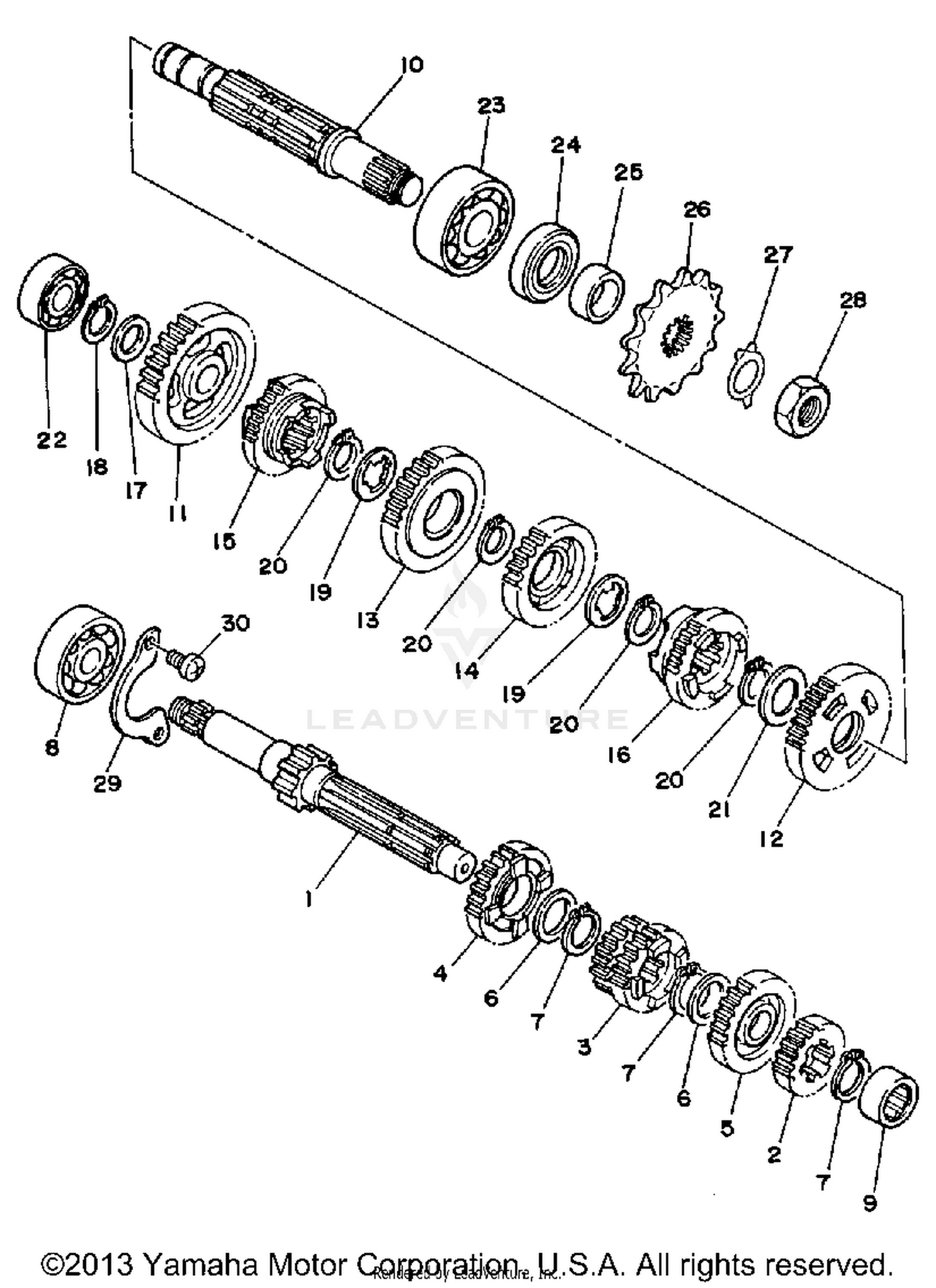

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
AXLE, MAIN
4BF-17411-00-00
|
$113.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GEAR, 2ND PINION
3BN-17121-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#3
GEAR, 3RD PINION
3BN-17131-01-00
|
$107.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
GEAR, 5TH PINION
3BN-17151-01-00
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
GEAR, 6TH PINION
3BN-17161-02-00
|
$67.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE (T=1.0)
90201-20266-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
CIRCLIP
93410-20038-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING
93306-20417-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING, CYL. (2TV)
93311-31567-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
AXLE, DRIVE
3BN-17421-00-00
|
$116.41 | ||
|
Unavailable |
|||
|
#11
GEAR, 1ST WHEEL
4BF-17211-00-00
|
$75.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
GEAR, 2ND WHEEL
3BN-17221-00-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
GEAR, 3RD WHEEL
3BN-17231-01-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
GEAR, 4TH WHEEL
3XP-17241-00-00
|
$91.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
GEAR, 5TH WHEEL
3BN-17251-02-00
|
$97.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
GEAR, 6TH WHEEL
3XP-17261-00-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLATE (T=1.0)
90201-154E8-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
CIRCLIP
99009-15400-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER
90209-18135-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
CIRCLIP
93410-22039-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLATE
90201-22555-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
BEARING
93306-20211-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BEARING
93306-30421-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
OIL SEAL
93102-26042-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
COLLAR
90387-205W8-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
SPROCKET, DRIVE (13T)
9383A-13031-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, LOCK
90215-20283-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT, SPEC''L SHAPE
90179-16613-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
PLATE, COVER
4BF-17471-00-00
|
$5.99 | ||
|
Unavailable |
|||
|
#30
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
