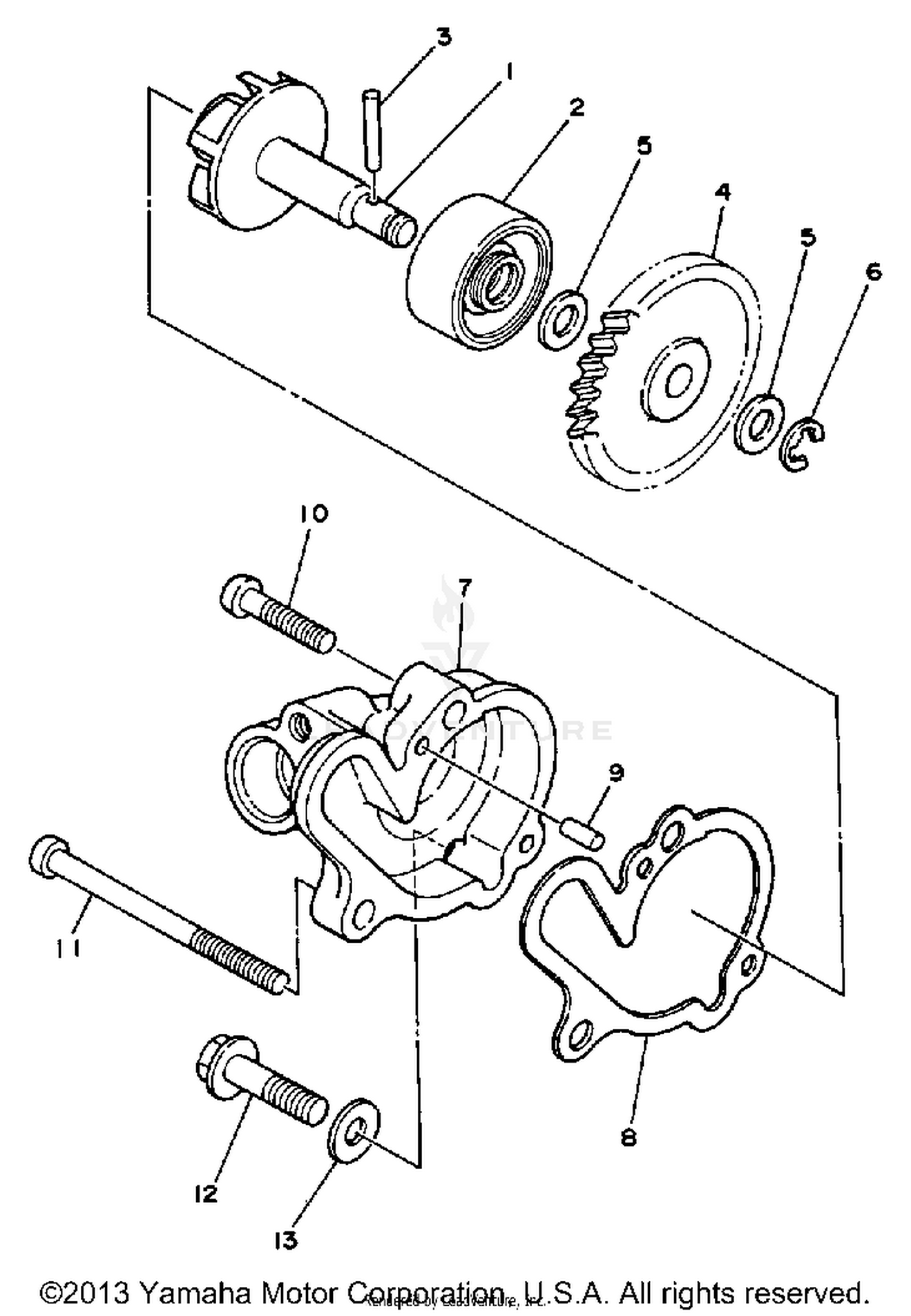

Water Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
IMPELLER SHAFT ASSY
36F-12450-00-00
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
OIL SEAL
93103-10168-00
Superseded by 93103-10011-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN, DOWEL
93603-22028-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#4
GEAR, IMPELLER SHAF
2TV-12459-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE
90201-08512-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLIP
99080-07600-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#7
COVER, HOUSING
3BN-12422-11-00
|
$113.99 | ||
|
Unavailable |
|||
|
#8
GASKET,HSNG CVR 2
3BN-12428-10-00
Superseded by 3BN-12428-11-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN, DOWEL
93604-10011-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, PAN HEAD
98511-06025-00
Superseded by 98517-06025-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, PAN HEAD
98580-06565-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE
95811-06025-00
Superseded by 95817-06025-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET
90430-06166-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
