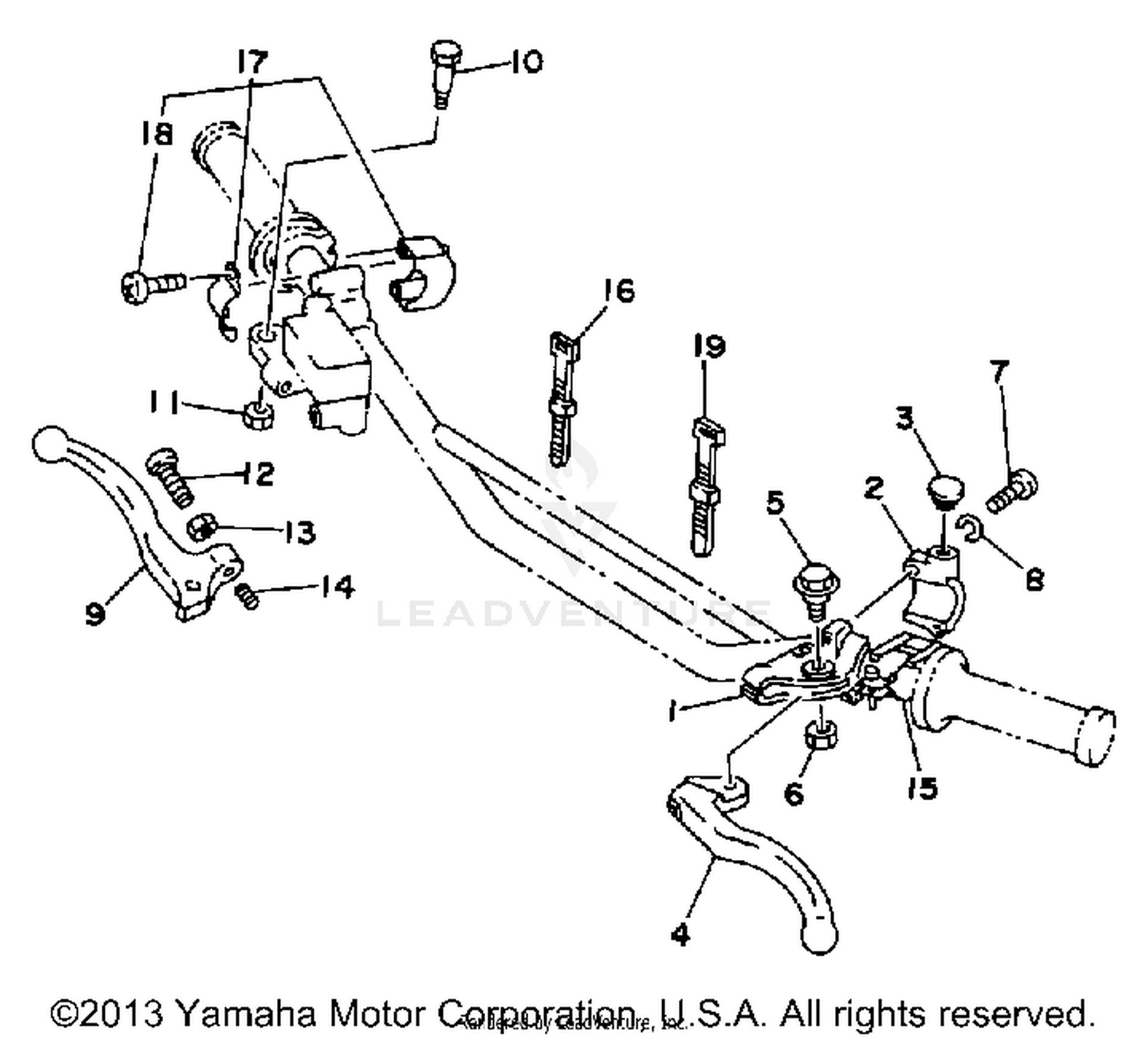

Handle Switch Lever Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOLDER, LEVER 1
1LN-82911-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
HOLDER, LEVER LOWER 1
33G-82913-00-00
Superseded by 33G-82913-01-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PLUG
90338-09012-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
LEVER 1
23X-83912-00-00
Superseded by 23X-83912-02-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
90109-06799-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT, U
95616-06100-00
Superseded by 95617-06100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, PAN HEAD
98506-05020-00
Superseded by 98517-05020-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, SPRING
92906-05100-00
Superseded by 92907-05100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
LEVER RH
3JD-83922-00-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
90109-062A8-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, U
95616-06100-00
Superseded by 95617-06100-00
|
$7.49 | ||
|
Unavailable |
|||
|
#12
SCREW
90149-06131-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT
90170-06355-00
Superseded by 90170-06010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING, COMPRESSION
90501-10312-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SWITCH, HANDLE 1
23X-83976-00-00
Superseded by 23X-83976-01-00
|
$35.99 | ||
|
Unavailable |
|||
|
#16
BAND, SWITCH CORD
437-83936-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
SWITCH, HANDLE 1
4BF-83976-00-00
|
$48.99 | ||
|
Unavailable |
|||
|
#18
SCREW,PANHEAD
98506-04012-00
Superseded by 98517-04012-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#19
BAND, SWITCH CORD
437-83936-01-00
|
$7.49 | ||
|
Unavailable |
|||
