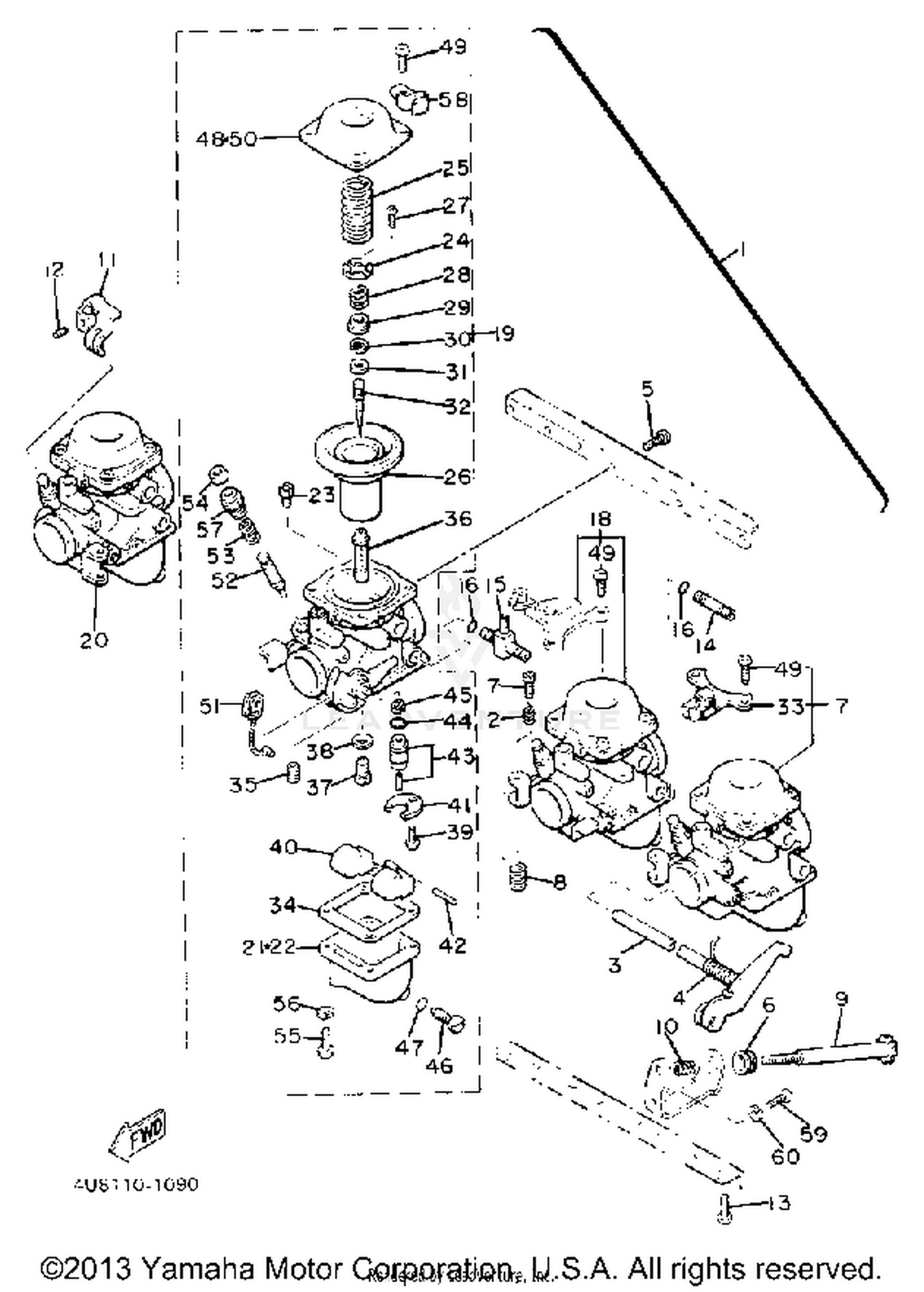

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR ASY
4U8-14900-00-00
|
|||
|
Unavailable |
|||
|
#2
SPRING, THROTTLE STOP
3F7-14133-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
LEVER, STARTER 1
4G0-14975-00-00
|
$21.78 | ||
|
Unavailable |
|||
|
#4
SPRING
4G0-14938-00-00
|
$3.76 | ||
|
Unavailable |
|||
|
#5
SCREW, PAN HEAD
98580-05010-00
Superseded by 97885-05010-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#6
BUSH
4G0-14998-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#7
STOP SCREW SET
31A-1490K-00-00
Superseded by 36Y-1490K-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#8
SPRING, AIR ADJUSTING
137-14134-00-00
|
$4.58 | ||
|
Unavailable |
|||
|
#9
THROTTLE SCREW SET
31A-14103-00-00
|
$45.99 | ||
|
Unavailable |
|||
|
#10
SPRING, THRTL STOP
143-14133-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#11
LEVER, STARTER
4G0-14905-00-00
|
$8.28 | ||
|
Unavailable |
|||
|
#12
SCREW, STARTER LEVER 2
584-14991-00-00
|
$6.90 | ||
|
Unavailable |
|||
|
#13
SCREW, PAN HEAD
98503-06014-00
Superseded by 98507-06014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIPE, STARTER CON
4G0-14988-00-00
|
$40.99 | ||
|
Unavailable |
|||
|
#15
PIPE, STARTER CON
4U8-14988-00-00
|
$96.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
O-RING
822-14147-00-00
Superseded by 36Y-14147-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
CARBURETOR ASSEMBLY 1
4U8-14901-00-00
|
$183.99 | ||
|
Unavailable |
|||
|
#18
CARBURETOR ASSEMBLY 2
4U8-14902-00-00
|
$157.99 | ||
|
Unavailable |
|||
|
#19
CARBURETOR ASSEMBLY 3
4U8-14903-00-00
|
$183.99 | ||
|
Unavailable |
|||
|
#20
CARBURETOR ASSEMBLY 4
4U8-14904-00-00
|
$183.99 | ||
|
Unavailable |
|||
|
#21
BODY, FLOAT CHAMBER
4G0-14981-07-00
|
$38.99 | ||
|
Unavailable |
|||
|
#22
HOLDER
4G0-14982-07-00
|
$35.99 | ||
|
Unavailable |
|||
|
#23
JET, PILOT AIR (#170)
3G2-14231-34-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
SEAT, SPRING
4U8-14936-00-00
|
$3.57 | ||
|
Unavailable |
|||
|
#25
SPRING, DIAPHRAGM
4U8-14933-00-00
|
$27.99 | ||
|
Unavailable |
|||
|
#26
DIAPHRAGM ASSEMBLY
4G0-14940-00-00
|
$371.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW, PAN HEAD
97802-03008-00
Superseded by 98580-03008-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#28
SPRING
3F7-14589-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER
2N6-14227-01-00
|
$11.99 | ||
|
Unavailable |
|||
|
#30
CLIP
164-14137-00-00
Superseded by 3FA-14137-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
RING
2N6-14918-01-00
|
$16.99 | ||
|
Unavailable |
|||
|
#32
NEEDLE
443-14116-11-00
|
$15.99 | ||
|
Unavailable |
|||
|
#33
BRACKET, THROTTLE 1
4G0-14926-00-00
|
$22.72 | ||
|
Unavailable |
|||
|
#34
GASKET, FLOAT CHAMBE
4G0-14984-00-00
Superseded by 46X-14984-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
JET, PILOT (35)
4G0-14142-35-A0
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
NOZZLE, MAIN
4U8-14941-38-00
|
$18.44 | ||
|
Unavailable |
|||
|
#37
JET, MAIN (112.5)
620-1423A-73-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
WASHER, MAIN JET
137-14153-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
SCREW, PAN HEAD
98511-04006-00
Superseded by 98517-04006-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#40
FLOAT
4G0-14985-00-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
PLATE
2H0-14146-00-00
|
$6.70 | ||
|
Available to order. Add to View Price |
|||
|
#42
PIN, FLOAT
537-14186-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
NEEDLE VALVE SET
25G-14107-20-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
O-RING
8F2-14147-00-00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#45
NET, FILTER
1J7-14994-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
PLUG, DRAIN
2L1-14191-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#47
O-RING
214-14147-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#48
COVER, DIAPHRAGM
4G0-14958-00-00
|
$21.12 | ||
|
Unavailable |
|||
|
#49
SCREW, PAN HEAD
98580-05010-00
Superseded by 97885-05010-00
|
$2.80 | ||
|
Unavailable |
|||
|
#50
COVER, DIAPHRAGM
4U8-14958-00-00
|
$25.60 | ||
|
Unavailable |
|||
|
#51
CABLE
4G0-14130-00-00
|
$74.14 | ||
|
Unavailable |
|||
|
#52
PLUNGER, STARTER
4G0-14171-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#53
SPRING, PLUNGER
256-14135-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#54
COVER, PLUNGER CAP
306-14173-00-00
|
$6.48 | ||
|
Unavailable |
|||
|
#55
SCREW, PAN HEAD
98503-04014-00
Superseded by 98580-04014-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#56
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#57
CAP, PLUNGER
584-14176-00-00
|
$11.99 | ||
|
Unavailable |
|||
|
#58
CLIP, PIPE
4G0-14139-00-00
|
$4.15 | ||
|
Unavailable |
|||
|
#59
SCREW, PAN HEAD
98580-05010-00
Superseded by 97885-05010-00
|
$2.80 | ||
|
Unavailable |
|||
|
#60
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
