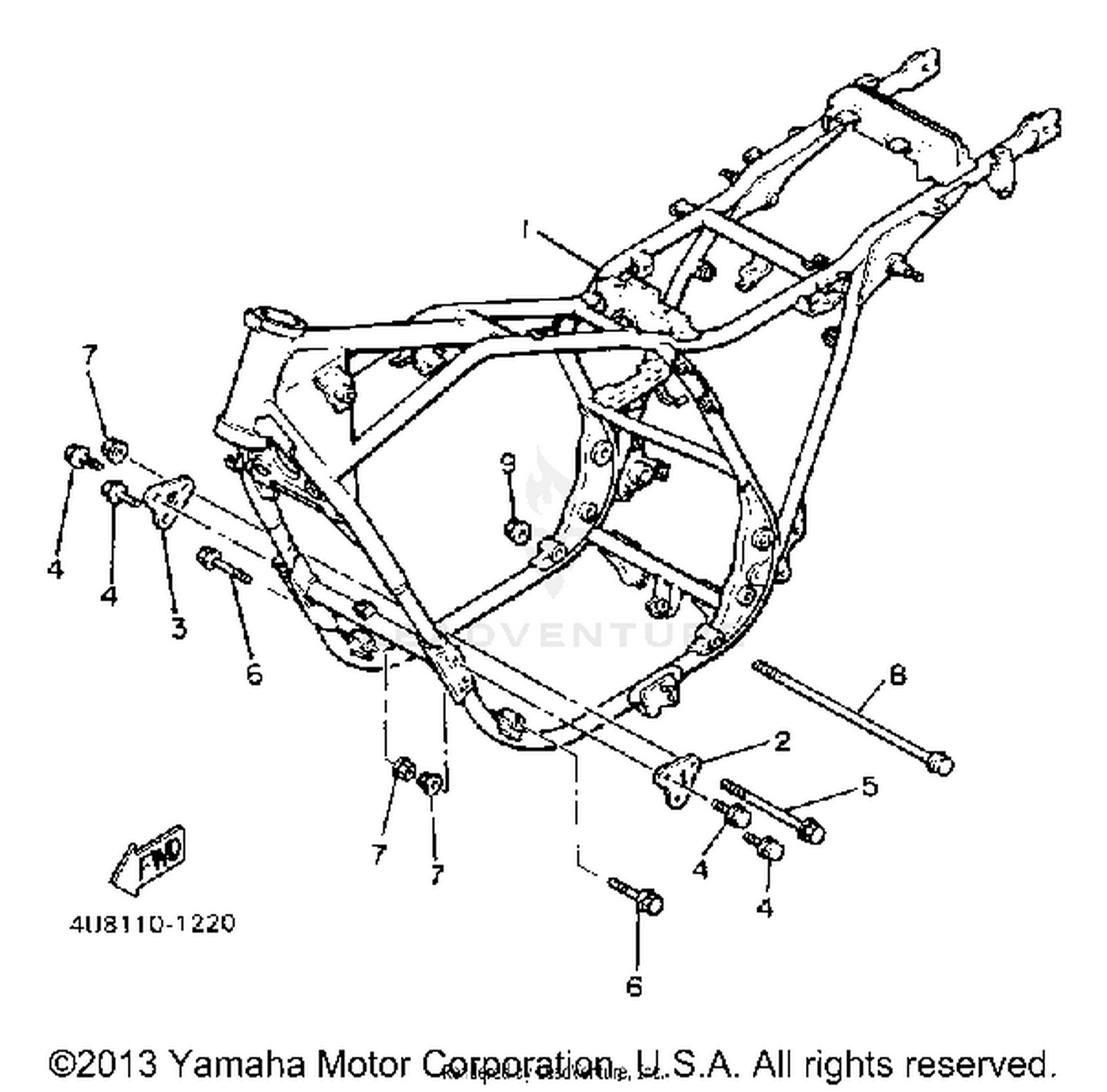

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME
4U8-21110-00-33
|
$448.99 | ||
|
Unavailable |
|||
|
#2
STAY, ENGINE 2
4G0-21315-00-R4
|
$8.99 | ||
|
Unavailable |
|||
|
#3
STAY, ENGINE 3
4G0-21316-00-R4
|
$5.99 | ||
|
Unavailable |
|||
|
#4
BOLT, FLANGE
90105-08155-00
Superseded by 90105-08066-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, WASHER BASED
90105-10401-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE
90105-10170-00
Superseded by 90105-10737-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT
90179-10247-00
Superseded by 90179-10658-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, WASHER BASED
90105-12171-00
|
$26.99 | ||
|
Unavailable |
|||
|
#9
NUT
90179-12421-00
Superseded by 90179-12657-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
