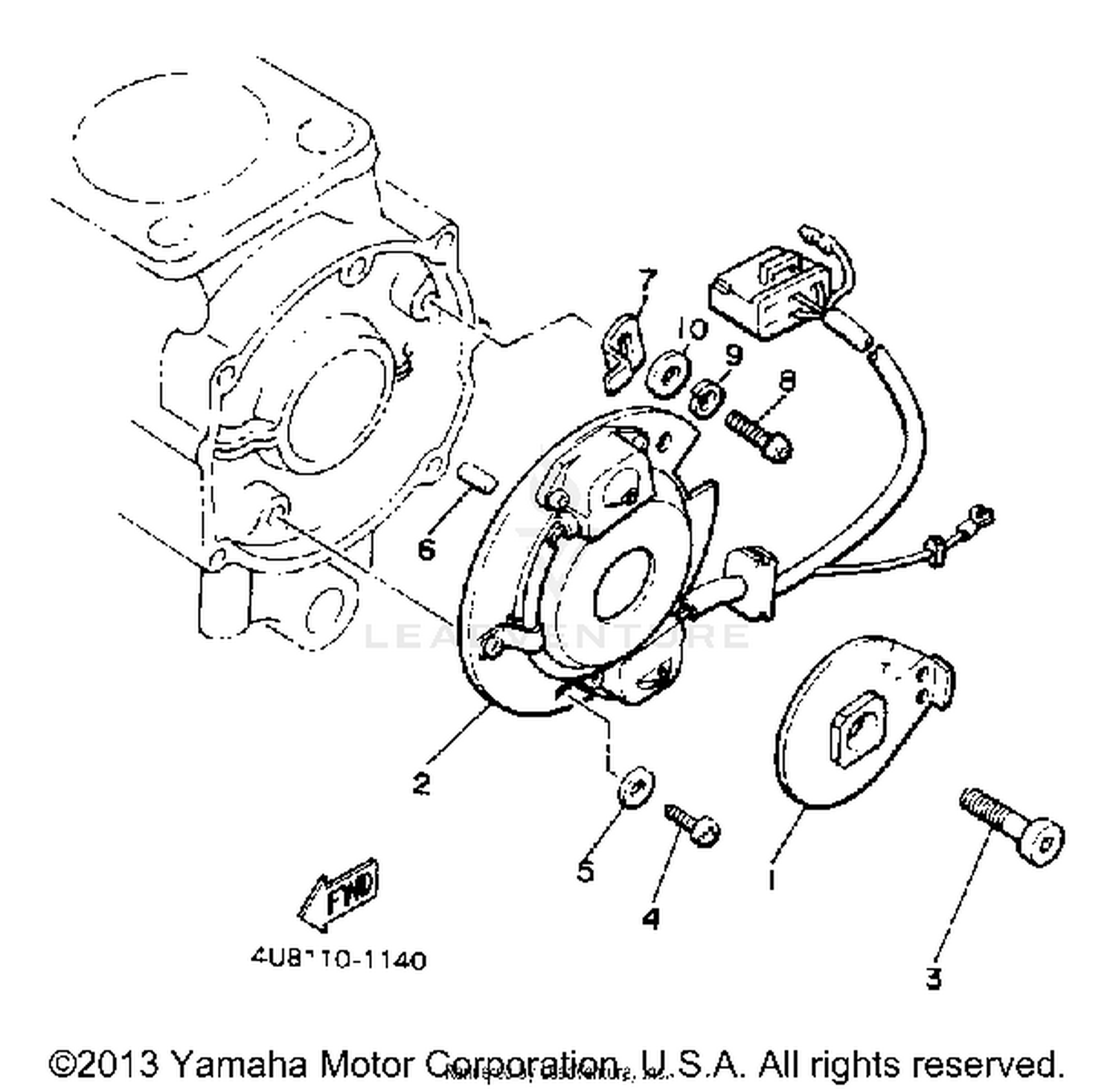

Pickup Coil Governor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ROTOR
4U8-81673-10-00
|
$119.99 | ||
|
Unavailable |
|||
|
#2
BASE, PICKUP
4U8-81671-10-00
|
$173.99 | ||
|
Unavailable |
|||
|
#3
BOLT
91316-08030-00
Superseded by 91317-08030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLAIN
92990-06200-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN, DOWEL
93604-08071-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE, TIMING
4H7-81632-00-00
|
$2.60 | ||
|
Unavailable |
|||
|
#8
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.10 | ||
|
Unavailable |
|||
|
#9
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
