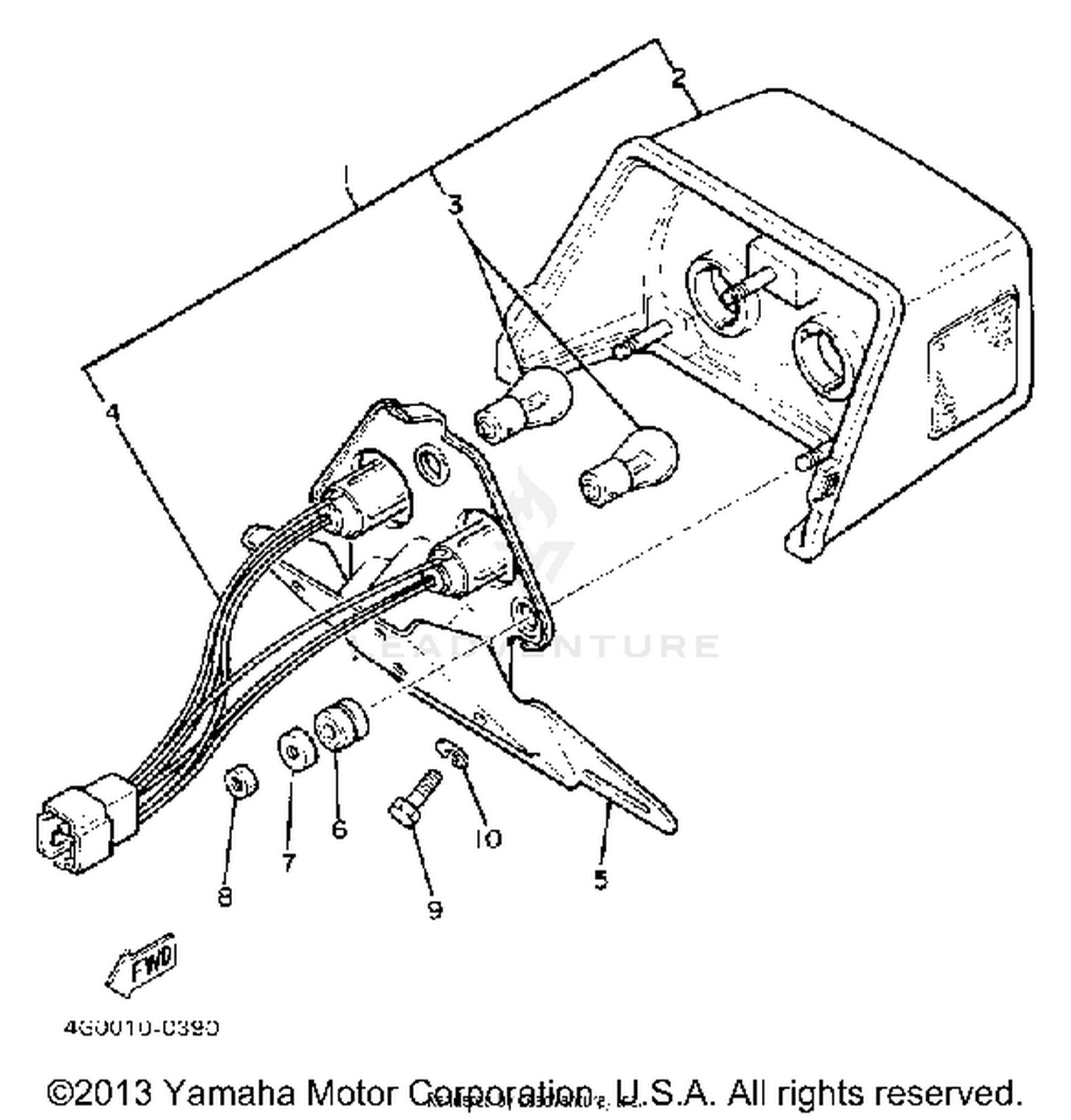

Taillight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TAILLIGHT UNIT ASSEMBLY
4U8-84710-60-00
|
$108.99 | ||
|
Unavailable |
|||
|
#2
TAILLIGHT UNIT ASSEMBLY
4U8-84710-60-00
|
$108.99 | ||
|
Unavailable |
|||
|
#3
BULB (12V-27/8W)
256-84714-61-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
CORD ASY
4G0-84735-00-00
Superseded by 4SV-84735-00-00
|
$32.99 | ||
|
Unavailable |
|||
|
#5
BRACKET, LICENSE
4U8-84751-60-00
|
$52.82 | ||
|
Unavailable |
|||
|
#6
WASHER, SPECIAL
4G0-84754-00-00
|
$4.55 | ||
|
Unavailable |
|||
|
#7
WASHER PLAIN
4G0-84725-00-00
Superseded by 90201-06380-00
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
97013-06012-00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
