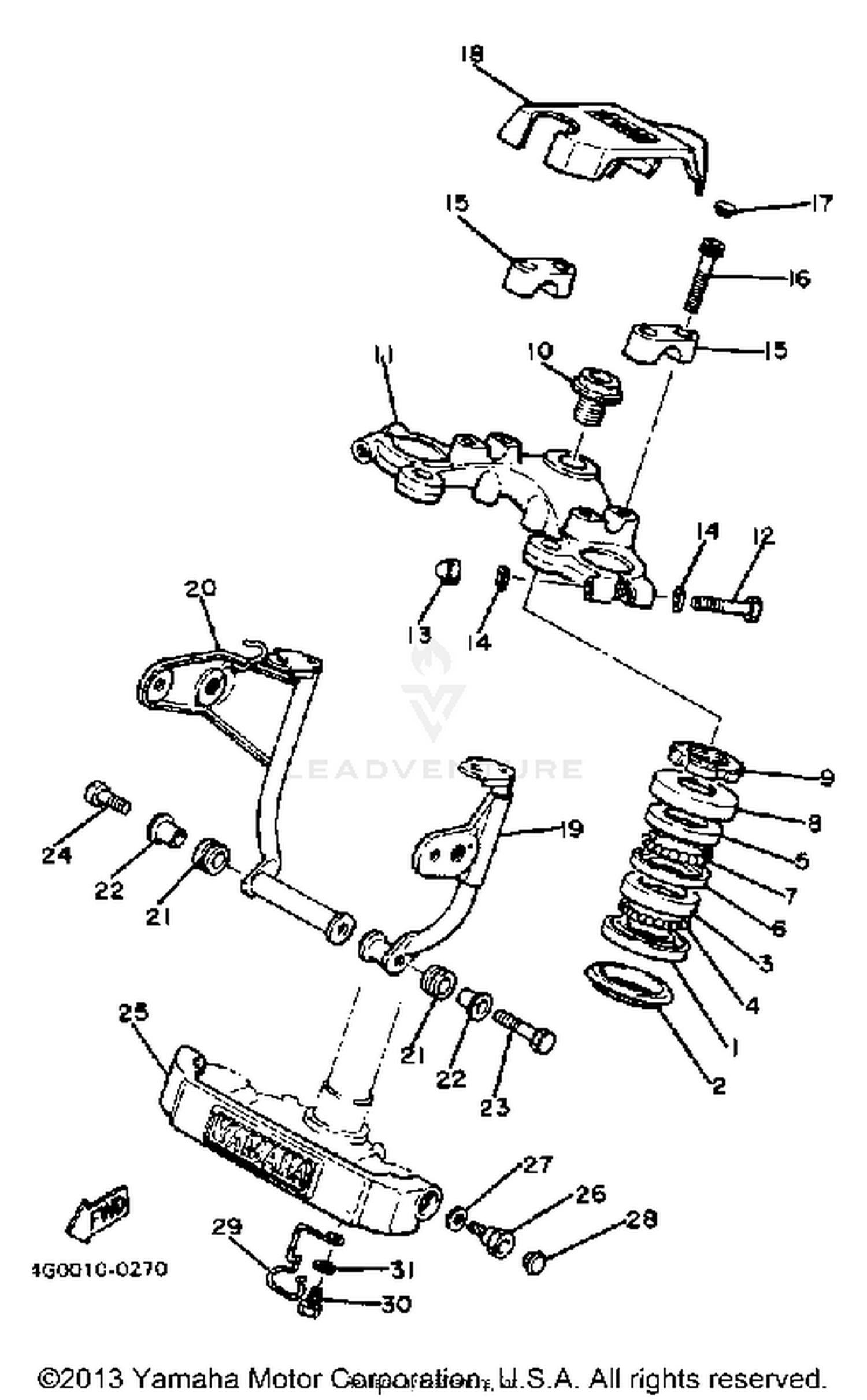

Steering Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
. .RACE, BALL 1
156-23411-00-00
Superseded by B6E-23411-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
SEAL, DUST
164-23462-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
RACE, BALL 2
156-23412-00-00
Superseded by B6E-23412-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BALL
93501-04011-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
RACE, BALL 1
183-23411-00-00
Superseded by 4FP-F3411-20-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
RACE,BALL 2
183-23412-00-00
Superseded by 4FP-F3412-10-00
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#7
BALL
93501-04011-00
|
$7.49 | ||
|
Unavailable |
|||
|
#8
COVER, BALL RACE 1
136-23415-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT
90179-25033-00
Superseded by 90179-25004-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE
90105-14102-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
CROWN, HANDLE
4G0-23435-00-98
|
$158.99 | ||
|
Unavailable |
|||
|
#12
BOLT (661)
97313-08055-00
Superseded by 97013-08055-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT (CROWN)
95303-08800-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#15
HOLDER, HANDLE UPPER
4H7-23441-00-98
Superseded by 4H7-23441-01-98
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT
91316-08030-00
Superseded by 91317-08030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
CAP, BOLT
341-23469-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
COVER, UPPER
4G0-26213-00-00
|
$15.49 | ||
|
Unavailable |
|||
|
#19
COVER, UPPER 1
4G0-23121-00-00
|
$106.99 | ||
|
Unavailable |
|||
|
#20
COVER, UPPER 2
4G0-23131-00-00
|
$106.99 | ||
|
Unavailable |
|||
|
#21
GROMMET
90480-14023-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
COLLAR
90387-06388-00
Superseded by 90387-06158-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, HEXAGON
97326-06050-00
|
$2.37 | ||
|
Unavailable |
|||
|
#24
BOLT
97016-06025-00
Superseded by 97017-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#25
COVER, OUTER 1
4U8-23122-00-00
|
$24.39 | ||
|
Unavailable |
|||
|
#26
BOLT
90109-06583-00
|
$7.99 | ||
|
Unavailable |
|||
|
#27
WASHER, PLAIN
92990-10200-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#28
PLUG, SPEC''L SHAPE
90338-24115-00
|
$5.49 | ||
|
Unavailable |
|||
|
#29
CLAMP
4G0-23466-00-00
|
$2.97 | ||
|
Unavailable |
|||
|
#30
BOLT
97016-06016-00
Superseded by 97017-06016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER, PLATE
92906-06600-00
Superseded by 92907-06600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
