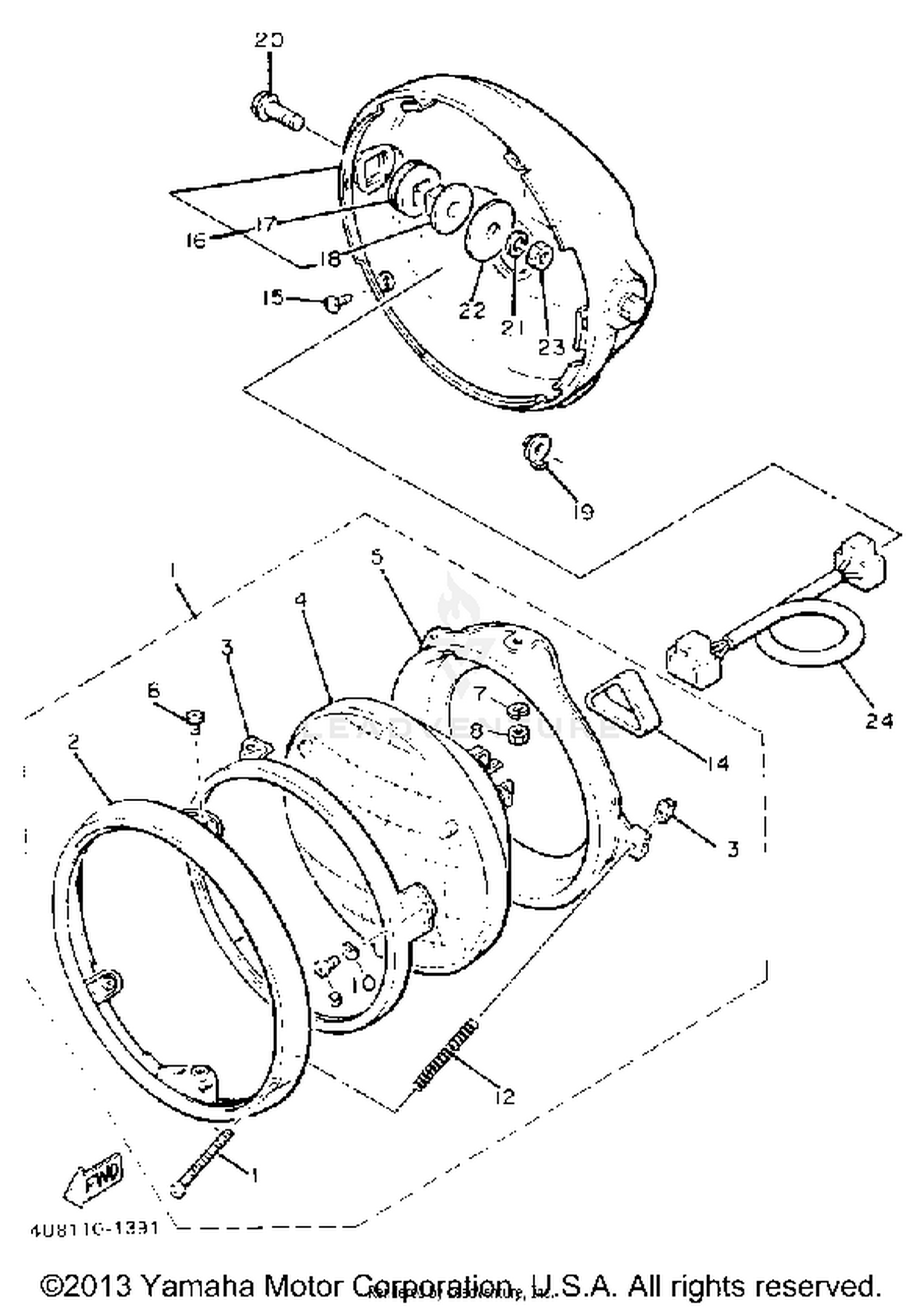

Headlight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEADLIGHT UNIT ASSEMBLY
2J2-84310-60-00
|
$258.99 | ||
|
Unavailable |
|||
|
#2
RIM, HEADLIGHT
341-84315-40-00
|
$136.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
RING, RETAINING
2F9-84395-00-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
LENS ASSEMBLY
341-84320-60-00
|
$94.99 | ||
|
Unavailable |
|||
|
#5
RING, MOUNTING
2F9-84394-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, PAN HEAD
98580-05010-00
Superseded by 97885-05010-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT
95380-05600-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW, PAN HEAD
98580-04008-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, LENS FITTING
98580-04055-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING, SCREW
341-84332-60-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, ADJUSTING
198-84334-60-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
COVER, SOCKET
341-84397-61-00
|
$26.99 | ||
|
Unavailable |
|||
|
#15
SCREW, COUNTERSUNK
90152-05005-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#16
BODY ASSEMBLY
4G0-84330-00-93
|
$93.99 | ||
|
Unavailable |
|||
|
#17
DAMPER, HEADLIGHT
584-84345-60-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
COLLAR, BODY FTNG
584-84338-60-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, SPECIAL
4K0-84327-00-00
|
$14.49 | ||
|
Unavailable |
|||
|
#20
BOLT, FLANGE
90105-08174-00
Superseded by 95027-08030-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER
90209-08098-00
Superseded by 90209-08008-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT
95333-08600-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#24
CORD, HEADLIGHT
2H7-84359-00-00
|
$10.41 | ||
|
Unavailable |
|||
