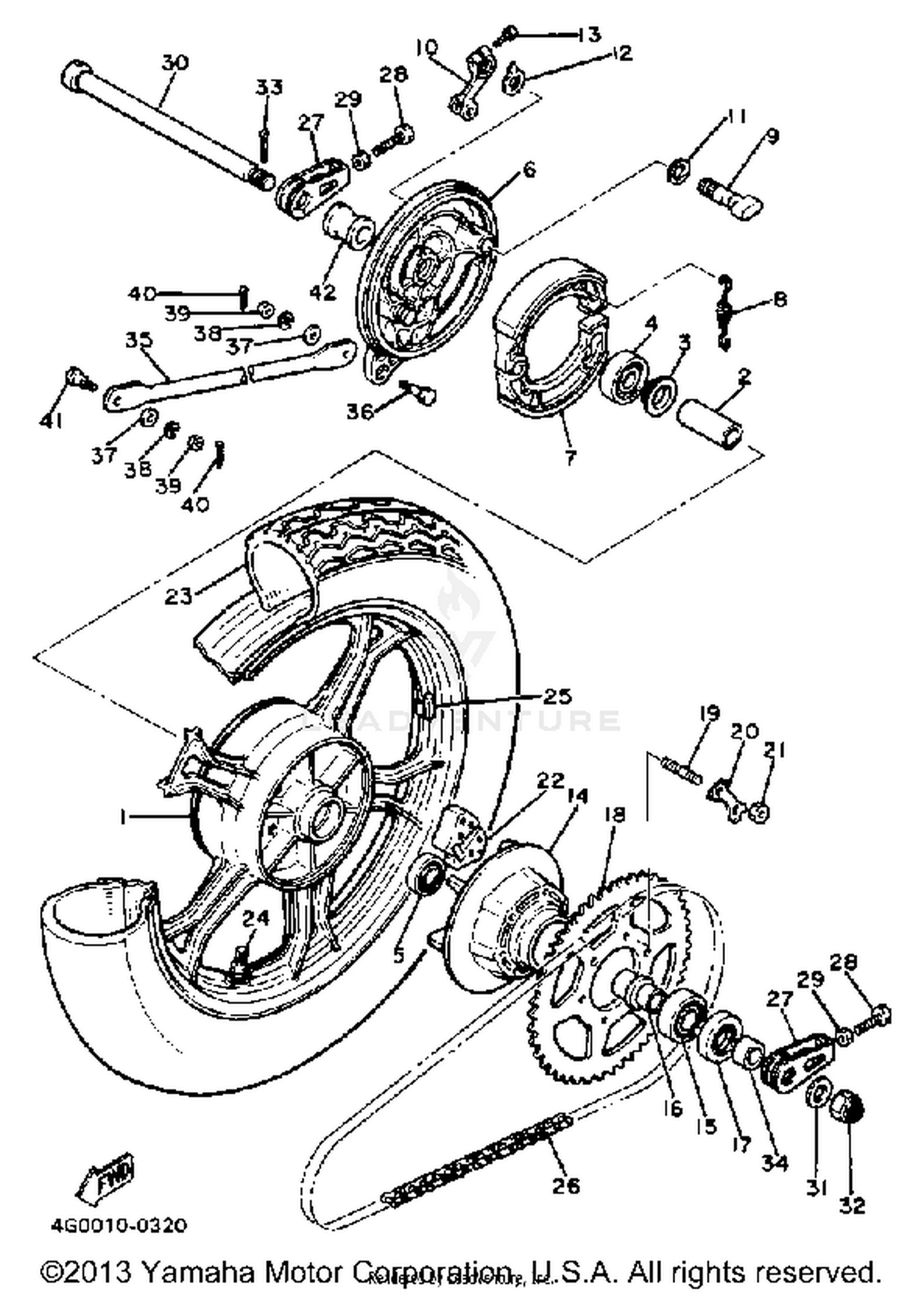

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WHEEL, CAST REAR
4U8-25338-29-00
|
$663.99 | ||
|
Unavailable |
|||
|
#2
SPACER
90560-17125-00
|
$9.99 | ||
|
Unavailable |
|||
|
#3
FLANGE, SPACER
146-25315-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING
93306-30309-00
Superseded by 93306-30317-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING
93306-20310-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, BRAKE SHOE
4G0-25321-00-38
|
$131.99 | ||
|
Unavailable |
|||
|
#7
BRAKE SHOE KIT
4G0-W2536-00-00
Superseded by 1HX-W253E-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING, TENSION
90507-20002-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
CAMSHAFT
4R4-25351-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
LEVER, CAMSHAFT
371-25355-02-00
|
$63.99 | ||
|
Unavailable |
|||
|
#11
SHIM, CAMSHAFT
148-25353-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLATE, INDICATOR
3Y6-2533A-01-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
90101-06291-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLUTCH, HUB
4G0-25366-00-00
|
$54.44 | ||
|
Unavailable |
|||
|
#15
BEARING
93306-30416-00
Superseded by 93306-30437-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR
90387-176A0-00
|
$12.49 | ||
|
Unavailable |
|||
|
#17
OIL SEAL
93102-30072-00
Superseded by 93106-30029-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPROCKET, DRVN 45T
5K5-25445-20-00
|
$49.99 | ||
|
Unavailable |
|||
|
#19
UNAVAILABLE IN PRICE BOOK
90911-61034-80
|
|||
|
Unavailable |
|||
|
#20
WASHER
4G0-25412-00-00
|
$4.40 | ||
|
Unavailable |
|||
|
#21
NUT, WITH WASHER
95701-10500-00
Superseded by 95704-10500-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#22
DAMPER
4G0-25364-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
061H 110/90-18S716
94111-18448-00
|
$140.99 | ||
|
Unavailable |
|||
|
#24
VALVE, RIM
93900-00001-00
Superseded by 93900-00031-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BALANCER, WHEEL (10G)
2M0-25399-00-00
Superseded by 5MT-25398-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#
BALANCER, WHEEL (10G)
1A1-25399-00-00
Superseded by 5MT-25398-00-00
|
$16.99 | ||
|
Unavailable |
|||
|
#
BALANCER, WHEEL (10G)
1A1-25398-01-00
Superseded by 5MT-25398-00-00
|
$16.99 | ||
|
Unavailable |
|||
|
#26
50HDS-104L
94580-05104-00
|
$110.99 | ||
|
Unavailable |
|||
|
#27
PULLER, CHAIN 2
4G0-25389-00-00
|
$41.99 | ||
|
Unavailable |
|||
|
#28
BOLT
90101-08699-00
Superseded by 90101-08060-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
NUT
95303-08700-00
Superseded by 95380-08700-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#30
AXLE, WHEEL
4G0-25381-00-00
|
$41.00 | ||
|
Unavailable |
|||
|
#31
WASHER, PLAIN
92990-14200-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#32
NUT, CASTLE
90171-14031-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
PIN, COTTER
91401-30030-00
Superseded by 91490-30030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
COLLAR
90387-175A9-00
|
$9.49 | ||
|
Unavailable |
|||
|
#35
BAR, TENSION
4G0-25371-00-00
|
$33.99 | ||
|
Unavailable |
|||
|
#36
BOLT
90109-08406-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#38
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
NUT
95303-08700-00
Superseded by 95380-08700-00
|
$3.25 | ||
|
Unavailable |
|||
|
#40
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
BOLT
90109-08368-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
COLLAR, WHEEL
148-25383-00-00
|
$25.99 | ||
|
Unavailable |
|||
