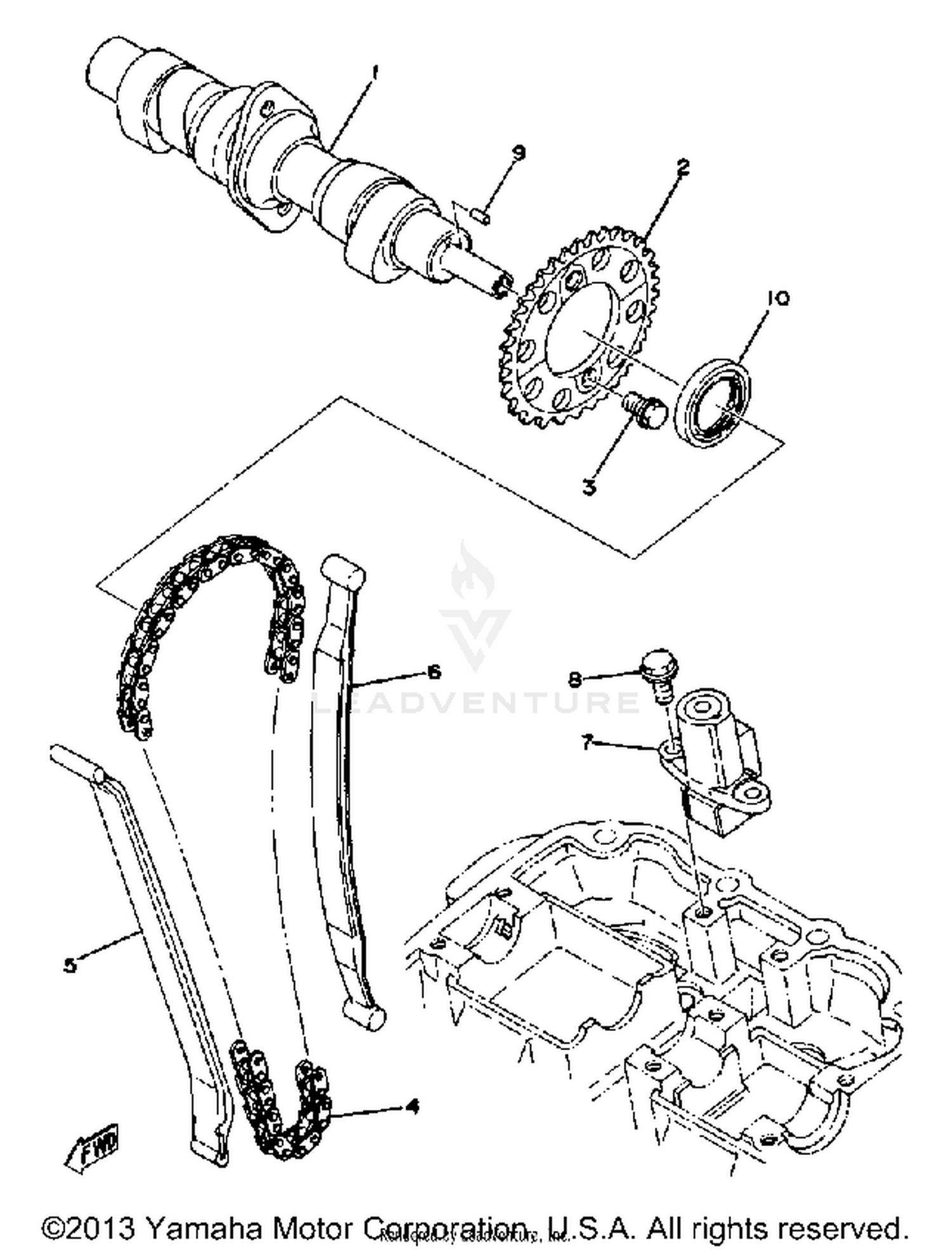

Camshaft Chain Tensioner Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAMSHAFT 1
1M0-12171-00-00
|
$265.99 | ||
|
Unavailable |
|||
|
#2
SPROCKET, CAM CHAIN
1L9-12176-00-00
|
$64.99 | ||
|
Unavailable |
|||
|
#3
BOLT, FLANGE
90105-07087-00
Superseded by 90105-07004-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
CHAIN, CAMSHAFT (BF05M 92L)
94500-02092-00
|
$76.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
GUIDE, STOPPER 1
1L9-12231-00-00
|
$30.99 | ||
|
Unavailable |
|||
|
#6
GUIDE, STOPPER 2
1L9-12241-02-00
|
$76.99 | ||
|
Unavailable |
|||
|
#7
TENSIONER ASY, CAM CHN
1L9-12210-02-00
|
$95.99 | ||
|
Unavailable |
|||
|
#8
BOLT, FLANGE
95811-06016-00
Superseded by 95817-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN, DOWEL
93603-07073-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
OIL SEAL, SD-TYPE
93102-23190-00
|
$14.49 | ||
|
Unavailable |
|||
