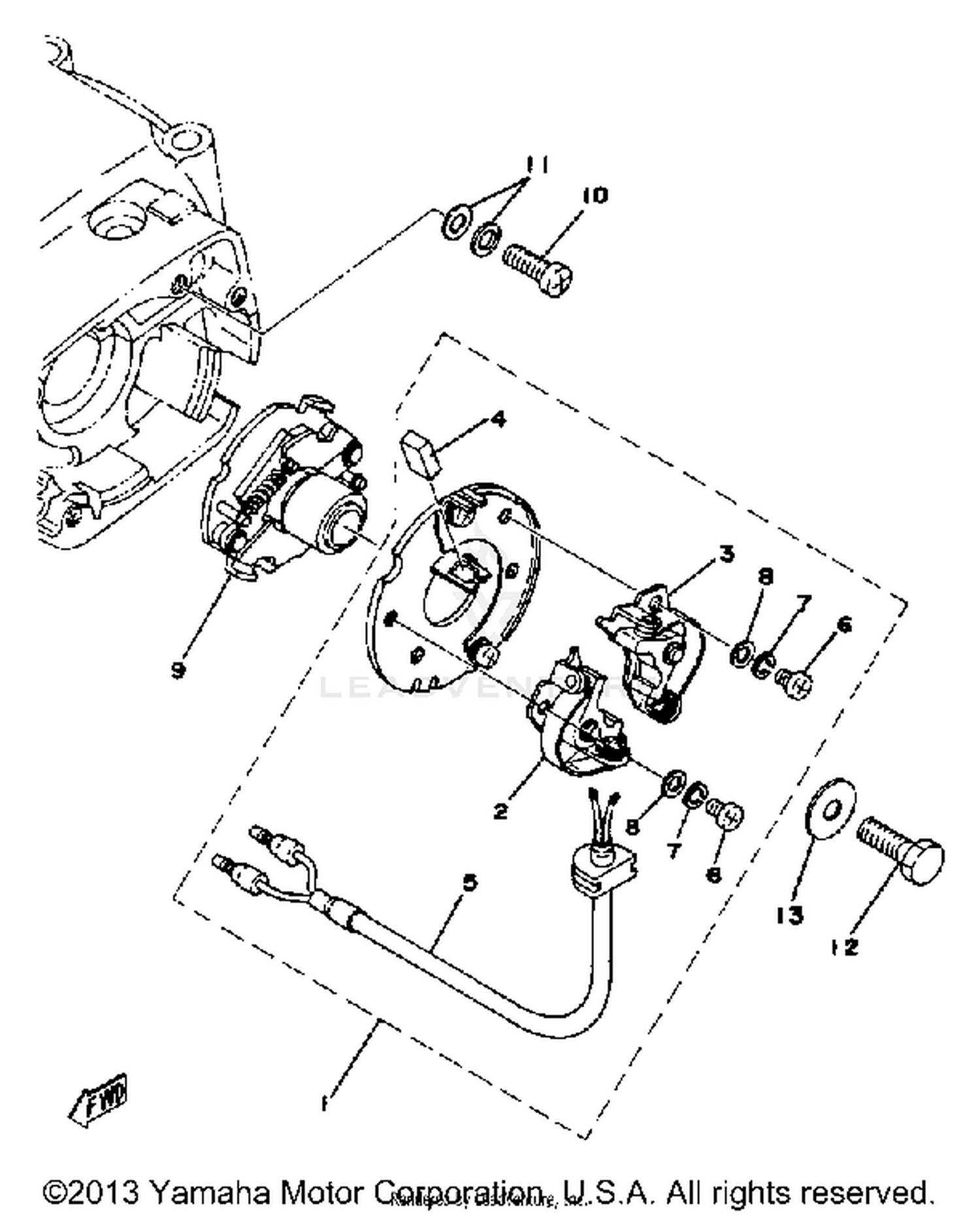

Contact Breaker Governor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BREAKER PLATE ASSEMBLY (1L9-816
1L9-81620-51-00
|
$210.99 | ||
|
Unavailable |
|||
|
#2
CONTACT BRKR ASSEMBLY
1L9-81621-51-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CONTACT BRKR ASSEMBLY
1L9-81622-51-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
LUBRICATOR
1L9-81631-50-00
|
$6.49 | ||
|
Unavailable |
|||
|
#5
LEAD WIRE ASSEMBLY
1L9-81634-50-00
|
$27.99 | ||
|
Unavailable |
|||
|
#6
SCREW, PAN HEAD
97601-04106-00
Superseded by 98517-04006-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER
92990-04200-00
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#9
GOVERNOR ASSEMBLY
1L9-81653-50-00
|
$72.90 | ||
|
Unavailable |
|||
|
#10
SCREW, PAN HEAD
98503-06014-00
Superseded by 98507-06014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PLAIN
92990-06200-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
97011-06020-00
Superseded by 97017-06020-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLATE
90201-065F3-00
Superseded by 90201-06020-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
