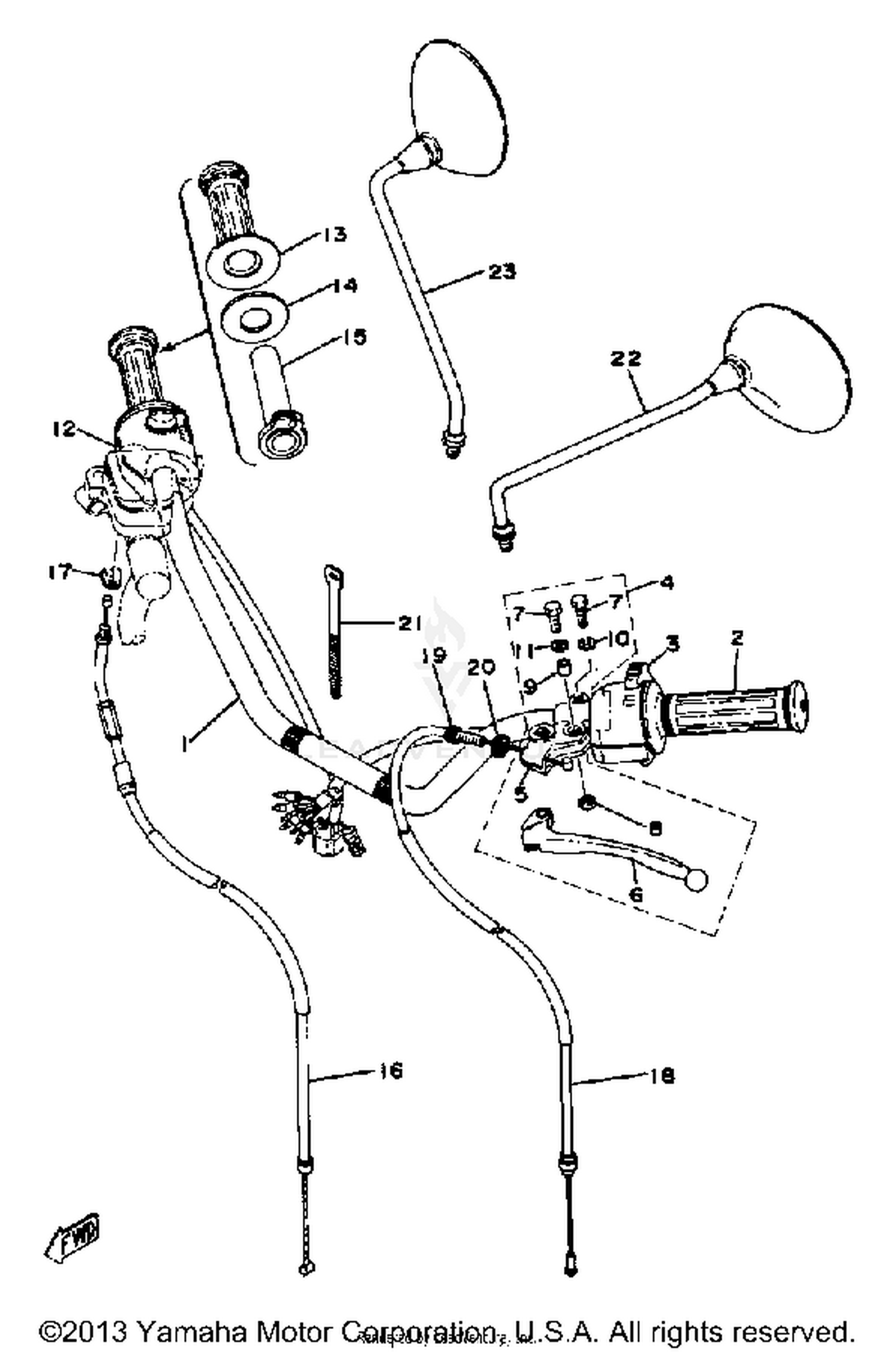

Handle Wire Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HANDLEBAR
1J7-26111-00-00
|
$138.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GRIP LH
1E6-26241-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SWITCH, HANDLE 3
1A0-83973-01-98
Superseded by 1A0-83973-02-98
|
$101.99 | ||
|
Unavailable |
|||
|
#4
LEVER HOLDER ASSEMBLY LEFT
1J3-82910-00-00
|
$27.76 | ||
|
Unavailable |
|||
|
#5
HOLDER, LEVER LEFT
341-82911-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
LEVER, LEFT
1J3-83912-10-00
Superseded by 214-83912-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
97301-06020-00
Superseded by 97017-06020-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#
BOLT (661)
97301-06022-00
Superseded by 97013-06022-00
|
$0.85 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT
95301-06700-00
Superseded by 95380-06700-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#
NUT, U
95601-06100-00
Superseded by 95617-06100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR, LEVER 1
214-83913-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, SPRING
92903-06100-00
Superseded by 92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PLATE
90201-08083-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
SWITCH, HANDLE 2
1A8-83963-00-98
|
$70.76 | ||
|
Unavailable |
|||
|
#13
GRIP RH
1A0-26242-01-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE (1V1-26249-00)
278-26249-00-00
Superseded by 90201-261L1-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
TUBE, THROTTLE GUIDE
584-26243-00-00
|
$12.99 | ||
|
Unavailable |
|||
|
#16
CABLE, THROTTLE 1 (780 MM)
1L9-26311-00-00
|
$33.99 | ||
|
Unavailable |
|||
|
#17
HOLDER, WIRE GUIDE
584-26393-02-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
CABLE, CLUTCH (1100 MM)
1L9-26335-00-00
|
$28.99 | ||
|
Unavailable |
|||
|
#19
BOLT
90123-08046-00
Superseded by 90123-08002-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT
90179-08148-00
Superseded by 90179-08030-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#21
BAND, SWITCH CORD
437-83936-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
MIRROR ASSEMBLY LH
1J7-26290-12-00
|
$47.99 | ||
|
Unavailable |
|||
|
#23
MIRROR ASSEMBLY RH
1J7-26290-02-00
|
$47.99 | ||
|
Unavailable |
|||
