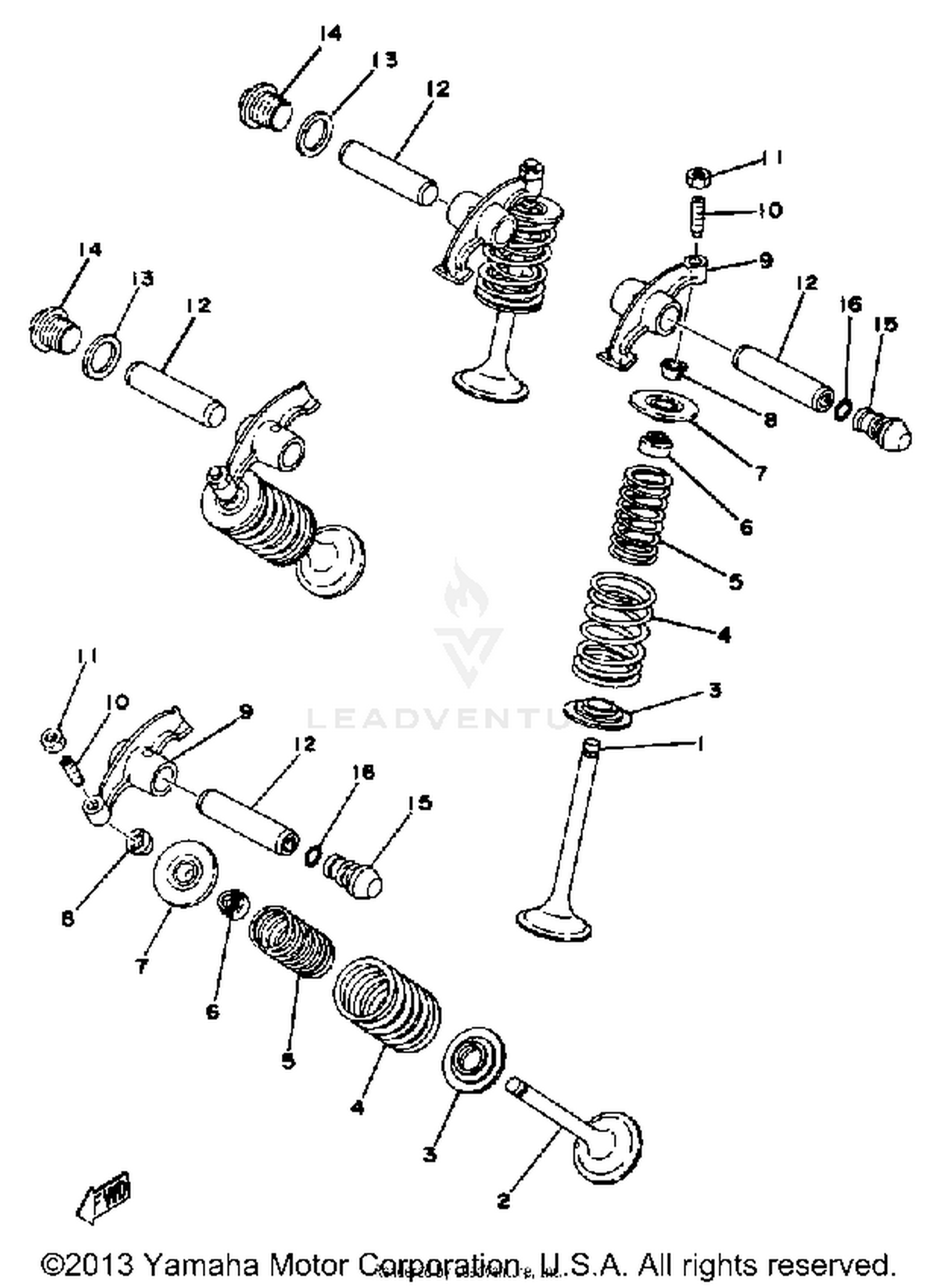

Valve Rocker Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
VALVE, INTAKE #3
1L9-12111-03-00
|
$76.99 | ||
|
Unavailable |
|||
|
#2
VALVE, EXHAUST #2
1L9-12121-00-00
Superseded by 1L9-12121-02-00
|
$73.99 | ||
|
Unavailable |
|||
|
#3
SEAT, VALVE SPRING
1L9-12116-00-00
|
$12.99 | ||
|
Unavailable |
|||
|
#4
SPRING, VALVE OUTER
1L9-12114-00-00
|
$13.49 | ||
|
Unavailable |
|||
|
#5
SPRING, VALVE INNER
1L9-12113-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#6
SEAL, VALVE STEM
1J7-12119-01-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
RETAINER, VALVE SPR
1L9-12117-00-00
|
$12.49 | ||
|
Unavailable |
|||
|
#8
COTTER, VALVE
1J7-12118-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
ARM, VALVE ROCKER
1L9-12151-01-00
|
$112.99 | ||
|
Unavailable |
|||
|
#10
SCREW, VALVE ADJUSTING
22U-12159-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT
90170-06128-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
SHAFT, ROCKER
1L9-12156-01-00
|
$13.99 | ||
|
Unavailable |
|||
|
#13
WASHER, PLATE
90201-16606-00
|
$0.94 | ||
|
Unavailable |
|||
|
#14
PLUG, ROCKER
1L9-11177-01-00
|
$8.99 | ||
|
Unavailable |
|||
|
#15
PLUG, BLIND
1L9-11197-00-00
|
$25.99 | ||
|
Unavailable |
|||
|
#16
O-RING
93210-07242-00
Superseded by 93210-07438-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
