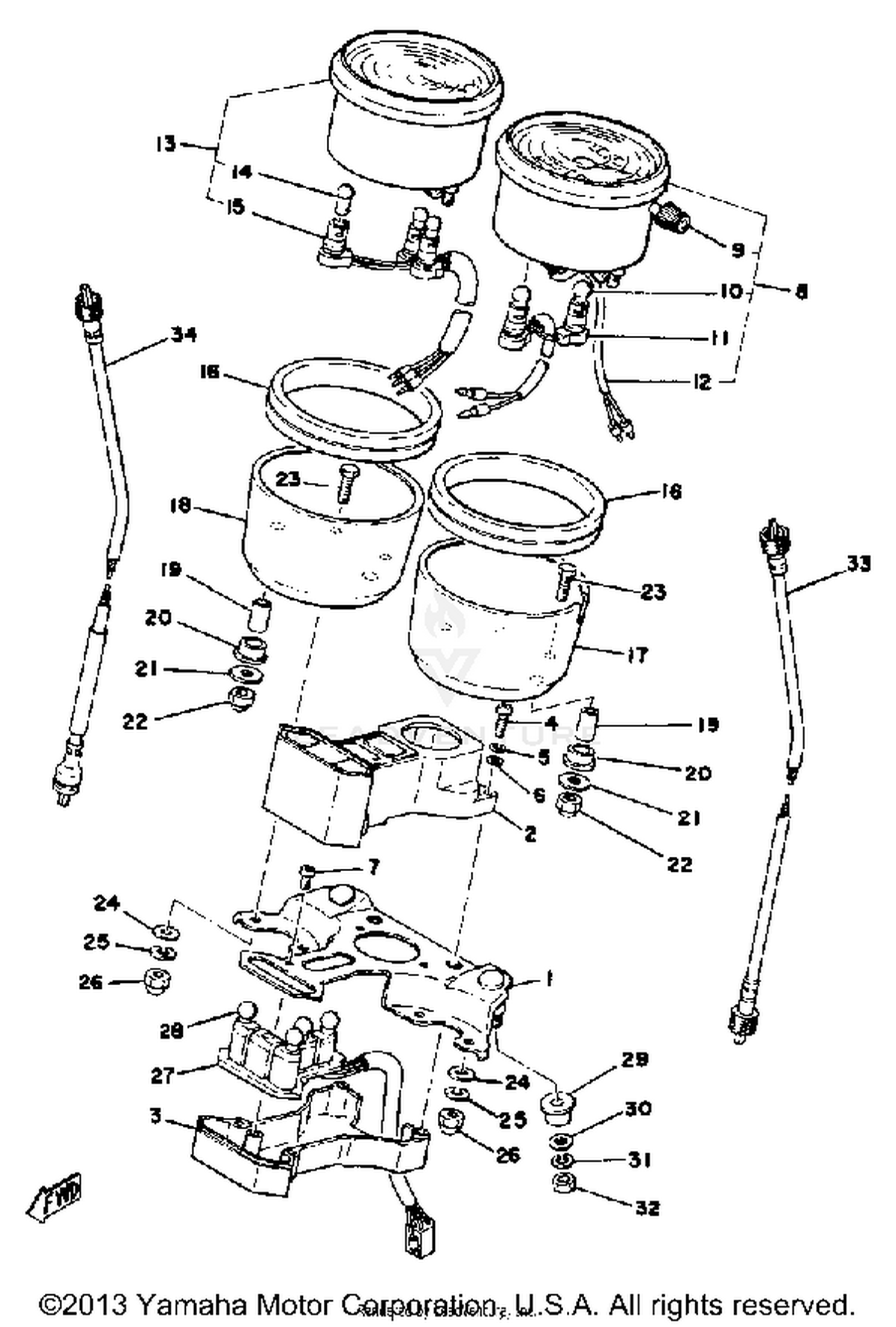

Speedometer Tachometer Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BRACKET, METER
1L9-83519-01-98
|
$13.98 | ||
|
Unavailable |
|||
|
#2
PILOT BOX, UPPER
1J3-83568-71-00
|
$19.92 | ||
|
Unavailable |
|||
|
#3
PILOT BOX, LOWER
1J3-83569-71-00
|
$21.99 | ||
|
Unavailable |
|||
|
#4
SCREW, PAN HEAD
98506-04020-00
Superseded by 98517-04020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, SPRING
92906-04100-00
Superseded by 92907-04100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER
92906-04600-00
Superseded by 92907-04600-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, PAN HEAD
98501-05010-00
Superseded by 97885-05010-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPEEDOMETER ASSEMBLY
1A0-83570-70-00
|
|||
|
Unavailable |
|||
|
#9
KNOB, TRIP METER
584-83578-71-00
Superseded by 4SV-83578-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BULB (12V-3.4W)
123-83516-21-00
Superseded by 123-83516-21-XX
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#11
SOCKET, CORD ASSY
1L9-83536-01-00
|
$6.44 | ||
|
Unavailable |
|||
|
#12
SOCKET, CORD ASSY
1A0-83556-01-00
|
$10.40 | ||
|
Unavailable |
|||
|
#13
TACHOMETER ASSEMBLY
1L9-83540-01-00
|
$0.04 | ||
|
Unavailable |
|||
|
#14
BULB (12V-3.4W)
123-83516-21-00
Superseded by 123-83516-21-XX
|
$4.75 | ||
|
Unavailable |
|||
|
#15
SOCKET CORD ASSEMBLY
1L9-83520-01-00
|
$13.36 | ||
|
Unavailable |
|||
|
#16
DAMPER
1A0-83513-00-00
|
$9.28 | ||
|
Unavailable |
|||
|
#17
COVER, SPEEDOMETER
1A0-83507-00-00
|
$29.99 | ||
|
Unavailable |
|||
|
#18
COVER, TACHOMETER
1A0-83508-00-00
|
$30.99 | ||
|
Unavailable |
|||
|
#19
COLLAR
1A0-83522-00-00
|
$5.64 | ||
|
Unavailable |
|||
|
#20
DAMPER
584-83523-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLATE
90201-05031-00
Superseded by 90201-05725-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT (CROWN)
95303-05800-00
|
$1.30 | ||
|
Unavailable |
|||
|
#23
BOLT
584-83546-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, PLAIN
92903-06200-00
Superseded by 92990-06200-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, SPRING
92903-06100-00
Superseded by 92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT, CROWN
95303-06800-00
Superseded by 95380-06800-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
SOCKET CORD ASSEMBLY
1L9-83509-71-00
|
$32.12 | ||
|
Unavailable |
|||
|
#28
BULB (12V-3.4W)
123-83516-21-00
Superseded by 123-83516-21-XX
|
$4.75 | ||
|
Unavailable |
|||
|
#29
BUSH, SOLID
90381-08024-00
|
$1.18 | ||
|
Unavailable |
|||
|
#30
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER, SPRING
92903-06100-00
Superseded by 92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#32
NUT, HEXAGON
95301-06600-00
Superseded by 95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#33
SPDMTR CABLE
351-83550-01-00
Superseded by 55K-83550-02-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
TACHOMETER CABLE ASSY
1L9-83560-01-00
|
$41.99 | ||
|
Unavailable |
|||
