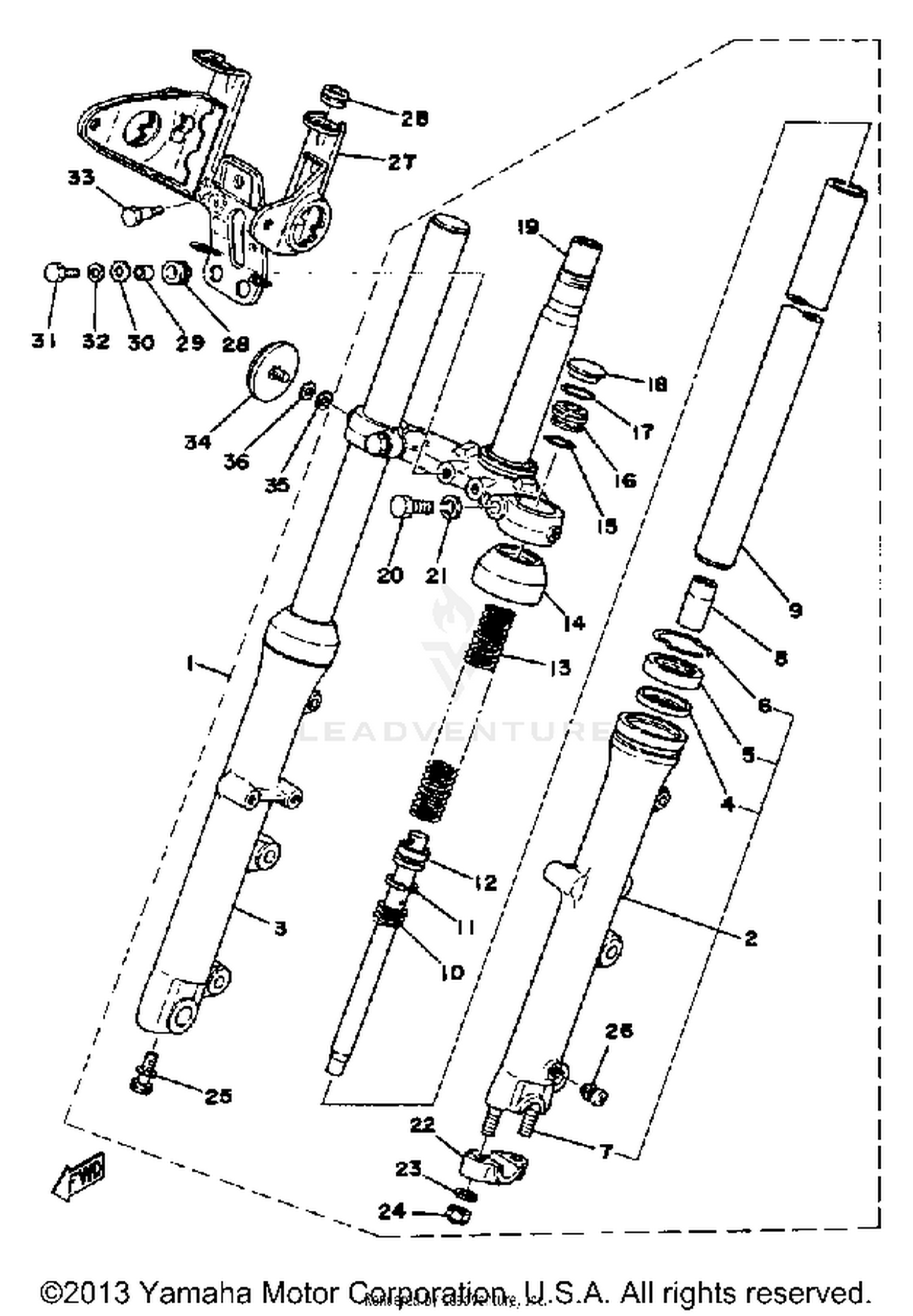

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NO LONGER AVAILABLE
1L9-23101-01-00
|
$295.99 | ||
|
Unavailable |
|||
|
#2
TUBE, OUTER 1
2L0-23126-00-00
|
$136.99 | ||
|
Unavailable |
|||
|
#3
TUBE, OUTER 2
1L9-23136-01-00
|
$136.99 | ||
|
Unavailable |
|||
|
#4
WASHER, OIL SEAL
1L9-23146-00-00
|
$8.99 | ||
|
Unavailable |
|||
|
#5
OIL SEAL
1L9-23145-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLIP, OIL SEAL
1L9-23156-00-00
|
$4.55 | ||
|
Unavailable |
|||
|
#7
BOLT, STUD
90116-08260-00
|
$4.65 | ||
|
Unavailable |
|||
|
#8
SPACER, OIL LOCK
1L9-23166-00-00
|
$14.49 | ||
|
Unavailable |
|||
|
#9
INNER TUBE 1
1L9-23110-01-00
|
$85.99 | ||
|
Unavailable |
|||
|
#10
SPRING, REBOUND
1E7-23151-00-00
|
$1.59 | ||
|
Unavailable |
|||
|
#11
RING, PISTON FRONT FORK
1E7-23157-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
CYLINDER, FRTFRK
1L9-23170-02-00
|
$9.49 | ||
|
Unavailable |
|||
|
#13
SPRING, FRONT FORK
1L9-23141-01-00
|
$16.99 | ||
|
Unavailable |
|||
|
#14
SEAL, DUST
1L9-23144-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
GASKET
1L9-23114-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, CAP
1L9-23111-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
RING, STOPPER
1L9-23183-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
CAP, FRONT FORK
1L9-23168-00-00
|
$6.48 | ||
|
Unavailable |
|||
|
#19
UNDER BRACKET
1L9-23340-00-90
|
$100.99 | ||
|
Unavailable |
|||
|
#20
BOLT,WITH WASHER
97023-10035-00
Superseded by 97070-10035-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, SPRING
92990-10100-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
HOLDER, AXLE
1E7-23167-00-00
|
$19.99 | ||
|
Unavailable |
|||
|
#23
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT, SELF-LOCKING
90185-08089-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, HEXAGON SOCKET HEAD
3M7-23181-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
PLUG, DRAIN
1E7-23119-00-00
|
$2.05 | ||
|
Unavailable |
|||
|
#27
COVER, UPPER 1
1L9-23121-01-33
|
$76.99 | ||
|
Unavailable |
|||
|
#28
GROMMET
90480-14052-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
COLLAR
90387-06216-00
Superseded by 90387-060A3-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT
97011-06020-00
Superseded by 97017-06020-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT
90109-06005-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
REFLECTOR, FRONT 1
355-85111-01-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
WASHER, PLAIN
92990-05200-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#36
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
