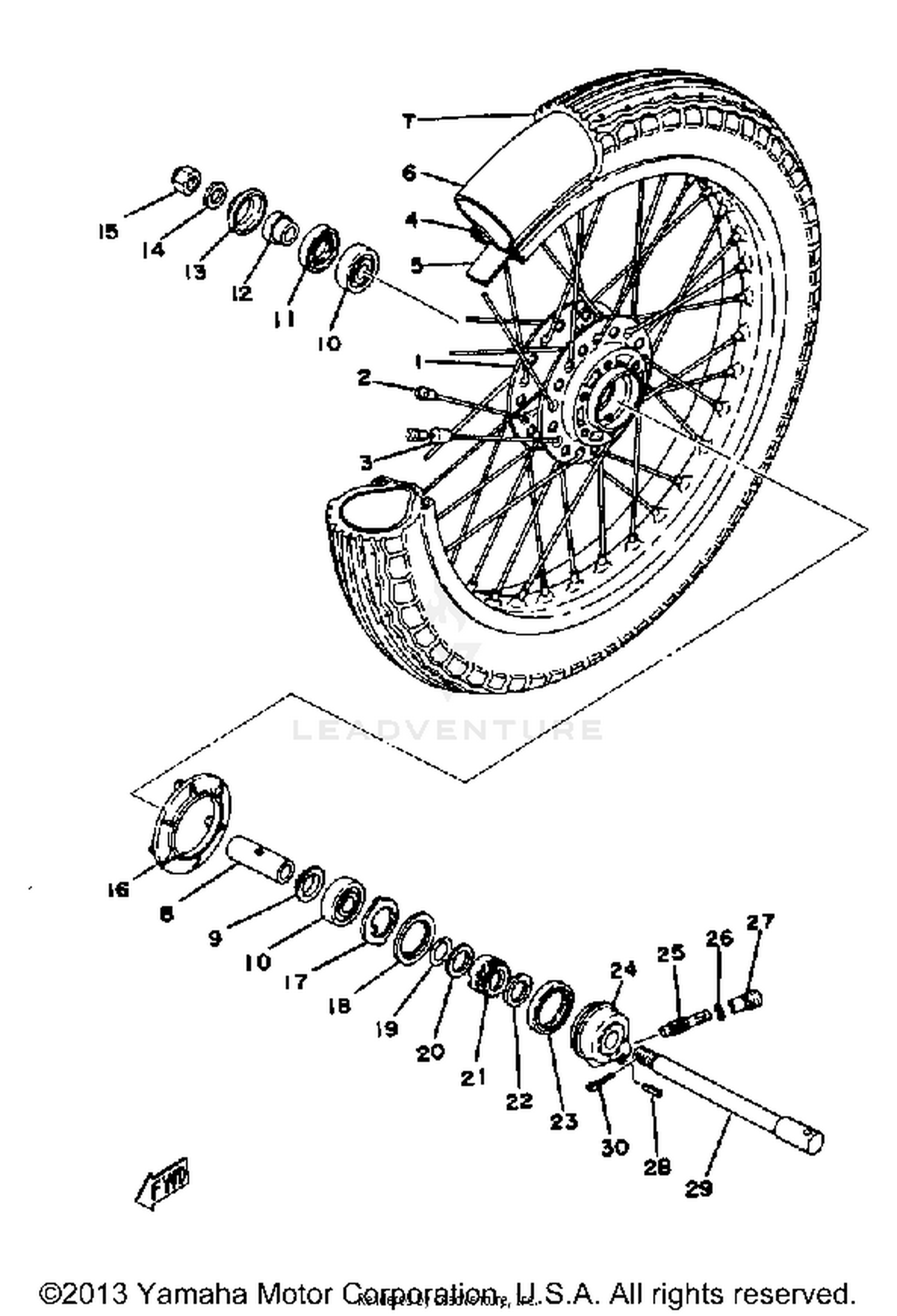

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, FRONT
1L9-25111-00-00
|
$53.55 | ||
|
Unavailable |
|||
|
#2
SPOKE SET, FRONT
351-25104-00-00
|
$118.99 | ||
|
Unavailable |
|||
|
#3
BALANCER, WHEEL (15G)
156-25398-00-00
Superseded by 3HT-25398-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
RIM 1.85X18
94418-18084-00
|
$44.08 | ||
|
Unavailable |
|||
|
#5
UNAVAILABLE IN PRICE BOOK
95325-18043-00
|
|||
|
Unavailable |
|||
|
#6
TUBE
94230-18084-00
Superseded by 94227-18195-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
YOKO 300S18 Y986
94130-18363-00
|
$50.99 | ||
|
Unavailable |
|||
|
#8
SPACER
90560-15161-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
FLANGE,SPACER 1
146-25115-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BEARING
93306-30202-00
Superseded by 93306-30212-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
OIL SEAL, SD-TYPE
93102-22014-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR
90387-15550-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
COVER, HUB DUST
401-25367-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLAIN
92990-14200-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, CASTLE
90171-14020-00
Superseded by 90171-14056-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
COVER, HOUSING
1L9-25847-00-00
|
$16.99 | ||
|
Unavailable |
|||
|
#17
CLUTCH, METER
341-25149-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
RETAINER, CLUTCH
341-25846-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
RING, STOP
341-25137-00-00
|
$2.50 | ||
|
Unavailable |
|||
|
#20
WASHER, PLATE (341-25147-00)
90201-25286-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
GEAR, DRIVE
351-25135-00-00
|
$11.24 | ||
|
Unavailable |
|||
|
#22
WASHER, PLATE
90201-25490-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
OIL SEAL
93105-45017-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
GEAR UNIT ASY
404-25190-00-00
Superseded by 31A-25190-10-00
|
$87.99 | ||
|
Unavailable |
|||
|
#25
GEAR, METER
351-25138-00-00
|
$49.99 | ||
|
Unavailable |
|||
|
#26
SHIM, ROD
102-18416-00-00
|
$4.65 | ||
|
Unavailable |
|||
|
#27
BUSH
306-25136-00-00
|
$19.99 | ||
|
Unavailable |
|||
|
#28
PIN, SPRING
91609-20014-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#29
AXLE, WHEEL
1L9-25181-00-00
|
$38.99 | ||
|
Unavailable |
|||
|
#30
PIN, COTTER
91401-30030-00
Superseded by 91490-30030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
