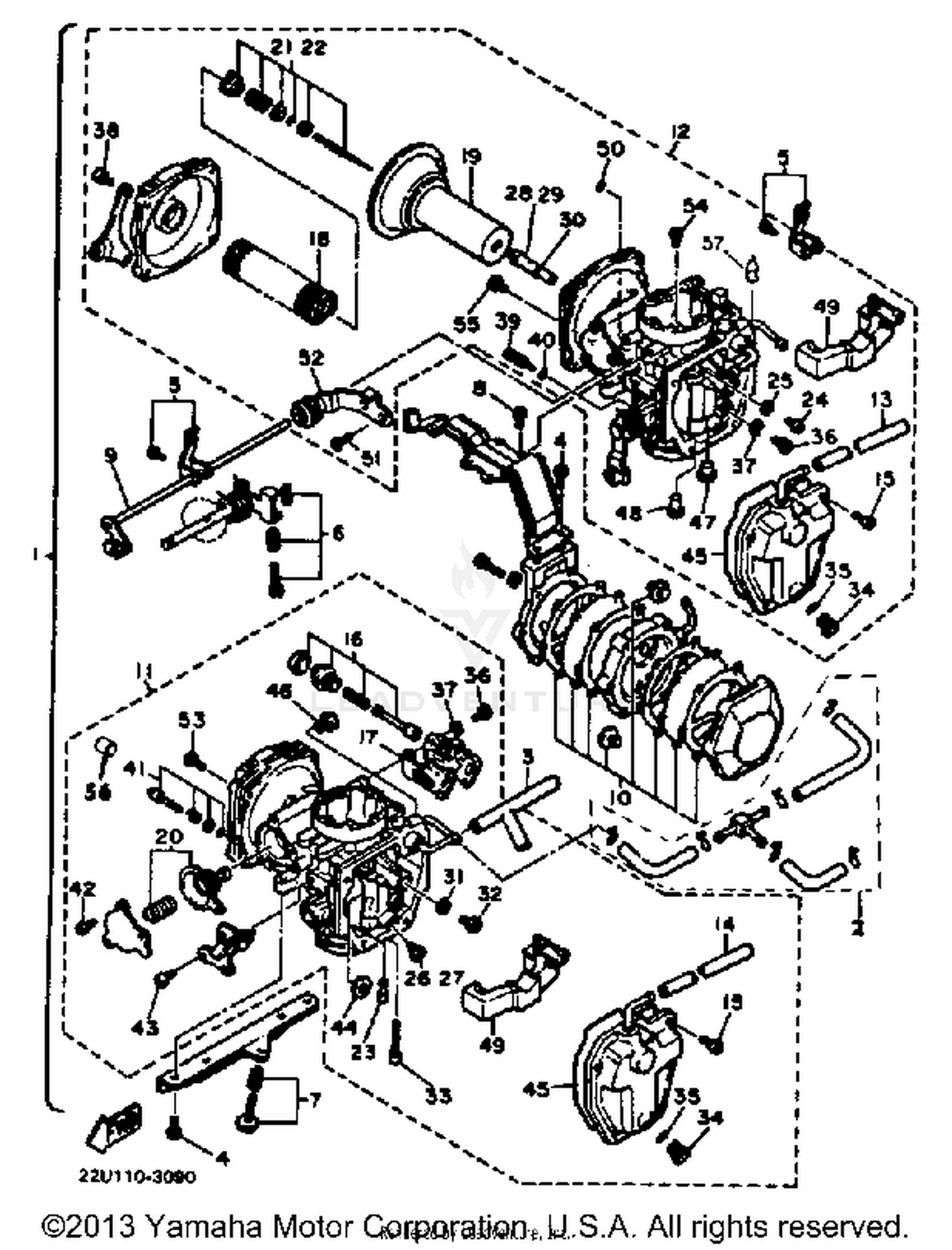

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SCREW, PAN HEAD
98503-06014-00
Superseded by 98507-06014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#
UNAVAILABLE IN PRICE BOOK
22U-14900-01-00
|
|||
|
Unavailable |
|||
|
#2
HOSE
22V-14294-00-00
|
$36.99 | ||
|
Unavailable |
|||
|
#3
HOSE
22U-14294-00-00
|
$53.99 | ||
|
Unavailable |
|||
|
#4
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#5
STARTER LEVER SET, 2
22U-1490M-00-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
STOP SCREW SET
22U-1490K-00-00
|
$4.35 | ||
|
Unavailable |
|||
|
#7
THROTTLE SCREW SET
22U-14103-00-00
|
$18.99 | ||
|
Unavailable |
|||
|
#8
SCREW, PAN HEAD
98580-05010-00
Superseded by 97885-05010-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#9
SHAFT, STARTER LVR
22U-14977-00-00
|
$13.36 | ||
|
Unavailable |
|||
|
#10
DIAPHRAGM SET, 4
11H-1490G-00-00
|
$139.99 | ||
|
Unavailable |
|||
|
#11
CARBURETOR ASSEMBLY 1
22U-14901-01-00
|
$352.99 | ||
|
Unavailable |
|||
|
#12
CARBURETOR ASSEMBLY 2
22U-14902-01-00
|
$352.99 | ||
|
Unavailable |
|||
|
#13
PIPE, AIRVENT
22U-14197-00-00
|
$4.35 | ||
|
Unavailable |
|||
|
#14
PIPE, AIRVENT
22V-14197-01-00
|
$6.99 | ||
|
Unavailable |
|||
|
#15
SCREW, PAN HEAD
98580-05012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
STARTER SET
11H-1410A-00-00
|
$100.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
GASKET
3JB-14536-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPRING, DIAPHRAGM
22U-14933-00-00
|
$15.99 | ||
|
Unavailable |
|||
|
#19
DIAPHRAGM ASY
22U-14940-00-00
Superseded by 22U-14940-09-00
|
$170.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
DIAPHRAGM SET 5
22U-1490H-00-00
|
$67.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
NEEDLE SET
22U-1490J-02-00
|
$28.22 | ||
|
Unavailable |
|||
|
#22
NEEDLE SET
22U-1490J-04-00
|
$22.68 | ||
|
Unavailable |
|||
|
#23
JET, PILOT (#37.5)
4G0-14142-37-A0
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW, PAN HEAD
98503-04014-00
Superseded by 98580-04014-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#26
JET, MAIN (#140)
3G2-14231-28-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
JET, MAIN (#135)
3G2-14231-27-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
NOZZLE, MAIN
22U-14941-90-00
|
$12.52 | ||
|
Unavailable |
|||
|
#29
NOZZLE, MAIN
22U-14941-90-00
|
$12.52 | ||
|
Unavailable |
|||
|
#30
O-RING
22U-14147-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER, MAIN JET
137-14153-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
SCREW
22U-14565-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
PIPE, MAIN BLEED
22U-1414G-00-00
|
$76.99 | ||
|
Unavailable |
|||
|
#34
PLUG, SCREW
22U-14115-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
O-RING
22U-14561-00-00
|
$7.30 | ||
|
Available to order. Add to View Price |
|||
|
#36
SCREW,PANHEAD
98511-04012-00
Superseded by 98517-04012-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#37
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.80 | ||
|
Unavailable |
|||
|
#38
SCREW, PAN HEAD
98501-05018-00
Superseded by 98507-05018-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#39
PLUG, DRAIN
2L1-14191-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
O-RING
214-14147-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
PILOT SCREW SET
12R-14105-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
SCREW,PANHEAD
98511-04012-00
Superseded by 98517-04012-00
|
$3.65 | ||
|
Unavailable |
|||
|
#43
SCREW, PAN HEAD
98580-06010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#44
GASKET
3JB-14199-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
O-RING
22V-14147-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
PLUG, SCREW
2F5-14115-00-00
|
$10.99 | ||
|
Unavailable |
|||
|
#47
CAP
22U-14968-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#48
CAP
22V-14968-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#49
FLOAT
22U-14985-00-00
|
$52.99 | ||
|
Unavailable |
|||
|
#50
O-RING
93210-03119-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#51
SCREW, FLAT HEAD
92680-06010-00
Superseded by 98780-06010-00
|
$2.10 | ||
|
Unavailable |
|||
|
#52
PLATE
22U-14255-00-00
|
$21.56 | ||
|
Unavailable |
|||
|
#53
SCREW, PAN HEAD
98580-05016-00
Superseded by 97885-05016-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#54
JET, MAIN 80 (80)
3G2-14231-16-00
|
$6.49 | ||
|
Unavailable |
|||
|
#55
JET, MAIN (#145)
3G2-14231-29-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#56
CAP
3F9-14118-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
