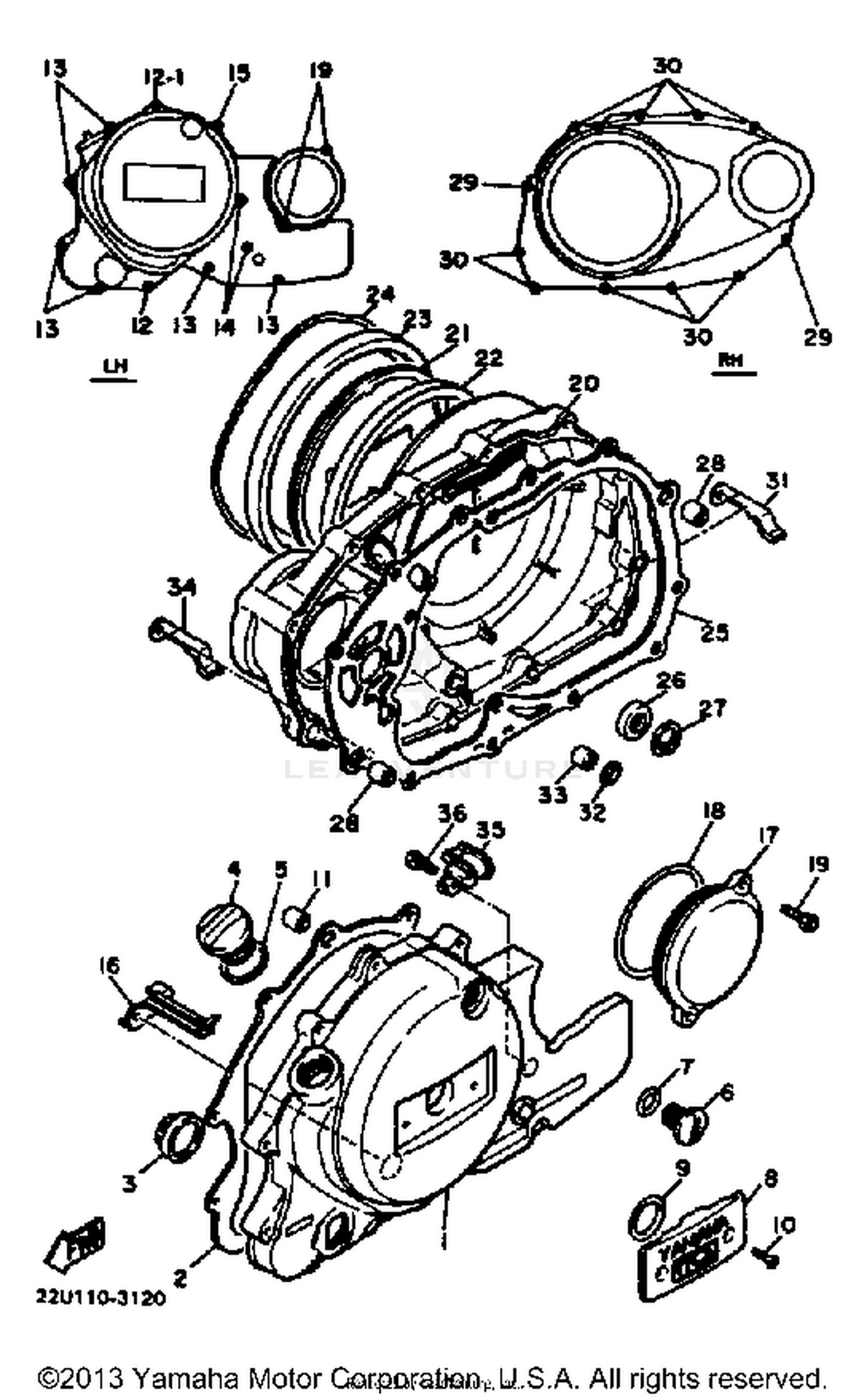

1983 Yamaha XV500K VIRAGO CRANKCASE COVER OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BOLT, HEXAGON SOCKET HEAD
91311-06040-00
Superseded by 91314-06040-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#
COVER, CRANKCASE L
22U-15411-00-00
|
$296.99 | ||
|
Unavailable |
|||
|
#2
GASKET, CRANKCASE COVER 1
3BT-15451-00-00
Superseded by 4VR-15451-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GAUGE, LEVEL
2H7-15361-00-00
|
$91.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLUG, OIL LEVEL
3F9-15362-00-00
Superseded by BAT-15362-00-00
|
$18.49 | ||
|
Unavailable |
|||
|
#5
O-RING
93210-27778-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLUG, STRAIGHT SCREW
90340-14068-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
O-RING
93210-14369-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER, cap 2
11H-15427-00-00
|
$37.99 | ||
|
Unavailable |
|||
|
#9
O-RING
93210-270A8-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, FLAT HEAD (92603-06016)
98780-06016-00
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN, DOWEL
99530-10014-00
Superseded by 99530-10114-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, HEXAGON SOCKET HEAD
91311-06035-00
Superseded by 91314-06035-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, HEXAGON SOCKET HEAD
91311-06025-00
Superseded by 91314-06025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, HEXAGON SOCKET HEAD
91311-06035-00
Superseded by 91314-06035-00
|
$6.99 | ||
|
Unavailable |
|||
|
#15
BOLT, HEXAGON SOCKET HEAD
91311-06030-00
Superseded by 91314-06030-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLAMP
90462-10117-00
|
$5.99 | ||
|
Unavailable |
|||
|
#17
COVER, GENERATOR
22U-15415-01-00
|
$44.99 | ||
|
Unavailable |
|||
|
#18
O-RING
93210-74316-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, HEXAGON SOCKET HEAD
91311-06018-00
Superseded by 91314-06018-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
COVER, CRANKCASE R
22U-15421-01-00
|
$185.99 | ||
|
Unavailable |
|||
|
#21
COVER, CAP 2
22U-15427-01-00
|
$146.99 | ||
|
Unavailable |
|||
|
#22
RING, RUBBER
5E5-15449-00-00
|
$31.99 | ||
|
Unavailable |
|||
|
#23
COVER
5E5-15492-00-00
|
$46.99 | ||
|
Unavailable |
|||
|
#24
CLIP
90468-20116-00
|
$17.49 | ||
|
Unavailable |
|||
|
#25
GASKET, CRANKCASE COVER 2
3BT-15461-00-00
Superseded by 4VR-15461-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
OIL SEAL
93101-14089-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
CIRCLIP
99009-25500-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
PIN, DOWEL
99530-10020-00
Superseded by 99530-10120-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, HEXAGON SOCKET HEAD
91311-06040-00
Superseded by 91314-06040-00
|
$6.99 | ||
|
Unavailable |
|||
|
#30
BOLT, HEXAGON SOCKET HEAD
91311-06025-00
Superseded by 91314-06025-00
|
$7.49 | ||
|
Unavailable |
|||
|
#31
CLAMP
90462-10115-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#32
O-RING
93210-15566-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
PIN, DOWEL
91810-17016-00
Superseded by 91815-16017-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
CLAMP
90462-10118-00
|
$5.49 | ||
|
Unavailable |
|||
|
#35
CLAMP
90462-06119-00
|
$5.99 | ||
|
Unavailable |
|||
|
#36
SCREW, PAN HEAD
98580-06010-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
