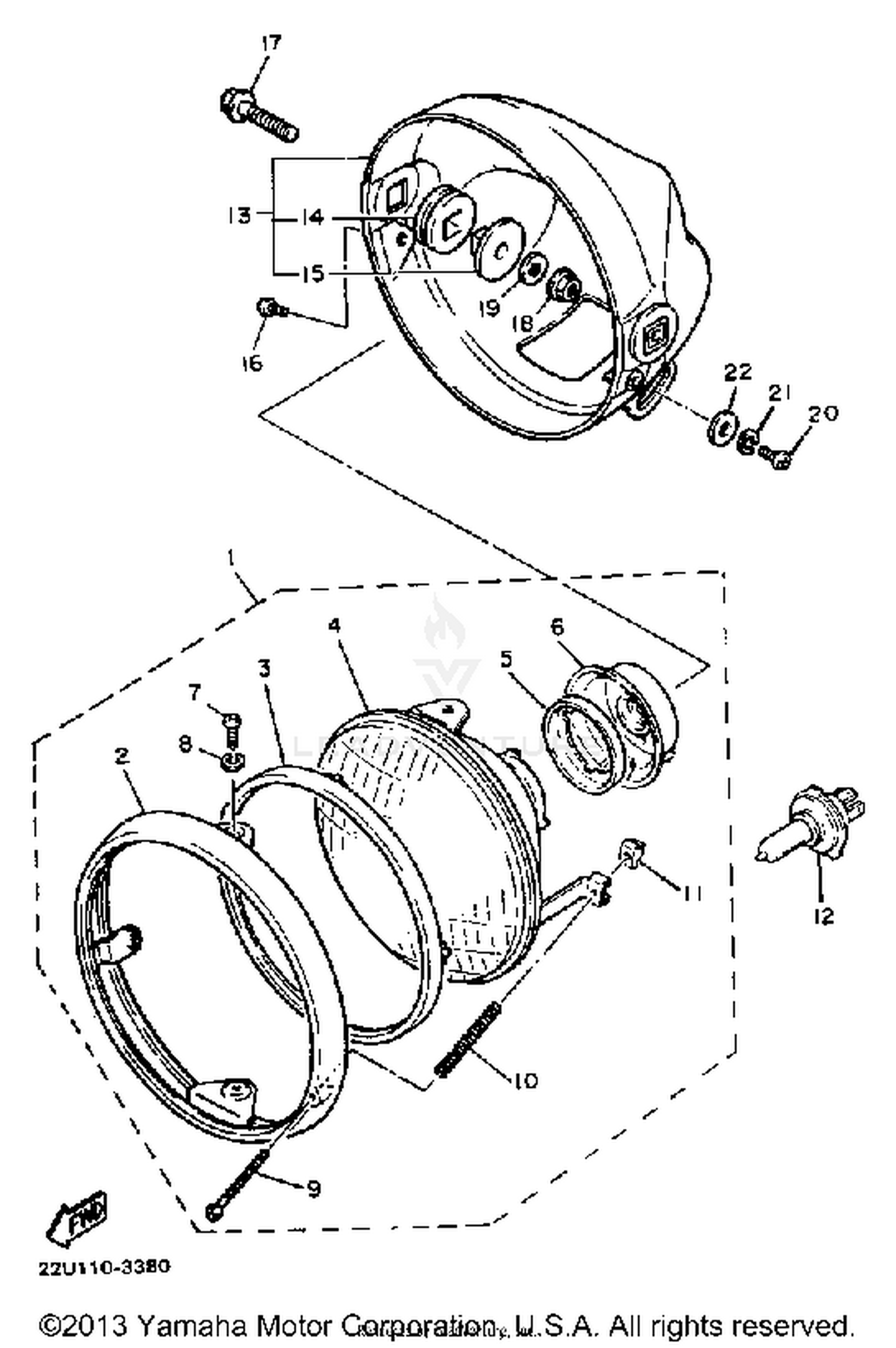

Headlight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEADLIGHT UNIT ASSEMBLY
4X7-84303-A0-00
|
$107.99 | ||
|
Unavailable |
|||
|
#2
RIM, HEADLIGHT
4X7-84315-00-00
|
$76.99 | ||
|
Unavailable |
|||
|
#3
RING, RETAINING
4X7-84395-00-00
|
$53.99 | ||
|
Unavailable |
|||
|
#4
LENS, HEADLIGHT
4X7-84321-A0-00
|
$185.99 | ||
|
Unavailable |
|||
|
#5
SETTING PLATE, BULB
2F9-84375-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER, SOCKET
2F9-84397-01-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, PAN HEAD
98580-05010-00
Superseded by 97885-05010-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW, ADJUSTING
90157-04001-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, SCREW
1A0-84332-60-00
Superseded by 447-84332-60-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, ADJUSTING
198-84334-60-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BULB, HEADLIGHT (12V-60/55W)
5V2-84314-00-XX
Superseded by 8V0-84314-10-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BODY ASSEMBLY
22U-84330-00-00
|
$120.99 | ||
|
Unavailable |
|||
|
#14
GROMMET, WRHRNES
5G0-84153-20-00
|
$7.88 | ||
|
Unavailable |
|||
|
#15
COLLAR, BODY FTNG
584-84338-60-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, PAN HEAD
98580-05012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE
90105-08174-00
Superseded by 95027-08030-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, FLANGE
95701-08500-00
Superseded by 95704-08500-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER
90209-08098-00
Superseded by 90209-08008-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, PAN HEAD
98503-06014-00
Superseded by 98507-06014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, PLATE
90201-065F3-00
Superseded by 90201-06020-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
