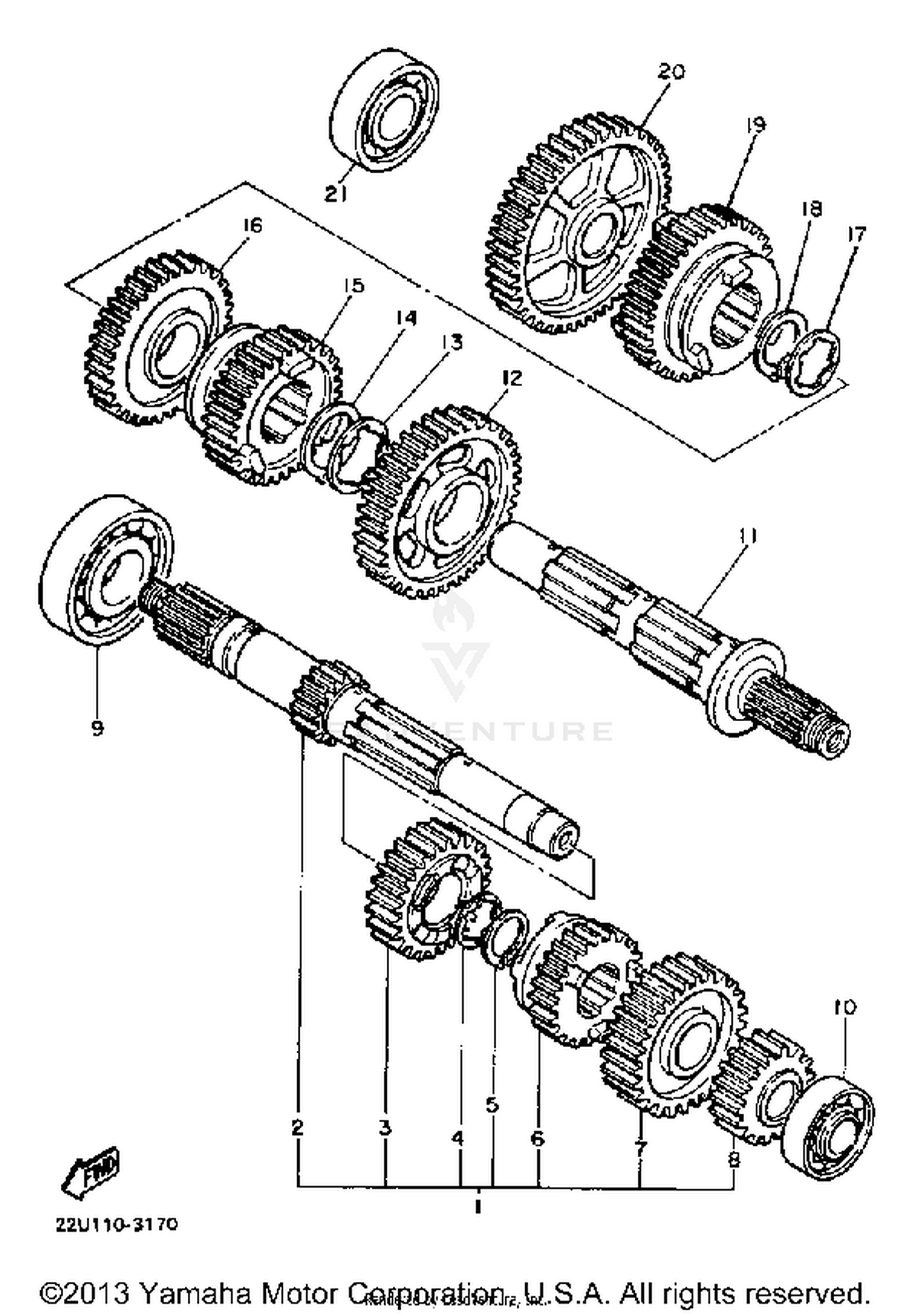

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MAIN AXLE
22U-17410-00-00
|
$84.59 | ||
|
Unavailable |
|||
|
#2
AXLE,MAIN
22U-17411-00-00
Superseded by 99999-03117-00
|
$174.99 | ||
|
Unavailable |
|||
|
#3
GEAR, 4TH PINION (24T)
22U-17141-00-00
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER
90209-22191-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
CIRCLIP
93440-25084-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR, 3RD PINION (24T)
22U-17131-00-00
|
$75.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
GEAR, 5TH PINION (30T)
11H-17151-01-00
Superseded by 4VR-17151-01-00
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
GEAR, 2ND PINION (20T)
11H-17121-00-00
Superseded by 4KU-17121-00-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING
93306-30525-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BEARING
93306-00426-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
DRIVE AXLE ASSY
22U-17402-00-00
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
GEAR, 2ND WHEEL (38T)
22U-17221-00-00
Superseded by 4KU-17221-00-00
|
$85.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER
90209-27192-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
CIRCLIP
93440-30077-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
GEAR, 5TH WHEEL (29T)
11H-17251-00-00
Superseded by 4VR-17251-01-00
|
$76.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
GEAR, 3RD WHEEL (35T
22U-17231-00-00
Superseded by 4KU-17231-00-00
|
$68.99 | ||
|
Unavailable |
|||
|
#17
WASHER
90209-22191-00
|
$6.49 | ||
|
Unavailable |
|||
|
#18
CIRCLIP
93440-25084-00
|
$5.49 | ||
|
Unavailable |
|||
|
#19
GEAR, 4TH WHEEL (28T)
22U-17241-00-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
GEAR, 1ST WHEEL (38T)
22U-17211-00-00
|
$101.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BEARING
93306-00428-00
Superseded by 93306-00427-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
